Nice HySecurity SlideSmart HD - Rear Installation

REAR INSTALLATION
A rear installation requires additional idler wheels and gate brackets, but it provides aesthetics as the
chain is not visible along the gate. See Figure 6.

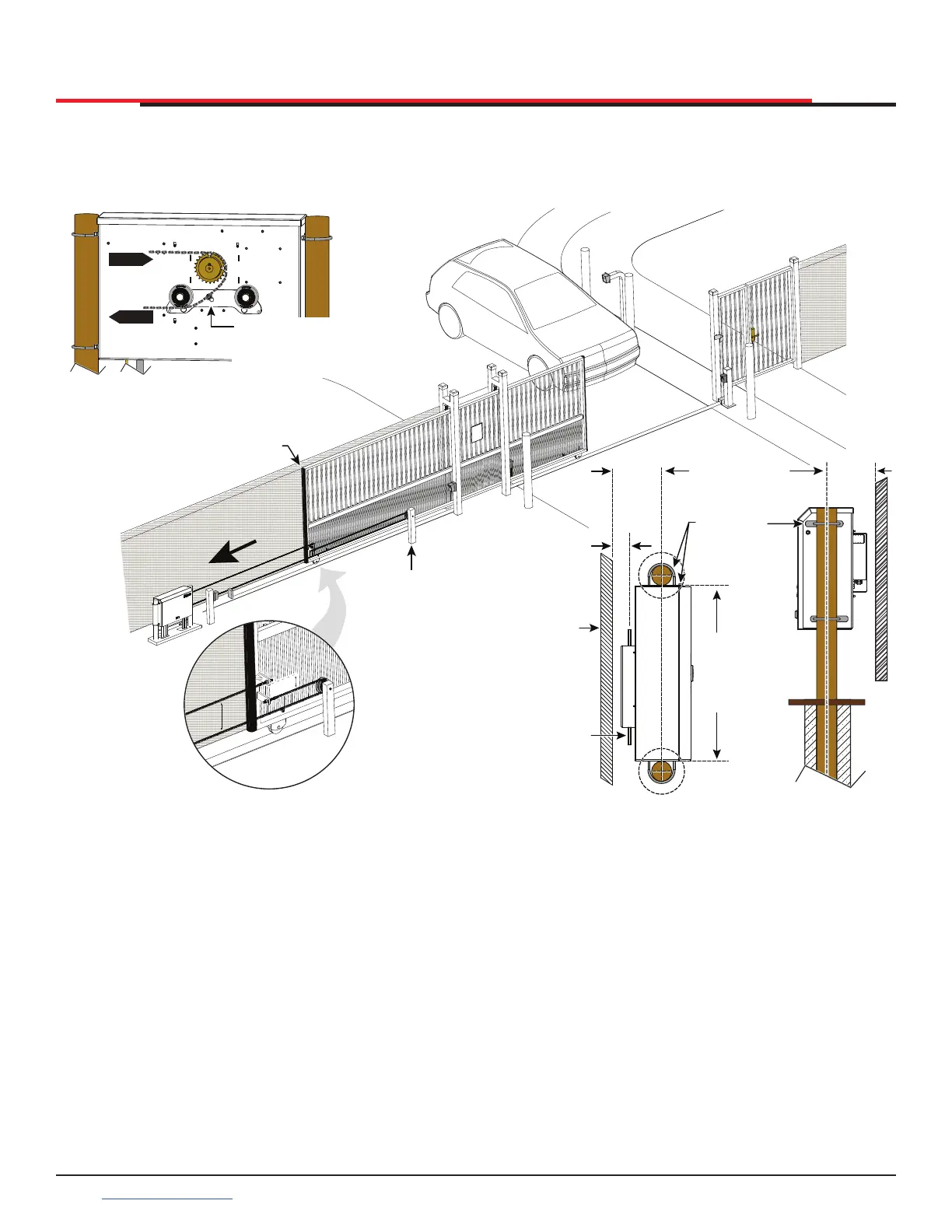

Figure 6. Rear Installation


8"
5"
Idler Post
Position post to maintain
a minimum distance of
1 foot (31 cm) from the end
of the gate when
gate is fully closed.







OPEN
OPEN
Chain motion
Target magnet position
between idler wheel and
sprocketwhen gate is
fully closed.
CENTER OF POST
TO FACE OF GATE
3” (7.62 cm)
CHAIN TO
GATE
Chassis side cover
plates slotted
allowing for U-bolts
fitting a 3 - 3.5"
(7.62 - 8.89 cm)
OD post.
30.5”
(77.47 cm)
MINIMUM
DISTANCE
BETWEEN
POSTS
CHAIN
GATE
TOP VIEW SIDE VIEW
7.5”
(19.05 cm)
7.5”
(19.05 cm)
INSTALLATION
