PARTING GATE SYSTEMS
Configuring two operators to be a Primary
and Secondary pair is easy with the Smart DC
Controller. There is no need to order a special
model or any adapters. The area of the board
marked Dual Gate employs a 3-wire RS-485 serial
port for communication between primary and
secondary operators. See Figure 56.
POWER REQUIREMENTS
When installing a dual-operator system, the
following must be adhered to:
An electrical conduit for interconnecting wires
must span between the two operators. The dual
gate communication wires and any low voltage
control wires must be installed in a conduit that
is separate from the high voltage power wires.
See Figure 57.
Complete the installation of both operators as
separate machines and verify that their basic
functions are correct as solo operators before
interconnecting them.
External control inputs, vehicle detectors
and entrapment protection sensors may be
connected to either gate operator without
regard to preference.
Be sure both operators are running the same
software version. The software version is
available on the display by pressing the RESET
button on the operator. The software version
appears beneath the word HYSECURITY. Keep
the most current software loaded. It is available
at www.hysecurity.com. Make it part of your
maintenance routine to check for software
upgrades on a regular basis.
Both operators can be connected to the same
20A circuit breaker in the main panel. The wire
size affects operator performance. Use the
following chart as a guideline to size wire for
the given distance from the power source to
BOTH operators.
Table 14. Power Requirements
AC Power 14 gauge wire 12 gauge wire 10 gauge wire
One operator 115V 730 ft (223 m) 1200 ft (366 m) 1900 ft (579 m)
Two operators 115V 460 ft (140 m) 750 ft (228 m) 1160 ft (354 m)
One operator 230V 2095 ft (639 m) 3350 ft (1021 m) 5300 ft (1615 m)
Two operators 230V 1465 ft (446 m) 2350 ft (716 m) 3750 ft (1143 m)

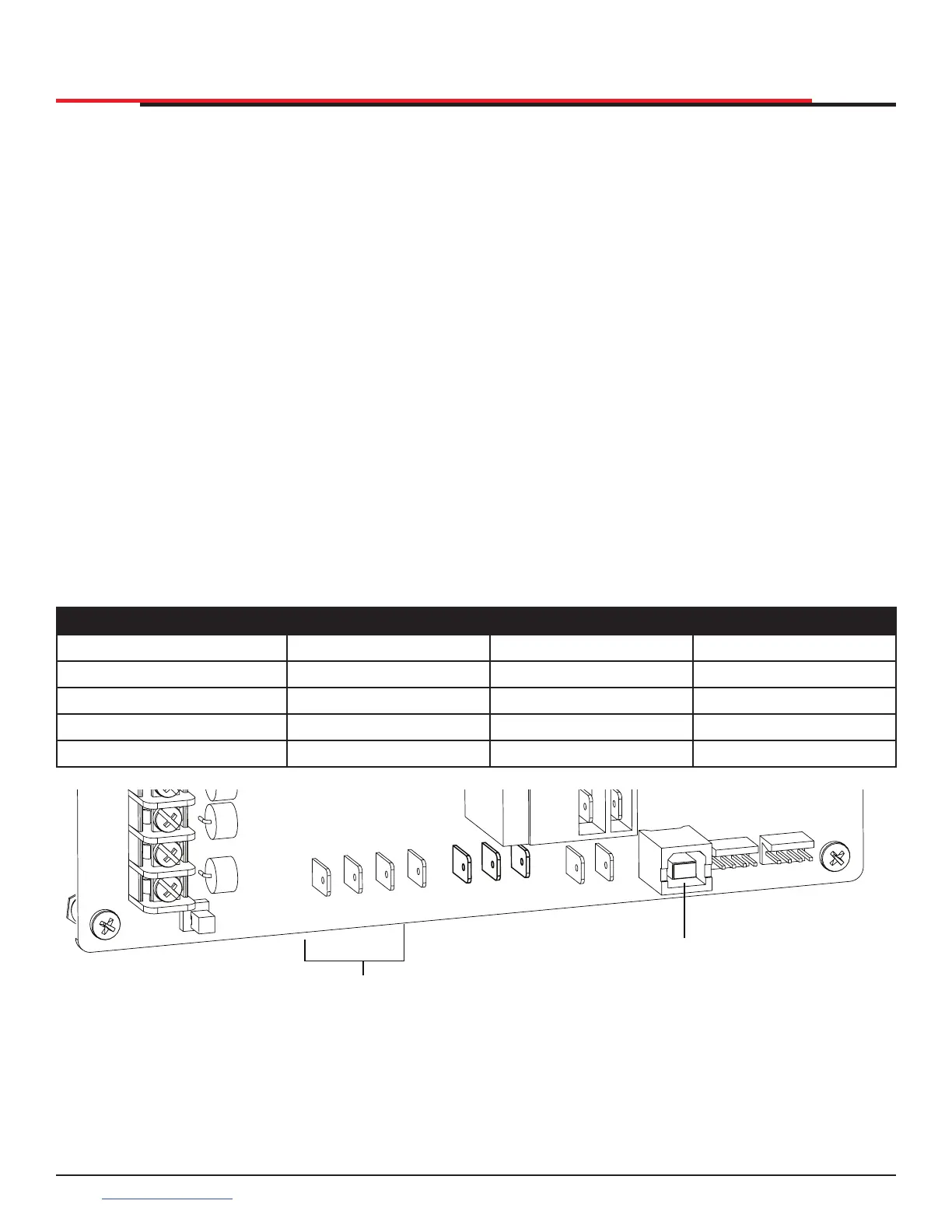

Figure 56. Primary-Secondary Pair
SENSOR
COM
+ 24 V
EMERG
OPEN
SHOW
LEDs
Connection for Primary/Secondary pair
USB Port
COM
DUAL GATE
RADIO OPTIONS
A
B
COM
OPEN
+24V
S1
COM
NO
USER2
DC ONLY
RS485
RS485
