SMART DC CONTROLLER
MANUAL PUSH BUTTON STATION
A manual push button station controls the gate operator and opens, stops, and closes the gate. It is most
often used by a guard in a 24-hour guard station. An example of the push button station connections
on SlideSmart is shown in Figure 55.

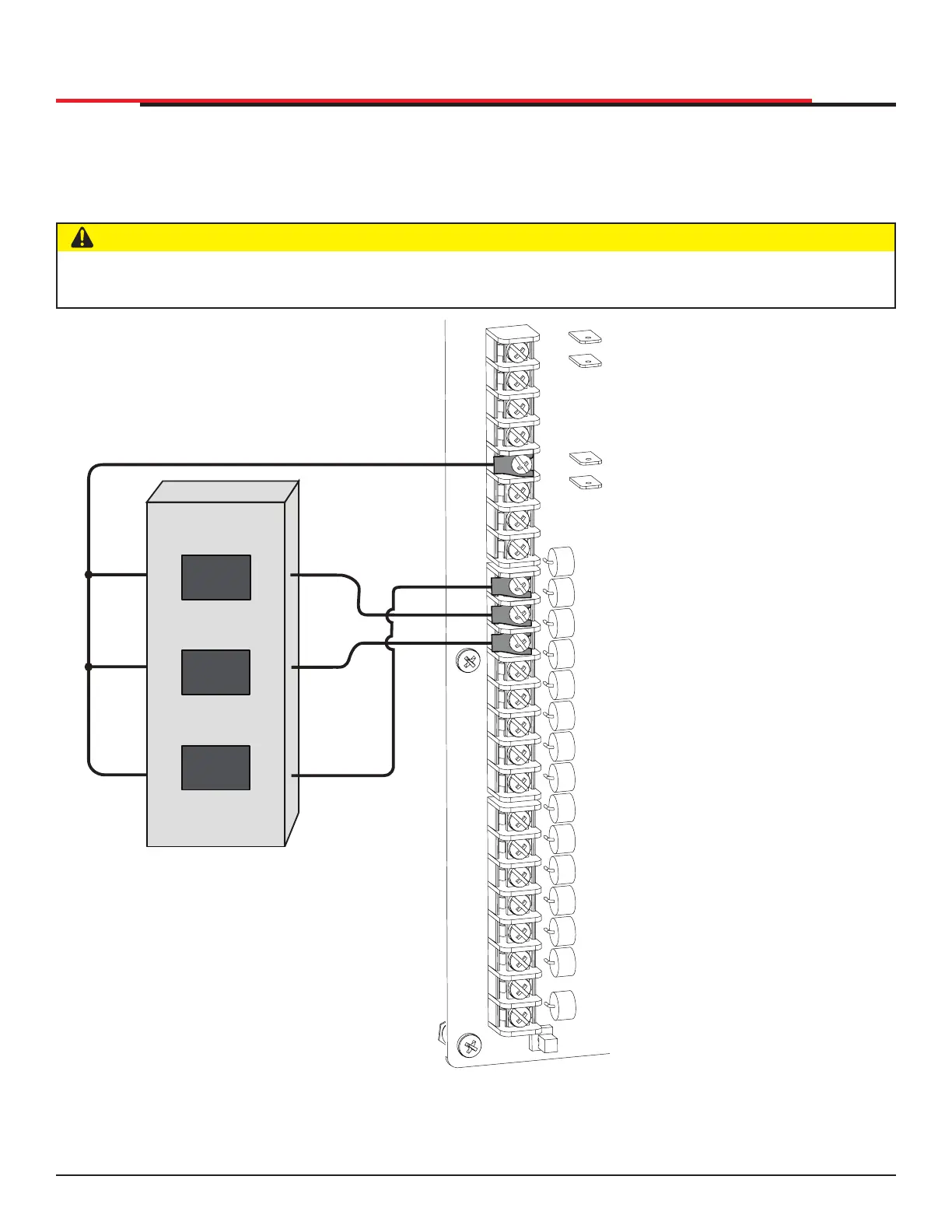

Figure 55. Manual Push Button Station Connection
CAUTION
Make sure the manual push button station is within site of the gate, a distance (six foot minimum)
away from the gate’s moving parts, and out of reach of children.
COM
COM
COM
COM
COM
COM
COM
COM
STOP
OPEN
RADIO
CLOSE
OPEN
OPEN
PARTIAL
SENSOR
2
SENSOR
3
SENSOR
3
EXIT
LOOP
BLOCK
EXIT
IN OBS
LOOP
OUT OBS
LOOP
CENTER
LOOP
SENSOR
COM
+ 24 V
EMERG
OPEN
SHOW
LEDs
24VDC
24VDC
12VDC
12VDC
OPEN
STOP
CLOSE
Push Buon Staon
NC
NO
NO
