FRONT INSTALLATION

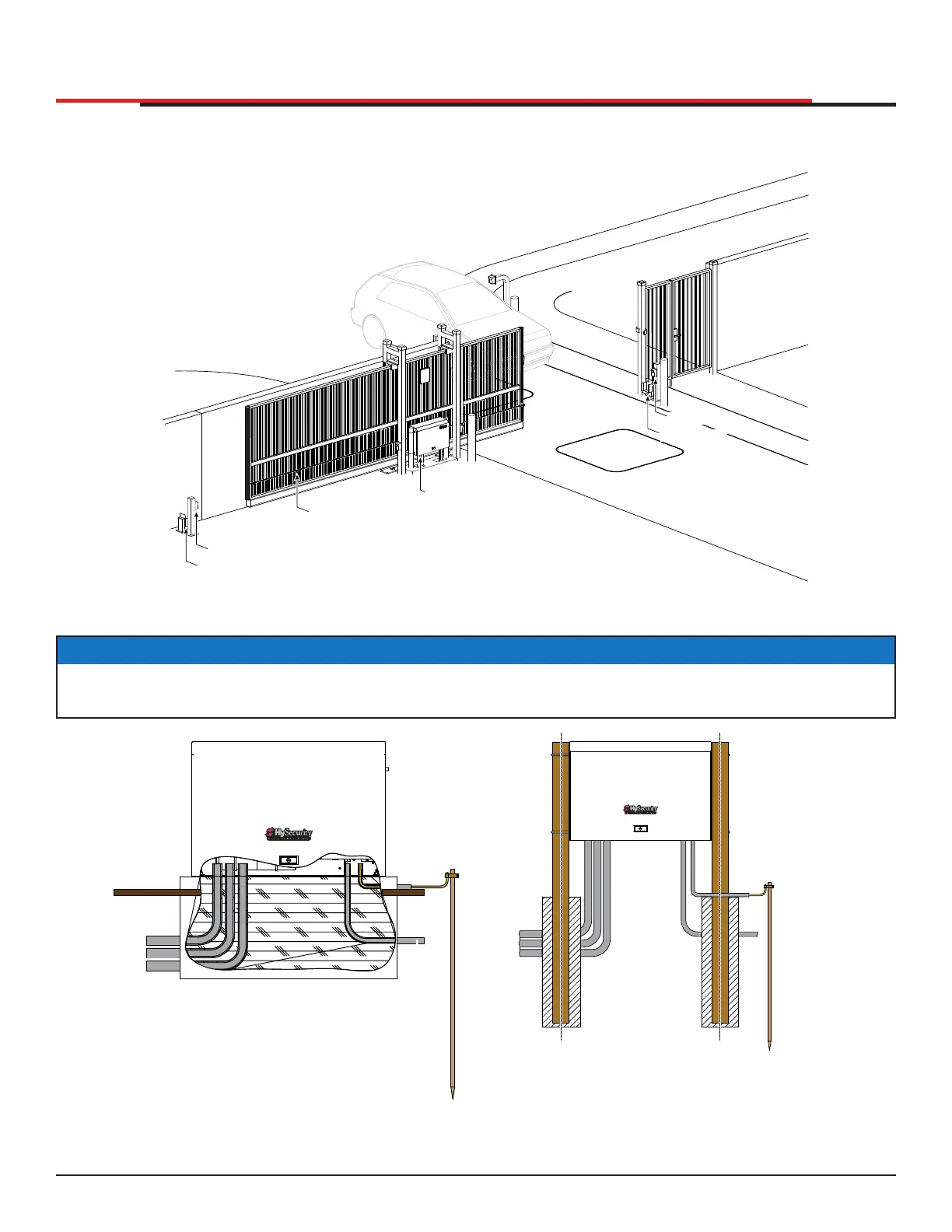

The most common and cost efcient type of installation is the front installation. See Figure 4 and Figure 5.
Figure 4. Front Installation
Figure 5. Pad and Post Mount
Chain Bracket
Physical stop
Photo eye
SlideSmartHD
Public Side
Secure Side
Physical stop
Photo Eye
NOTICE
Several different ways to mount the SlideSmart operator exists. A few are shown here. For more
detailed drawings, refer to "Appendix A - Installation Congurations" on page 111.
Pad Mounted Post Mounted
INSTALLATION
