SAFETY REQUIREMENTS
hysecurity.com | 800-321-9947 Page 1 of 2

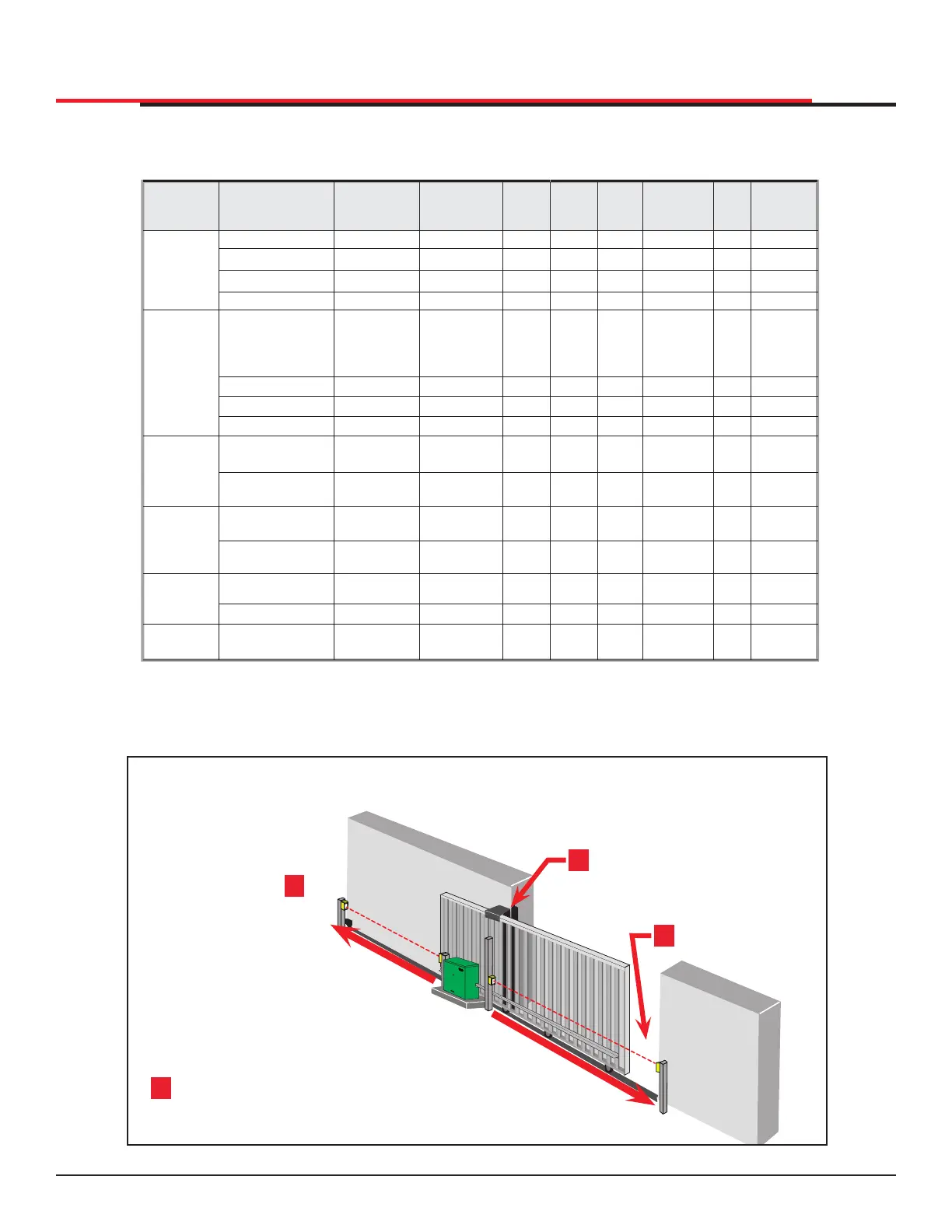

Nice | HySecurity Recommended Sensors Control Boards
Mfg. Part # or
Model
Brand
Nice |
Hysecurity
Part #
Max
Range
Smart
Touch
Smart
DC
SmartCNX 1050
Mercury
310
Photo Eyes
(Retro
-refl ective)
E3K-R10K4-NR-1 Omron MX000999 40 ft • • •
NIR-50-325 EMX - 45 ft • • • • •
IRB-RET EMX - 53 ft • • • • •
E-931-S50RRGQ Seco-Larm - 46 ft • • • •
Photo Eyes
(Thru-Beam)
Blue Bus
Era Photo Eyes
Nice |
HySecurity
EPMB/A
EPMOB/A
EPLOB/A
EPMAB/A
EMBORB/A 45 ft • • •
OVS-50TNR Optex - 33 ft • •
IRB-MON EMX MX3990 65 ft • • • •
E-960-D90GQ Seco-Larm - 90 ft • • • •
Edge
Sensors
Sentir Series ASO Safety
"AS1502-*
AS1501-*" • • • • •
CPT210-2U-#-T2 Miller Edge - • • • • •
Edge Sensor
Converters
Hy2NC (Converts 10K
to NC Monitoring) HySecurity MX4018 • •
GEM103 (Converts 10K
to Pulsed Monitoring) Miller Edge - •
Edge
Wireless
Kits
iGAZE RE Kit
Transmitter
Solutions - • • • • •
WEL-200 EMX - • • • • •
Multi-Input
Module
The Solution – MIM-62 Miller Edge - • • • •
UL 325 Standard:
• The operator shall monitor for the presence of every device at least once during each open and close cycle (32.1.8)
• It shall not be possible to make simple modi cations in the eld by adding, suppressing or changing, either on the operator or external
entrapment protection device(s), to bypass, interfere with, or otherwise defeat the monitoring function. (32.1.10)
• Entrapment zones are now de ned for each gate type (4.23, 4.24, 4.29, 4.34)
Slide Gates: To enable fully automatic operation, all SLIDE gate operators will require a minimum of TWO monitored external
entrapment protection sensors (one for each direction) to protect entrapment zones in both the open and close direction of travel.
Preferred solution for slide gates: A photo eye for the close direction and a hard-wired edge sensor for the open direction that
is mounted to the face of the leading post of the fence behind the gate. (Reach through injuries are the most common hazard
associated with automatic sliding gates)
Swing Gates: To enable fully automatic operation, all SWING gate operators will require a minimum of ONE monitored external
entrapment protection sensor to protect entrapment zones in either the open or close direction of travel. However, an additional
monitored sensor is required if there is a risk of entrapment in both directions of gate travel.
Preferred solution for swing gates: A photo eye for the close direction and/or a hard-wired wraparound edge sensor on the leading
edge of the gate, which protects for both directions of gate travel.
The following sensors have been tested with Nice | HySecurity gate operators by an
independent laboratory and certi ed to comply with UL 325 7th Edition. Select sensors from this
list for UL compliant gate automation solutions. Contact the sensor manufacturer for speci c
recommendations for use.
Recommended External Entrapment
Protection Sensors List
325
Installers must assess each specifi c site and
install sensors that protect all potential entrapment zones.
For more information visit Safety or see latest operator manuals at
support.hysecurity.com
Protects open direction
(EDGE OPEN)
1
A
Install Edge for
Draw-in Zone
Trailing End
Leading End
PUBLIC
SECURE
2
Install Photo eye
Protects Leading End
(EYE CLOSE)
Slide Gate
Common
Entrapment
Zones
Indicates Additional Potential Entrapment Zone
A
SlideSmart HD Programming and Operations
1111
MX4435 Rev.G ©2022
