M2000 TS Description

1-4 Manual # 42-02-1P28 A3

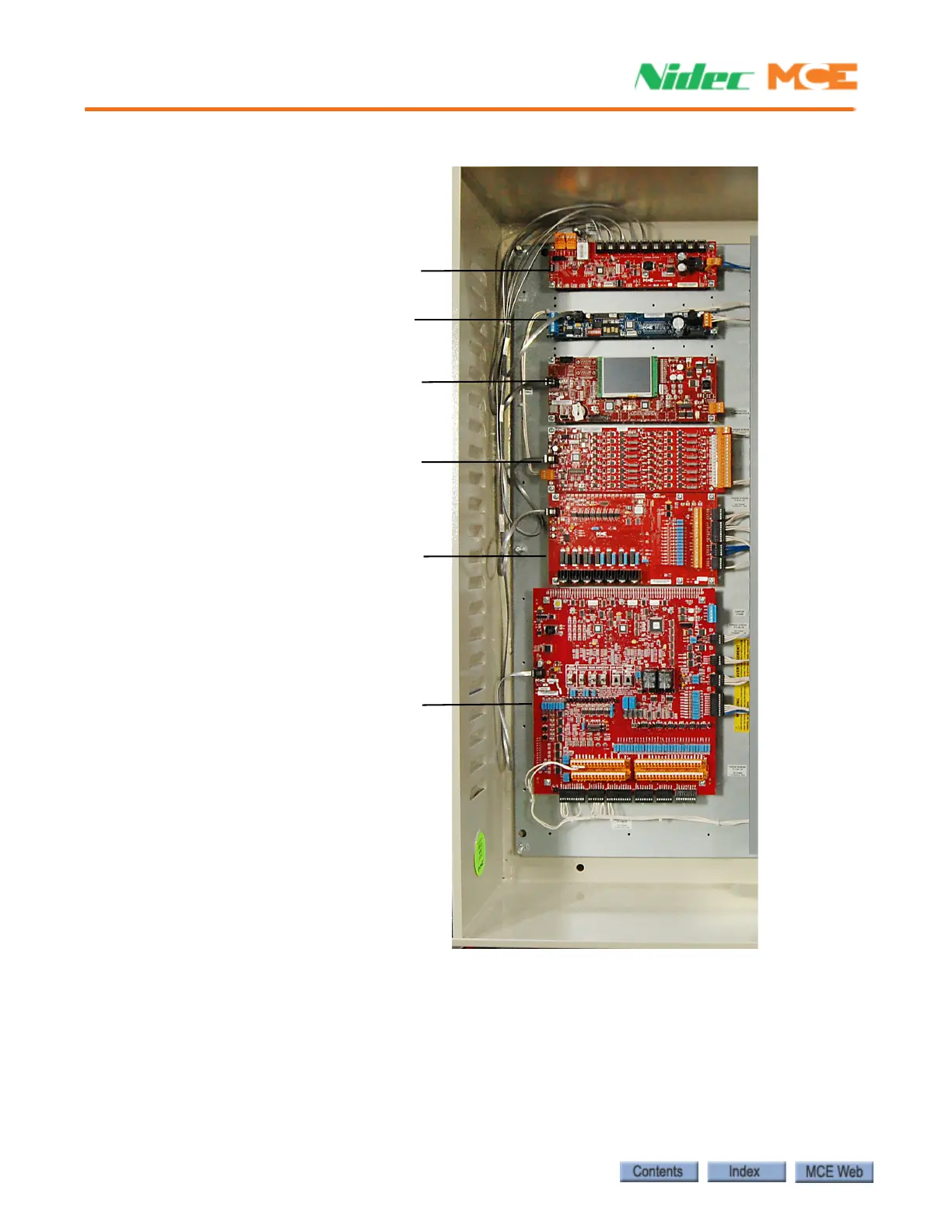

Figure 1.1 Typical Board Complement (Layout varies)

HC-DVR Driver Board

HC-CTL-2 Control Board

HC-UIO-2 Universal

Input / Output Board

HC-CHP CAN Hub/

Power Supply

HC-MPU-2-TS Main

Processor Unit

ICE-SF-2 Serial

Fixture Board

Safety Precautions4
Environmental Considerations5
Air Conditioned Equipment Cabinets5
In this Manual6
Table of Contents7
Section 1. M2000 TS Description13
General Information13
Car Controller Description15
Controller Circuit Boards17
MC-CPI-2 Car Panel Interface Board21
Specifications22
Operating Mode Descriptions24
Non-Automatic Modes24
Inspection Operation25
Cartop Inspection25
In Car Inspection25
Hoistway Access Inspection26
Machine Room Inspection26
Construction Operation27
Automatic Modes of Operation27
Test Mode27
Fire Service Operation27
Emergency Medical Service Mode28
CFSS Recall Mode28
CFSS Phase II (In-Car) Mode29
Recall Switch Mode29
Independent Service Mode29
Attendant Mode30
Sabbath Mode30
Capture for Test (Pretest) Mode31
Passenger (Automatic) Mode of Operation31
Operational States31
Earthquake Operational State32
Emergency Power Operational State32
Emergency Dispatch Operational State32
Pit Flood Operational State32
User Interface33
Home Screen33
Mode of Operation33
Faults and Safety34
System Status34
Menu Overview36
Landing System39
LS-EDGE Landing System39
Section 2. Installation41
In this Section41
Safety Precautions42
Personal Safety42
Equipment Safety42
Installation Considerations43
Machine Room Preparation43
Piping and Wiring44
How Electrical Noise Occurs44
How to Avoid Electrical Noise Problems44
Possible EMI/RFI Interference44
Recommended Tools and Test Equipment45
Wiring Prints45
Drawing Number Format45
Nomenclature46
Controller Installation47
Controller Wiring Guidelines47
General Wiring Guidelines48
Proper Grounding Procedures48
Wiring Connections for Properly Grounded Systems48
Ground Wiring48
Main AC Power49
Pump Motor Wiring49
Low Voltage Signal Wiring49
Traveling Cable Wiring49
In this Section51
Check for Shorts to Ground52
Before Applying Power52
Applying Power53
Initial Adjustments and Power Phasing53
Set up for Construction Operation54
Settings and Jumpers54
Temporary Jumpers55
Temporary Run Box Hookup56
Verifying Proper Starter Operation57
Hoistway Control Equipment Installation59
LS-EDGE Installation59
LS-EDGE Tape Installation60
LS-EDGE Top Hanger Assembly60
LS-EDGE Bottom Hanger Assembly61
LS-EDGE Broken Tape Switch62
Hanging the Tape62
LS-EDGE Sensor Installation62
LS-EDGE Door Zone Magnets64
LS-EDGE Terminal Magnets65
LS-EDGE Terminal Magnet Logic67
LS-EDGE Electrical Connection67
Parameter Settings67
Hoistway Learn Operation68
Hoistway Learn (Landing System Learn)68
Construction Learn68
Motion 2000 TS Hydro Adjustment68
Adjusting Floor Heights68
Door Position Monitor Switch (if Used)69
LS-EDGE Short Floors70
Door Zone Verification70
Permanently Attach Magnets70
Complete the Installation and Field Wiring71
Preparing the Car to Run on Test/Normal Mode71
In this Section73
Diagnostic Messages and Input/Output Signals74
Troubleshooting Reference75
System I/O75
System Diagnostics75
CAR, MOTION, GROUP, PLD Diagnostics76
Action Info76
Status Info76
Stats77
Scope77
Test Mode Operation78
Running on Test/Normal Mode79
Final Adjustments on Test Mode80
Hydraulic Valves80
Slowdown and Limit Switches80
Motor/Valve Limit Timer80
Relevel Operation80
Final Adjustments on Independent Service81
Door Operator Adjustments81
Door Open/Close Protection81
Final Adjustments on Normal Operation82
Hall Calls82
Ride and Performance82
Recheck82
Options82
Remote Governor Testing (Roped Hydro)83
Static Testing83
Dynamic Testing83
Final Testing, LS-EDGE Only84
Bottom Terminal Slowdown Limit Tests84
Top Terminal Slowdown Limit Tests84
Stop Ring Test85
Low Oil Condition Testing86
Low Oil Switch in Use86
No Low Oil Switch in Use86
Passcode (Restricted Mode)87
Release to Normal Operation88
Section 5. the Computer89
In this Section89
The HC-MPU-2-TS Main Processor Unit90
Indicators90
Buttons and Adjustment Connectors91
Using the Touch Screen92
Home92
Shortcuts94
Screen Descriptions95
Spare Input and Spare Output Tables113
Troubleshooting Reference125
Bus Voltage Testpoints and Fuse Locations125
Touch Screen Tools126
System I/O126
System Diagnostics126
CAR, MOTION, GROUP, PLD Diagnostics127
Action Info127
Status Info127
Stats128
Scope128
Circuit Board Descriptions128
MC-LSI Landing System Interface Board129
LSI Connections129
SC-3HN Three Input Serial Hall Call Node Board231
Call Bus Conditions231
General Installation231
Addressing and CAN Bus Termination233
Riser Assignment233
Floor Number and Front or Rear Opening233
Baud Rate233
CAN Bus Termination233
On Board Diagnostics234
On Led234
(Flt) Fault Led234
Inventory234
