User Interface
Manual # 42-02-1P28 A3 1-21
User Interface
System status display, configuration, and diagnostics are through the on-board, color, touch-
screen (OBD, On Board Display).
1
No external programming tools are required. You must be on
Inspection mode to change and save parameters. The interface provides:
•Home, page 1-21
• Config 01, 02, and 03, page 1-24
•Utils, page 1-24
• System I/O, page 1-24
• System Diag, page 1-25
•CAR Diag, page 1-25
•MOTION Diag, page 1-25
•GROUP Diag, page 1-25
•PLD Diag, page 1-25
•Action Info, page 1-25
• Status Info, page 1-26
• Stats, page 1-26
•Scope, page 1-26
Home Screen

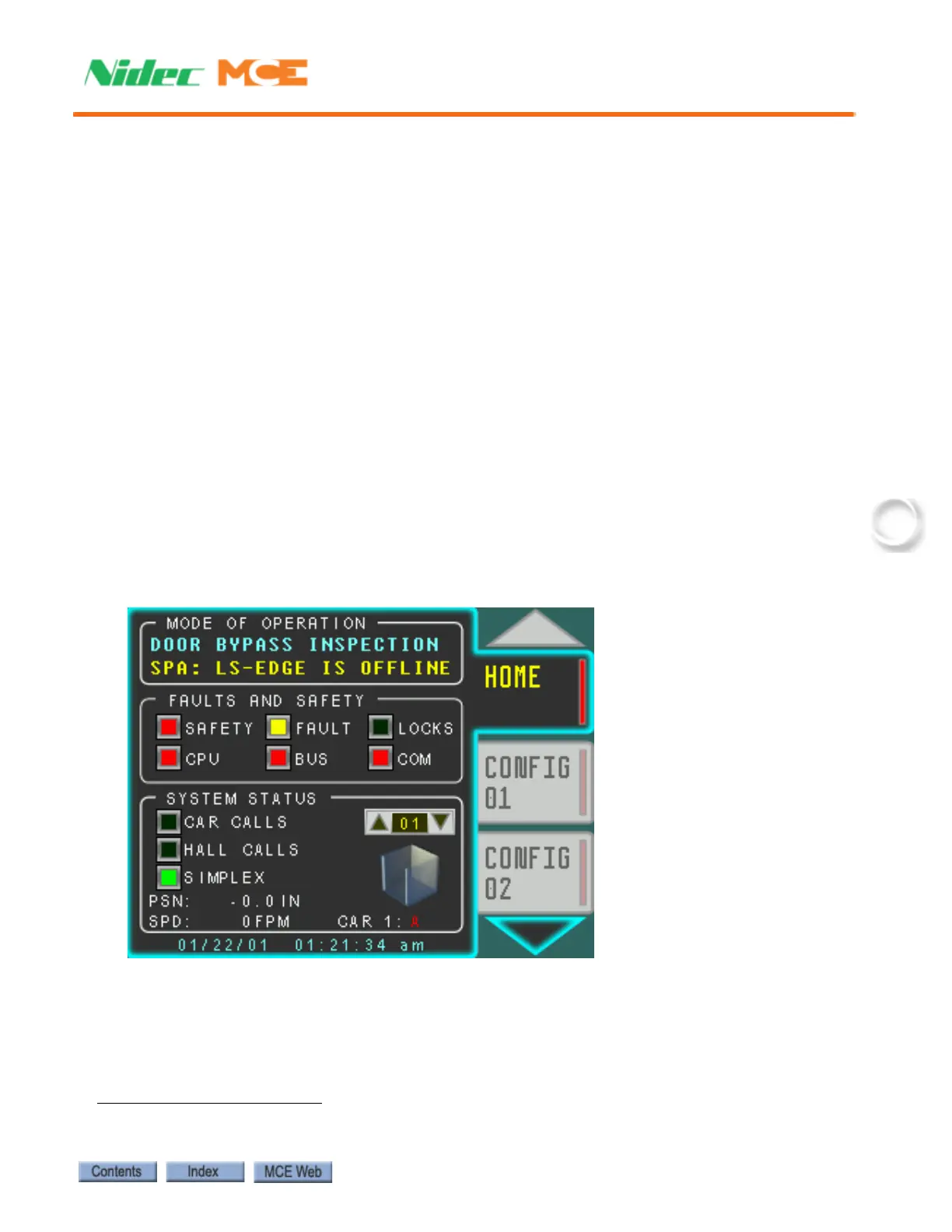

Figure 1.5 Home Screen
Mode of Operation
This screen section lets you know immediately what mode of operation the elevator is currently
using. Typically, this will be Passenger (normal automatic) mode but it may be any of several
1. Web browser access is supported. Parameters may be transferred from controller to controller using a USB drive.
