Car Controller Description
Manual # 42-02-1P28 A3 1-9

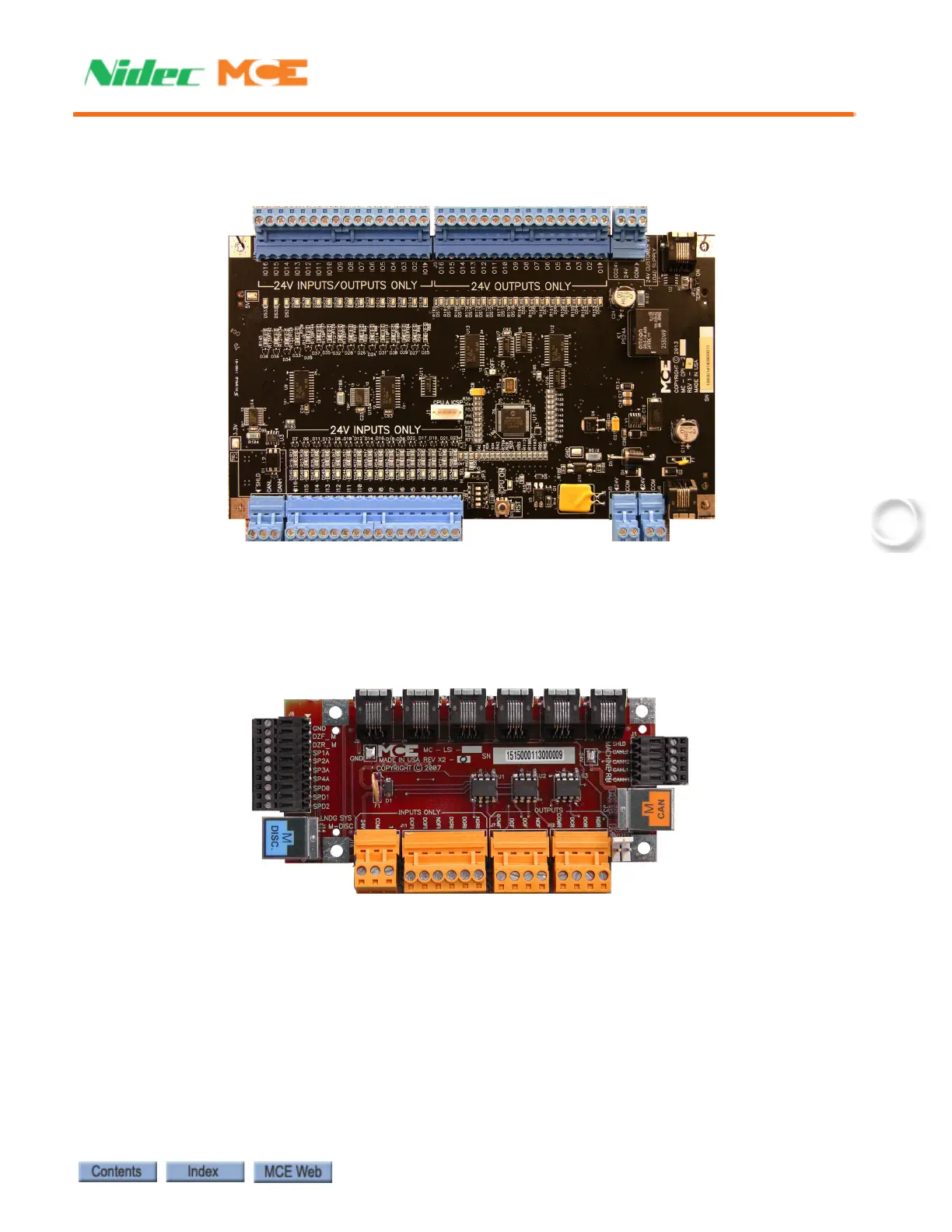

MC-CPI-2 Car Panel Interface Board Converts the Discrete closures from car
panel buttons and switches to CAN data and passes it through the Landing System Interface
board (MC-LSI) to the car controller or dispatcher.
MC-LSI Landing System Interface Board Provides a connection point for the Car
Panel Interface board (MC-CPI-2). A shielded external CAN connection runs from the MC-LSI
board, through the traveler, to the Motion 2000 TS controller (see “Example: MC-CPI-2 Wir-
ing” on page 6-32).
