CHAPTER 5 MAUFACTURER’S INFORMATION
GM 4L70 TRANSMISSION
© 2013 General Motors. All rights reserved
2-4 Servo Cover Seal Replacement
Special Tools
J 29714-A Servo Cover Depressor
Removal Procedure
1.
Raise and suitably support the
vehicle as required. Refer to
manufacturer’s instructions
regarding Lifting and Jacking the
Vehicle.
2.
Remove the 2 heat shield retaining
bolts and the heat shield from the
transmission.
3.
Remove the oil pan bolt below and
to the left of the 2–4 servo cover.
4.

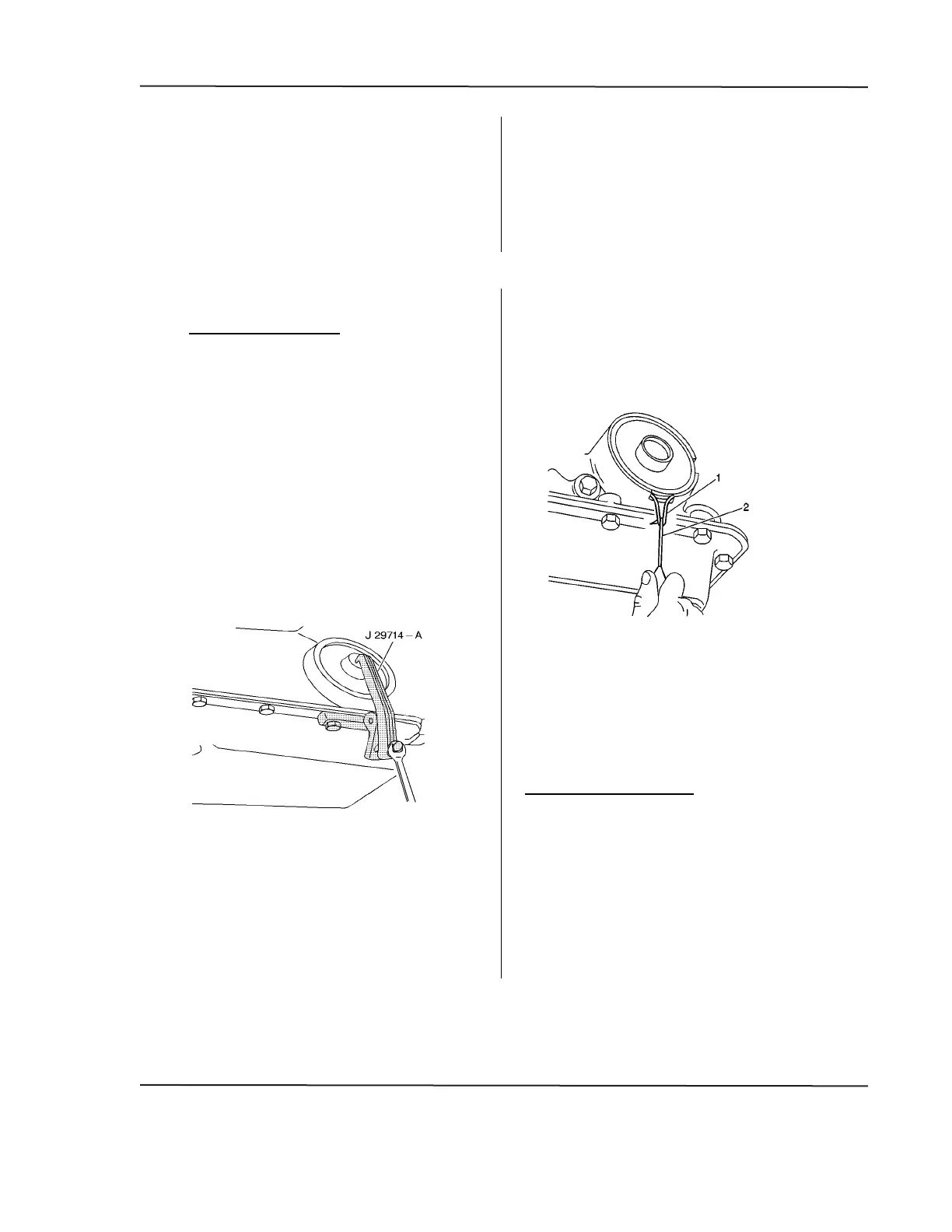

Install the J 29714-A servo cover
depressor to the oil pan rail.
5.
Tighten the bolt on the J 29714-
A servo cover depressor in order to
compress the servo cover.
6.
Loosen the bolt on the J 29714-
A servo cover depressor to release
tension on the servo cover.
7.
Loosen the bolt on the J 29714-
A servo cover depressor to release
tension on the servo cover.
8.
Remove the servo cover and O-ring
seal. If the cover is hung up on the
seal, use a pick (2) to pull and
stretch the seal (1) out of the
groove. Cut and remove the O-ring
seal before removing the cover.
Installation Procedure
