x Do not grind brake linings.
x Do not sand brake linings.
x Do not clean wheel brake parts with a dry brush or with compressed air.
Some models or aftermarket brake parts may contain asbestos fibers which can become
airborne in dust. Breathing dust with asbestos fibers may cause serious bodily harm. Use
a water-dampened cloth in order to remove any dust on brake parts. Equipment is
available commercially in order to perform this washing function. These wet methods
prevent fibers from becoming airborne.
7
.
Remove
caliper assembly
Caution:
Support the brake caliper with heavy mechanic wire, or equivalent, whenever it
is separated from its mount.
8
.

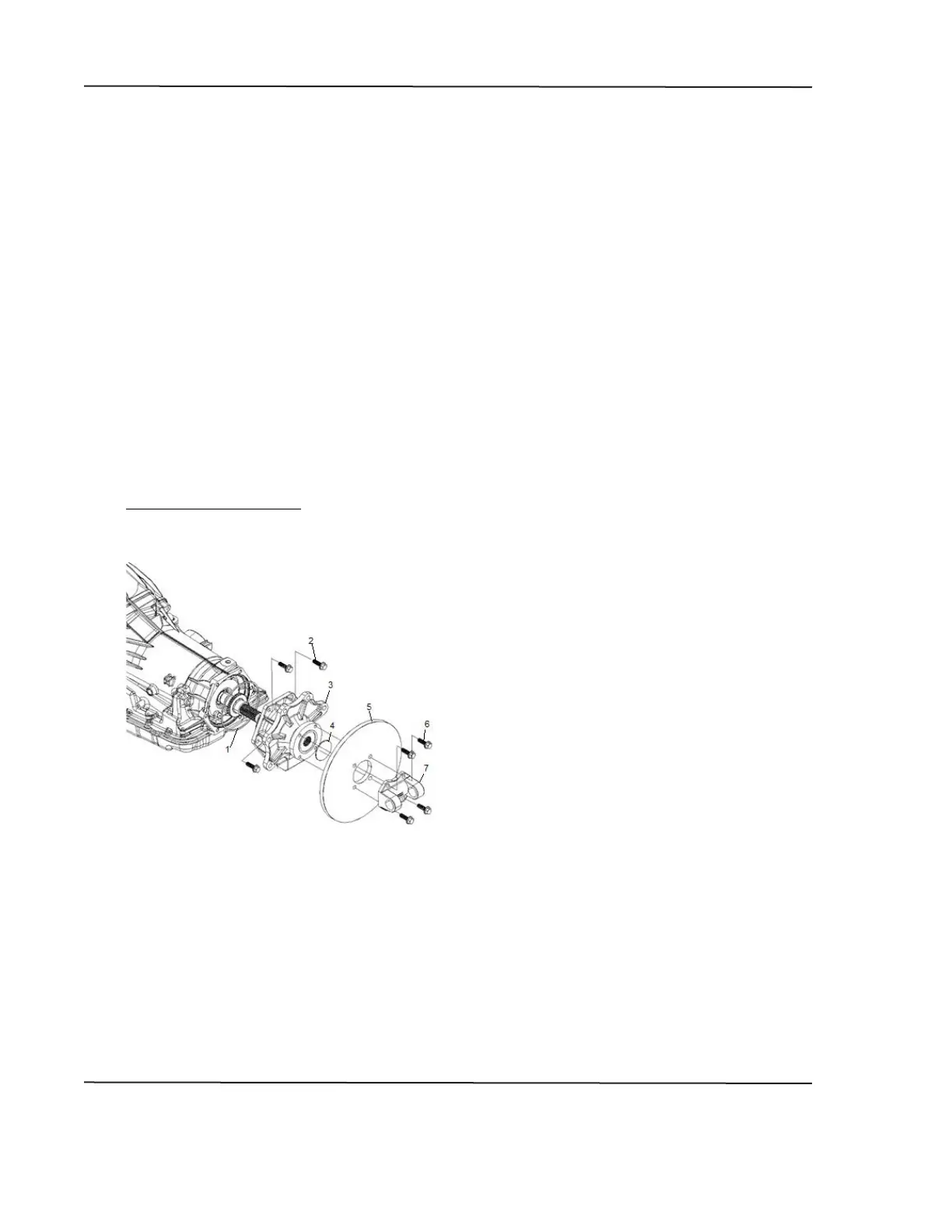

Remove the flange yoke bolts (6), flange yoke (
7
), rotor
(5
), flange cap (
4
)
.
9
.
Remove the case extension bolts (
2
).
10
.
Remove the case extension (
3
).
11
.
Remove and discard the case extension O
-
ring seal
ௗ
(1
).
Installation Procedure
1.
Install a new case extension O
-
ring seal (3).
Caution: Refer to Fastener Caution.
2.
Install the case extension (3
).
Rotate flange as required to align flange and output
shaft splines.
3.
Ins
tall the case extension bolts (2
) and tight
en to
45
ௗ
N
·
m (33
ௗ
lb
ௗ
ft)
.
4
.
Install the
flange cap (4), rotor (5), flange yoke (7).
GM 4L70 TRANSMISSION
