NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M100 Tow Tractor Manual No. 46052
PAGE 29
CHAPTER 2 MAINTENANCE
1 SERVICING
APRIL 15, 2012
Intermediate Band Adjustment
See Figure 5
1. Raise tractor on jack stands or a hoist.
2. Clean dirt from band adjusting screw. Remove and discard locknut.
3. Install a new locknut and tighten adjusting screw to 10 ft-lbs torque.
5. Hold adjusting screw from turning and tighten locknut to 35-40 ft-lbs
6. Lower the tractor.
Neutral Start Switch
The neutral start switch is a safety device that prevents the engine from
starting if the transmission is in any shift position other than NEUTRAL.
Adjusting the Neutral Start Switch
NOTE: The neutral start switch may also be checked by attempting to start
the engine with the gear shift lever in each shift position. This switch is a
combination unit located on the automatic transmission shifter shaft in the
engine package.
1. Remove clevis pin holding shifter arm to cable clevis.
2. Connect a volt-ohm meter (on resistance range) or a continuity tester
across both Red/Blue wires coming out of the switch.
3. Loosen hold-down bolts on switch and rotate switch until contact opens for
the same throw of shifter arm either side of Neutral.
4. Retighten switch bolts and recheck adjustment.
5. Replace clevis pin.

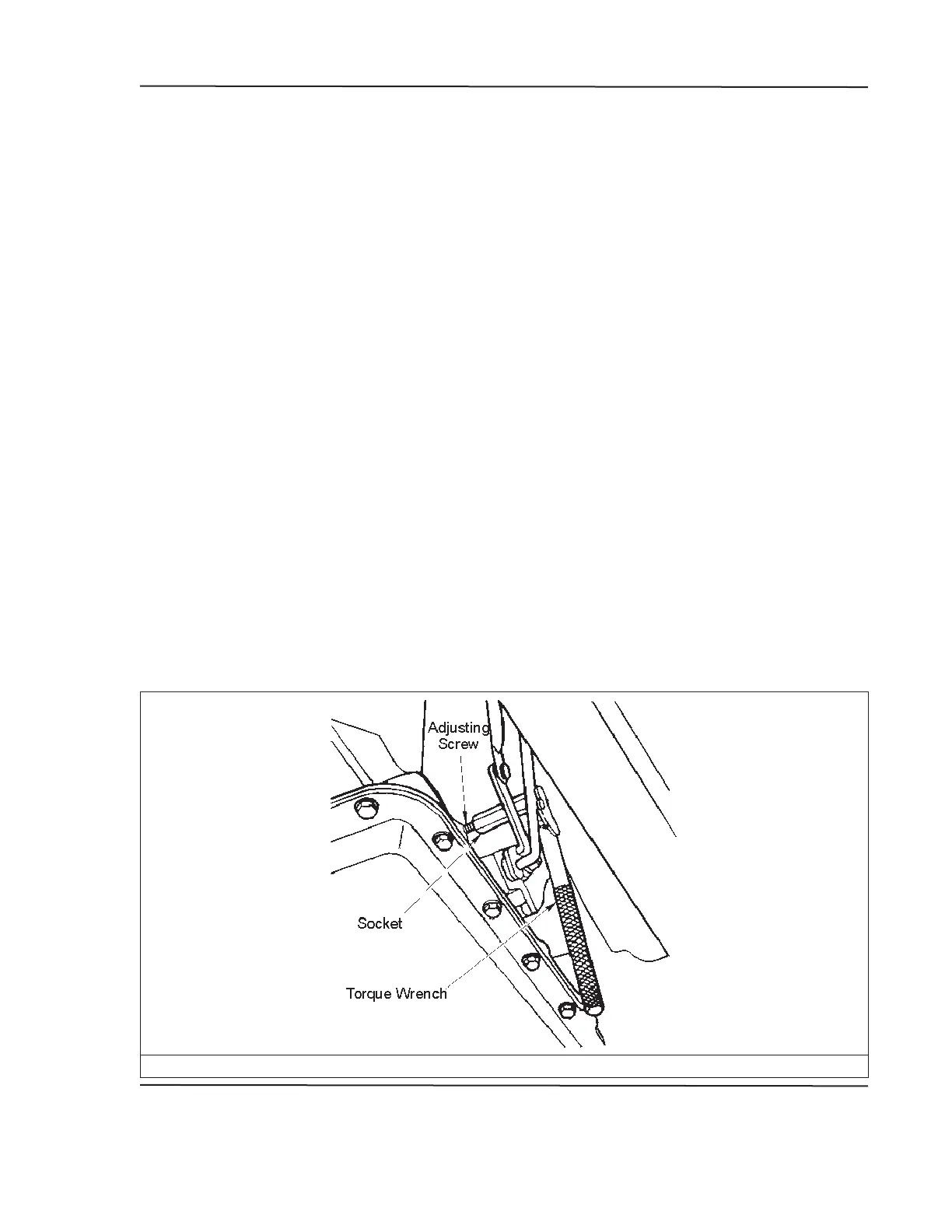

FIGURE 5. ADJUSTING THE INTERMEDIATE BAND - C6
