Step & Repeat X
Click Function
Enables the repeat of the dispensing pattern onto many identical workpieces that are mounted on a xture and
aligned in rows and columns.
Parameter Description (see illustrations below)
X Offset The distance (in mm) between each workpiece in the X direction.
Y Offset The distance (in mm) between each workpiece in the Y direction.
Columns (X) The number of columns in the X direction.
Rows (Y) The number of rows in the Y direction.
1.S Path or
2.N Path
The path of pattern travel. Select “1.S Path” for an S-shaped pattern or “2.N Path” for an
N-shaped pattern.
Label
(default) or
Address
The label or address where the Step & Repeat X command begins.
X Offset
(in mm)
Y Offset
(in mm)
Row (Y)
Column (X)

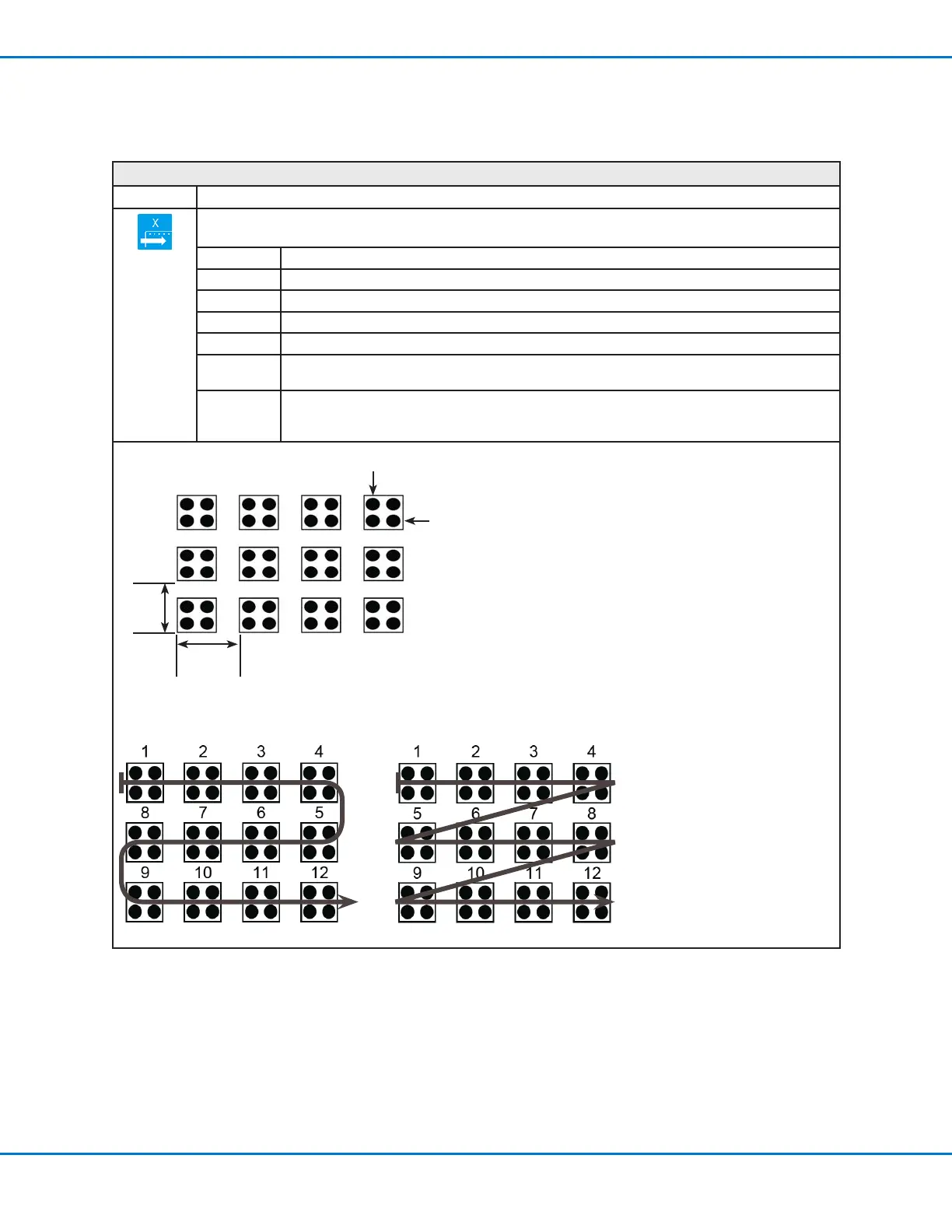

Example of X and Y offsets in a Step & Repeat command
Step & Repeat X, S Path Step & Repeat X, N Path
Difference between the “1.S Path” and “2.N Path” selections
