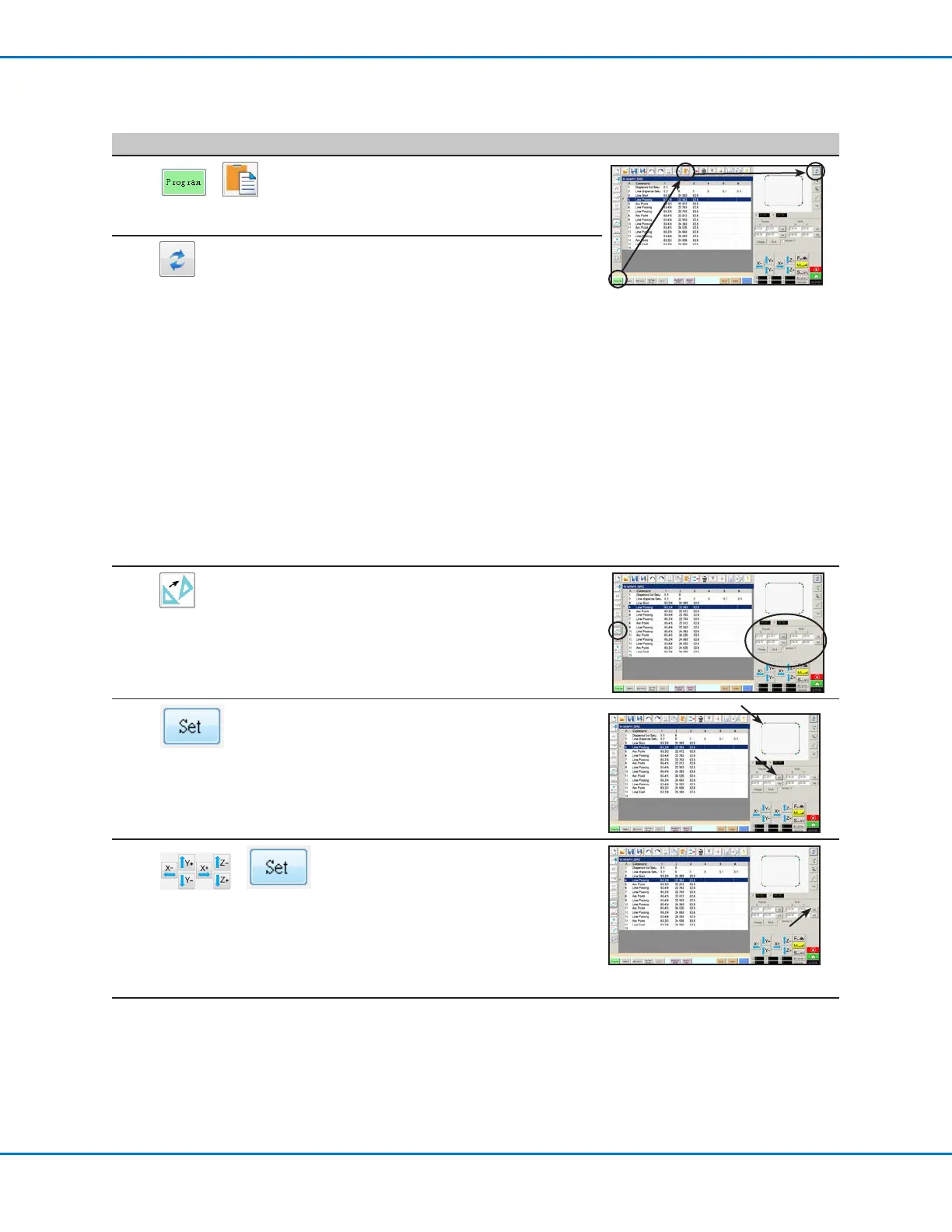

# Click Step Reference Image
6
>
• Click the PROGRAM tab, select an
empty Address line, then click PASTE.
The commands appear in the Program
screen.
7
• Click REFRESH next to the Secondary
View screen to show the imported
points and lines and make changes as
needed to the program.
The next step is to match the program
commands to the actual workpiece.
NOTES:
• After making any change to the
program, click REFRESH to update the
view in the Secondary View screen to
show the changes.
• You may need to zoom out to see the
points. This can be avoided by entering
offset values in the DXF screen Option
window. Refer to Option X, Y under
“Setting DXF Import Preferences” on
page 85.
8
• Click TRANSFORM.
The Program and Table elds appear.
9
• Click on a point at the far left side of the
points shown in the Secondary View
screen, then click the top SET button
under Program.
10
>
• Jog the tip to the same point on the
actual workpiece and then click the top
SET button under Table.
Continued on next page
