Group A
A1 A2
A3 A4
B5 B6
C7 C8
11
Operation
4-43
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Example
1. Select group letter, e.g. Group A.
A different group letter can be selected by repeatedly pressing the group
key.

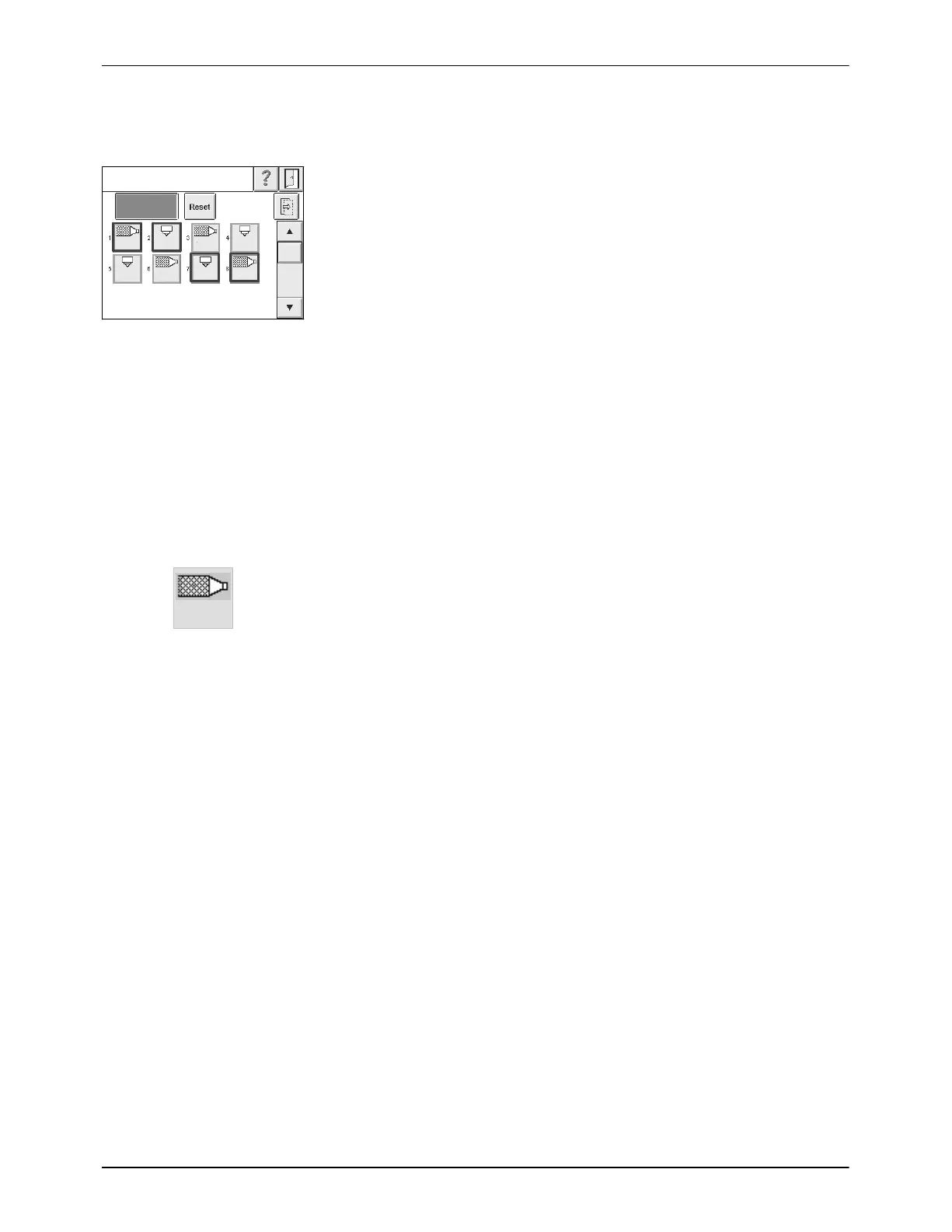

2. Mark channels that are to be included in the group by touching the
respective channel key. In Fig. 4-44 : Channel 1, 2, 7 and 8. The frame
around the key is shown in the color of the group key. The channels are
counted within the group, and the consecutive number (in this case A1
to A4) appears below the channel symbol.
Fig. 4-44 V31
If necessary, the channel symbol (hose, gun, air heater) can be changed
by pressing the channel symbol repeatedly.
3. Repeat steps 1 and 2 for every group.
NOTE: Each channel can be assigned only once. It appears
transparent for all other groups and can not be assigned to another
group until it has been removed from the old group.
Removing a Channel from a Group
1. Select the group from which the channel is to be removed by repeatedly
pressing the group key.
2. Touch the channel key repeatedly until the colored frame around the key
and the group letter under the channel symbol disappear. Refer
to Fig. 4-45.
Fig. 4-45 No group
The channel can now be assigned to another group. Refer to Defining
Groups, Example.
Dissolving Group with Reset Key
When this key is touched, all groups are dissolved and the channel symbols
are reset. However, the PID parameters remain unchanged.
