Single and multiple floor deployment 77

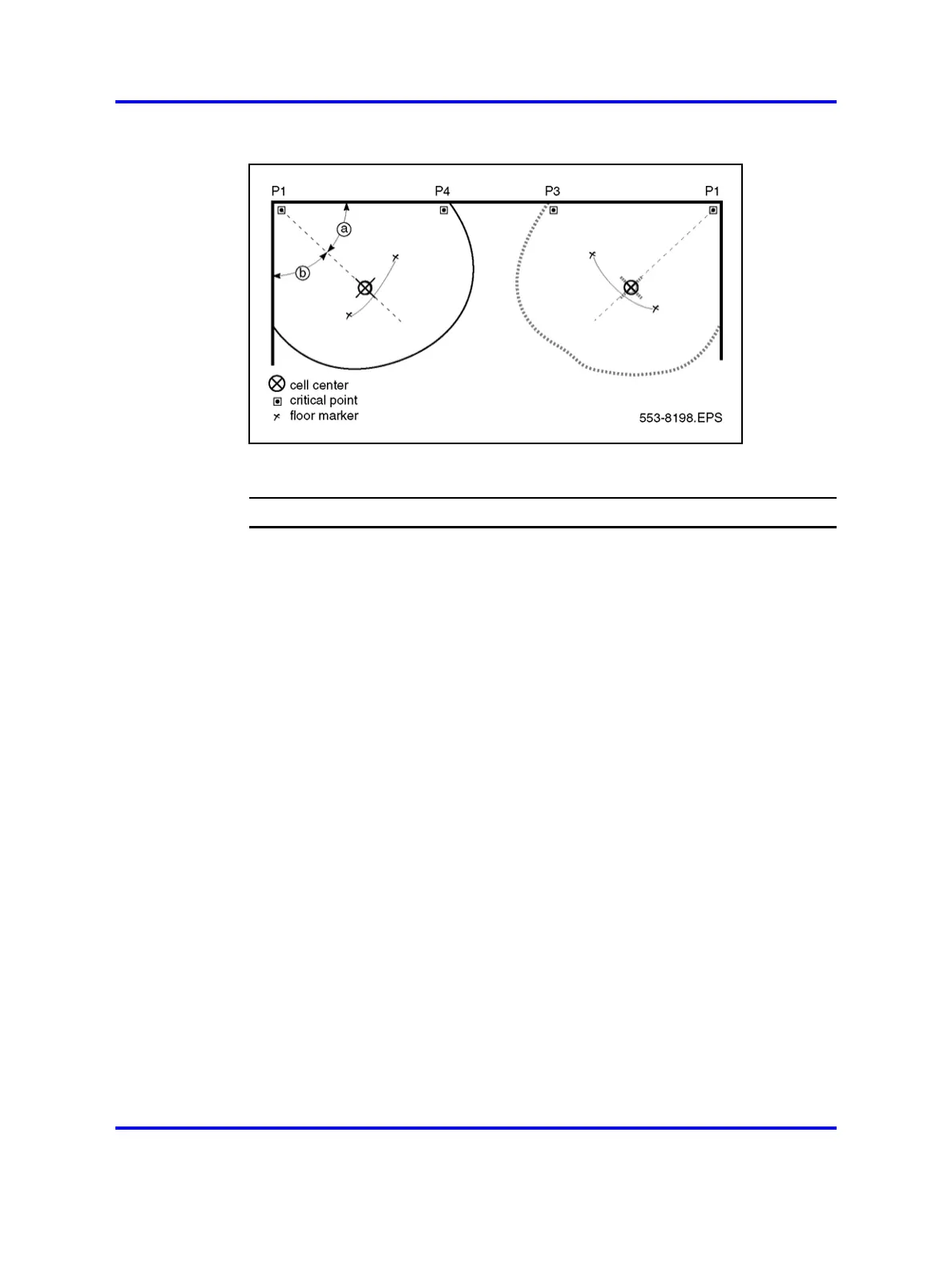

Figure 45
Multi-cell distance
Procedure 16
Multi-cell deployment
Step Action
1 Choose a position on the floor plan for the cell center that meets
the following requirements.
a is furthest from the critical points and still provides good audio
quality at the critical point,
b complies with the “Rules and guidelines to locate cell centers”
(page 35), and
c is in the coverage area.
2 Place the deployment tool at critical point P1.
3 Establish a link.
4 Walk briskly into the coverage area away from the critical point
until the cell boundary is reached.
5 Mark a small X on the floor plan where the cell boundary is
found.
6 Repeat step 4 and 5 several times, walking in different directions
from the critical point to establish an arc. The arc is at the cell
boundary and is within range of the critical point.
7 Draw a thin contour line to mark an arc through the Xs on the
floor plan.
8 Repeat steps 4 through 7 walking into the coverage area of
critical point P2.
9 Locate the cell center on the arc along a line from the critical
point that is equal distant from the adjacent walls.
