Whenyouhavefinishedaligningalloftheheads,thefollowingscreen
isdisplayed.

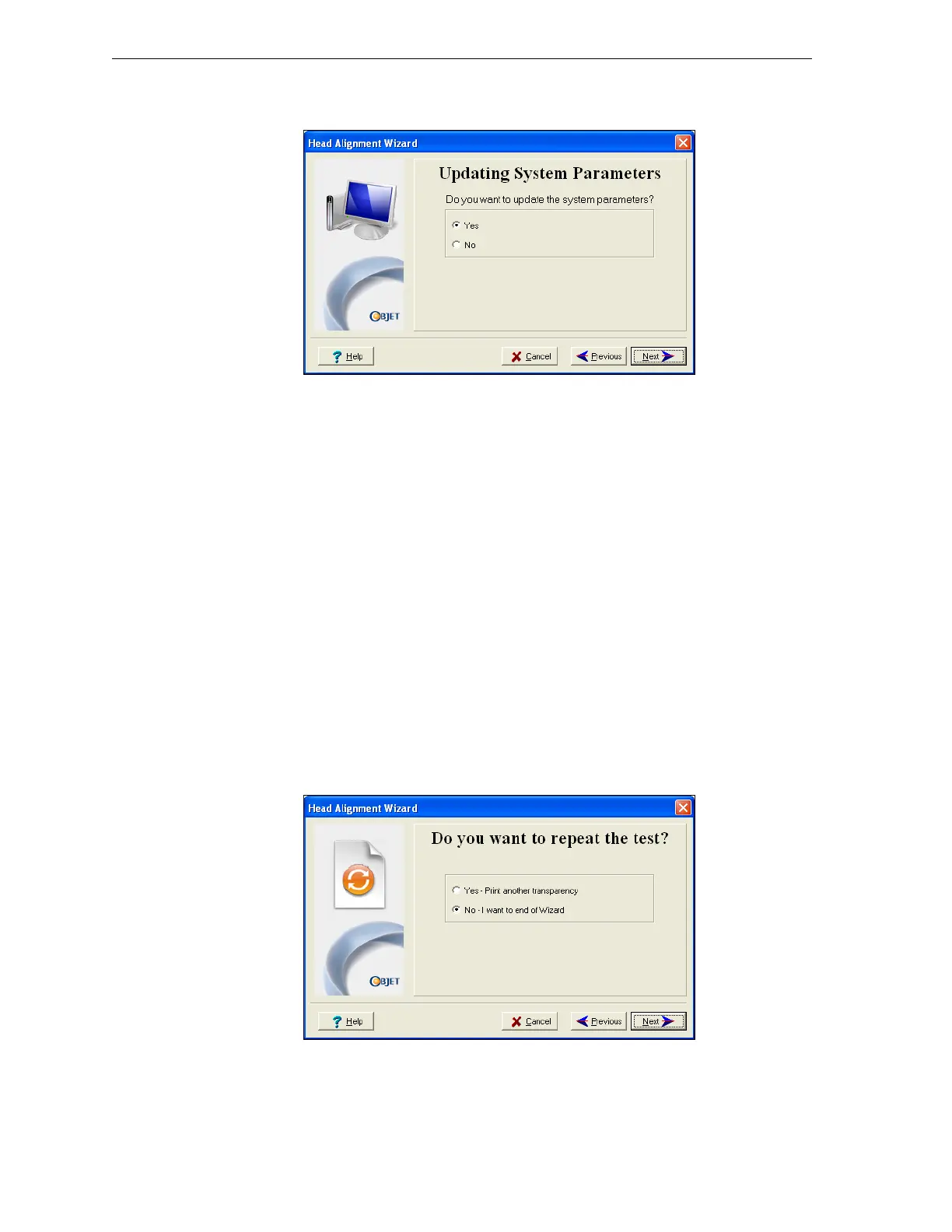

Figure 7-33: Updating System Parameters confirmation screen
13. Chooseoneofthefollowingtocontinue:
• Tomakethealignmentchangesintheprinter,makesurethatYesis
selected,andclick
Next.
• Torecheckthealignmenttestresultsbeforemakingthealignment
changesintheprinter,click
Previous.
• Ifyoudonotwanttomakealignmentchangesintheprinteratthis
time,selectNoandclick
Next.
14. Inthefinalwizardscreen,choosetoeitherrepeattheheadalignment
procedureorclosethewizard.
• Ifthemostcloselyalignedverticallinesforaprintheadwereat
eitherextreme—thefirstorseventhlines—chooseYe storunthe
head‐alignmentwizardagain,thenclick
Next.
Thetransparencytestwillshowiftheheadsarenowproperly
aligned,and—ifnot—thewizardwillallowyouto“finetune”the
alignment.
• Iftheverticallinesfortheprintheadswerenotalignedateither
extreme,chooseNotoclosethewizard,thenclick
Next.
Figure 7-34: Final head alignment screen
