Fig.123-GAUGDV3ALT
NOTE: When operating in Digital Gauge Mode,
the Depth range is extended to 660 FT (200 M).
DV3 MAIN, information includes (Fig. 122) -
> Up Arrow icon, flashing
> Current Depth, 3 dashes ( - - - ) flashing, with FT (or M) icon
> Graphic EDT with Elapsed Dive Time (hr:min)
> Graphic ATR with Time (min) when 60 min or less with Time
(clock) icon, blank if no TMT
> Graphic TMT1 (or 2 or 3), one in use
> Pressure with PSI (or BAR) and Link icons, if Rcvr and TMT
are active, flashing when Link is lost
> VARI while ascending
• A (< 2 sec) to access ALT
• S (< 2 sec) to acknowledge alarm
• S (2 sec) to access Compass
• L (closure) to activate Backlight

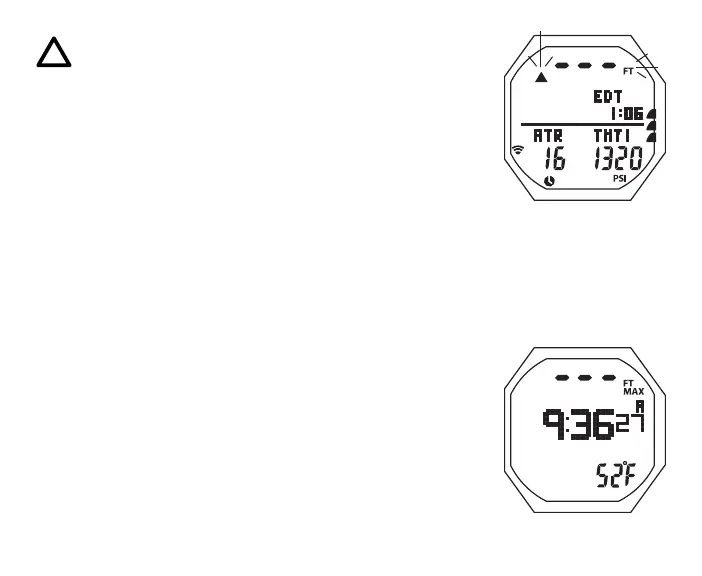

DV3 Alt, information includes (Fig. 123) -
> Max Depth, 3 dashes ( - - - ), with MAX and FT (or M) icons
> Time of Day (hr:min sec), with A (or P) if 12 Hour
> Temperature with ° icon and graphic F (or C)
• 5 sec or A (< 2 sec), revert to Main
Fig.122-GAUGDV3MAIN
