Oceanic OC1 - Decompression

99
Fig.85-SAFETYSTOP
ALT2
Fig.86-DECOENTRY
• A (< 2 sec) to access ALT 2
• Revert to Main in 5 sec, if A not pressed

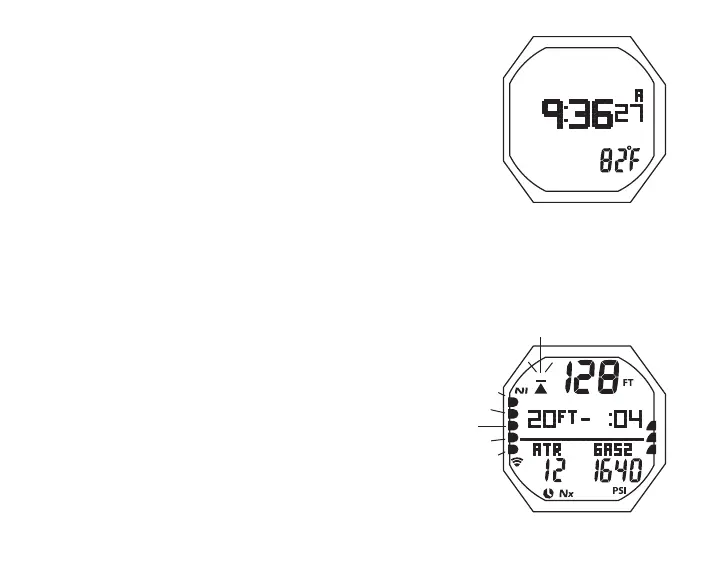

Safety Stop Alt 2, information includes (Fig. 85) -
> Time of Day (hr:min sec), with A (or P) if 12 Hour
> Temperature with ° icon and graphic F (or C)
• 5 sec or A (< 2 sec), revert to Main
DECOMPRESSION MODE
Decompression mode activates when theoretical No Decompres-
sion time and depth limits are exceeded.
Upon Entry into Deco, the Audible will sound and the red LED
will flash. The full TLBG and Up Arrow icon will flash (Fig. 86),
until the Audible is silenced.
• S (< 2 sec) to silence Audible
> Up Arrow icon flashes if 10 FT (3 M) deeper than the
required Stop Depth.
> Once within 10 FT (3 M) of and below the required Stop
Depth (Stop Zone), the full Stop icon (both Arrows with
Stop Bar) will be displayed solid.
• L (closure) to activate the Backlight
