42615101TH Rev.8
113 /
Oki Data CONFIDENTIAL
8

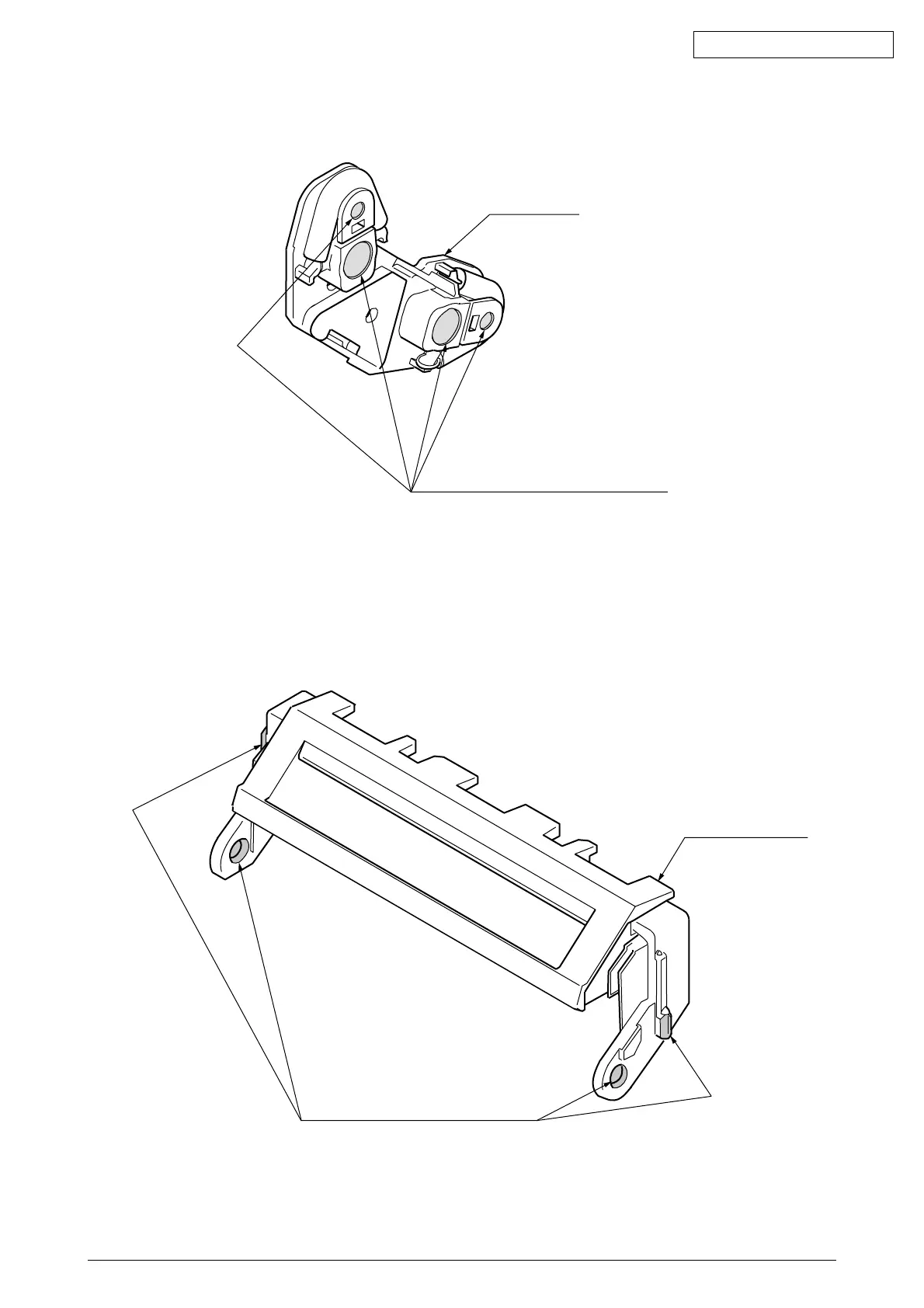

42071901 Holder Assy.-Regist-R
Holder-Regist-R
EM-30L Class C
Apply a nor
mal amount of Molycoat(EM-30L)
to the hatched areas
9
42087001 Cassette-Assy
F
rame-Separation-Assy
Fulcrum of rotation and side Class C
The application of grease protruding ov
er
on the paper carriage surface is not permitted
The standard amount of Molycoat(EM-30L) should be applied to
the shaded por
tions shown in the figure below bef
ore assembly
.
112
114
