42615101TH Rev.8 114 /
Oki Data CONFIDENTIAL

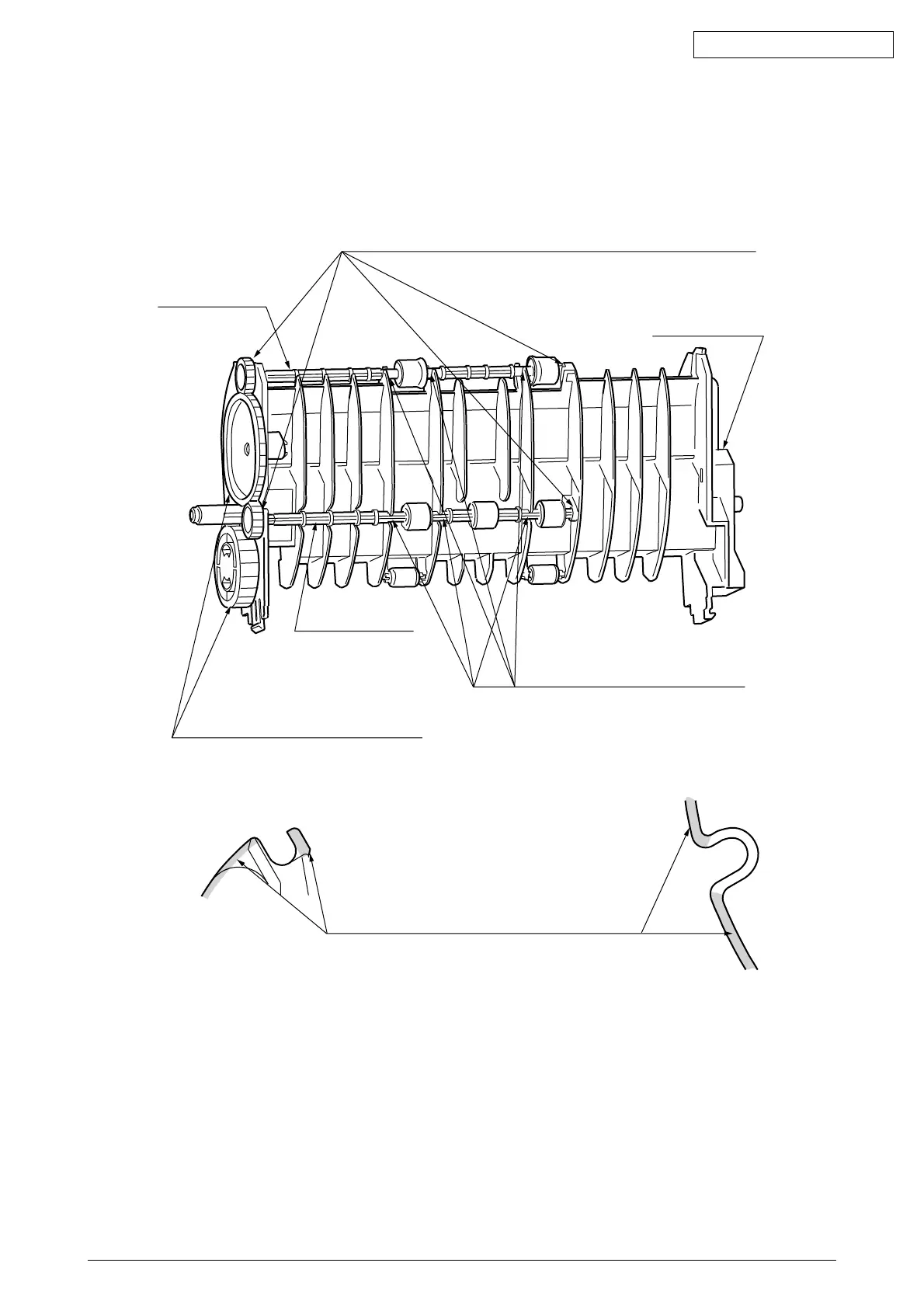

0 42064301 Guide-Assy.-Eject-U
Shaft-Assy.-Eject(FD)
Guide-Eject-Upper
Shaft-Assy.-Eject(FU)
EM-30L Class C
Apply a normal amount of Molycoat(EM-30L) to the surface of gear teeth, shaft,
and the flange portions.(8 places) No Molycoat at the paper running face.
EM-30L Class C
Grease is not applied to this hatching portion.
Apply a normal amount of Molycoat(EM-30L)
to the surface of post.
EM-30L Class A
Portion Y Portion X
Detail X Detail Y
Apply a small amount of Molycoat(EM-30L)
to the surface of shaft.(6 places)
No Molycoat at the paper running face.
To Next Page
