42615101TH Rev.8
116 /
Oki Data CONFIDENTIAL
C
-1

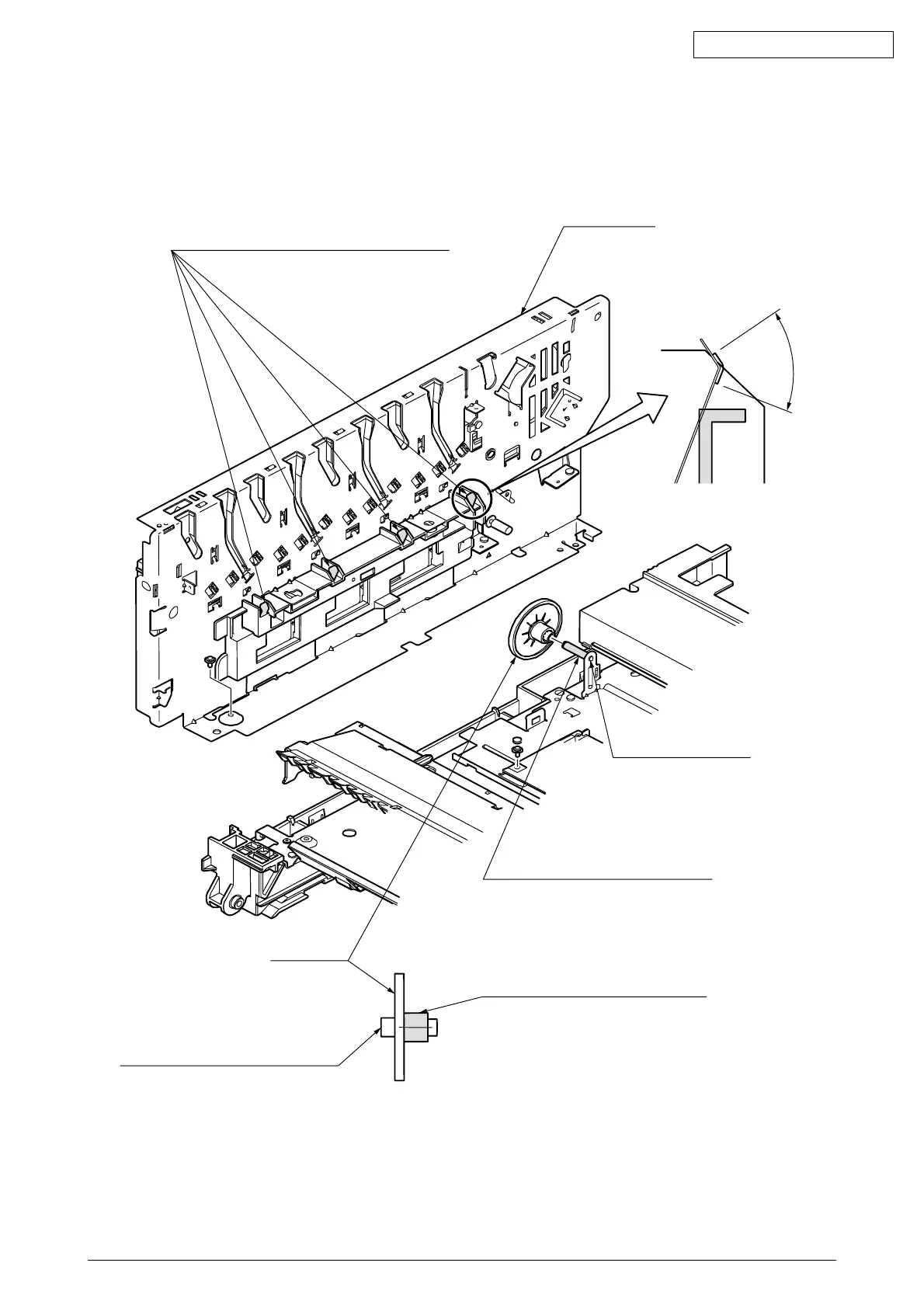

42621701 Printer-Unit-PX724
Plate-Ass.-Side-L
Plate-Driver-PU(Caulking)
Gear-Idle-Belt
EM-30L Class C
Apply a nor
mal amount of Molycoat(EM-30L)(4 por
tions)
EM-30L Class C
Apply a nor
mal amount of Molycoat(EM-30L)
EM-30L Class C
Apply a nor
mal amount of Molycoat(EM-30L)
EM-30L Class C
Apply a nor
mal amount of Molycoat(EM-30L)
Apply areas to grease(4 points)
115
117
