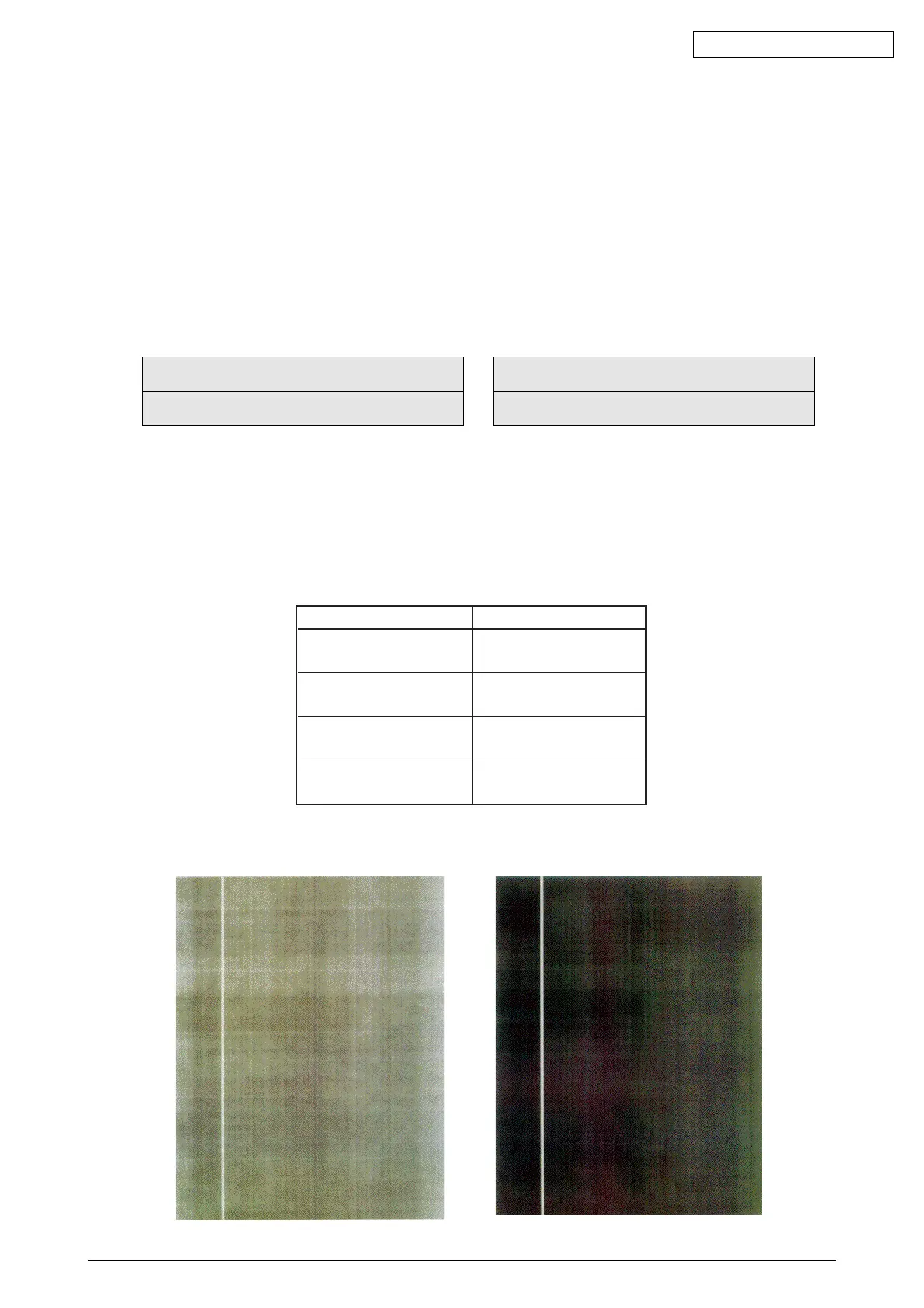

42615101TH Rev.8 146 /
Oki Data CONFIDENTIAL
4. With “PRINT EXECUTE” on the lower display after step 2, when the ENTER key is pressed,
test printing is executed using the values set in steps 2 and 3. Pressing the CANCEL key stops
the test printing.
Any of the alarms shown in the table of operator panel display description (see below), which
has been detected during the initiation or progression of test printing, appears on the panel
display, suspending the printing (for the description of errors, see section 5.4.2.14 Operator
Panel Display, which messages differ from those displayed in PU test printing).
COLOR
ON
Y:ON M:ON
C:ON K:ON
→
Pattern 1 Pattern 2
Notes!
PAGE Setting ................. Should the ONLINE key be pressed after a digit is shifted by a touch of
the MENU+ or MENU- key, the setting is incremented. In the event of
the press of the CANCEL key after such a digit shift, the setting is
decremented.
COLOR Setting .............. While the COLOR setting is set to ON, pressing the ENTER key displays
the following on the panel.
Print Setting for Colors ... The press of the MENU+ or MENU- key shifts a value. The ONLINE
or CANCEL key is used for switching between ON and OFF. The
BACK key restores original display.
Panel Display
PAPER END
SELECTED TRAY
DUPLEX UNIT IS
NOT INSTALLED
SELECTED TRAY IS
NOT INSTALLED
REMOVE PAPER
OUT OF DUPLEX
Detail
The tray is out of paper.
A duplex unit is not
installed.
The selected tray is not
installed.
An internal error of the
duplex unit occurred.
Print Patterns(This is not available for PQ confirmation.)
Patterns 0 and 8 to 15 ... print a blank page.
