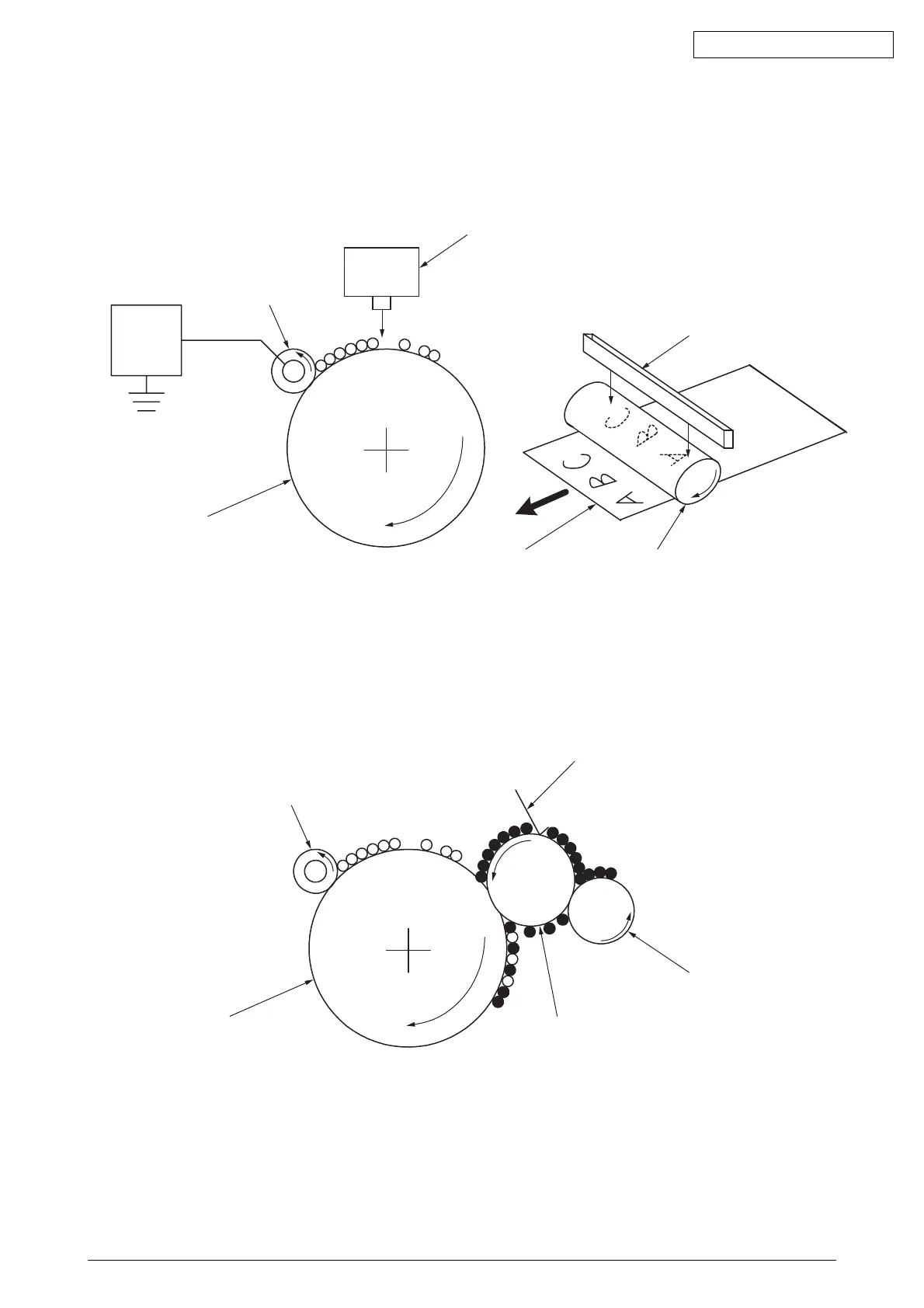

(3) Exposure

The surface of the charged drum is exposed to light emitted from an LED head. Charges of

segments of the surface are reduced according to the intensities of the light the segments

receive, a static latent image being created on the surface.

Power

Supply

Unit

OPC Drum

Paper

OPC Drum

LED Head

CH Roller

LED Head

(4) Development

Toner is attracted to the latent image on the surface of the drum, making the image a toner

image.

1. The sponge roller supplies toner onto the developing roller.

OPC Drum

CH Roller

Developing Blade

Sponge Roller

Developing Roller

2. The latent image on the surface of the drum is made visible by the toner.
