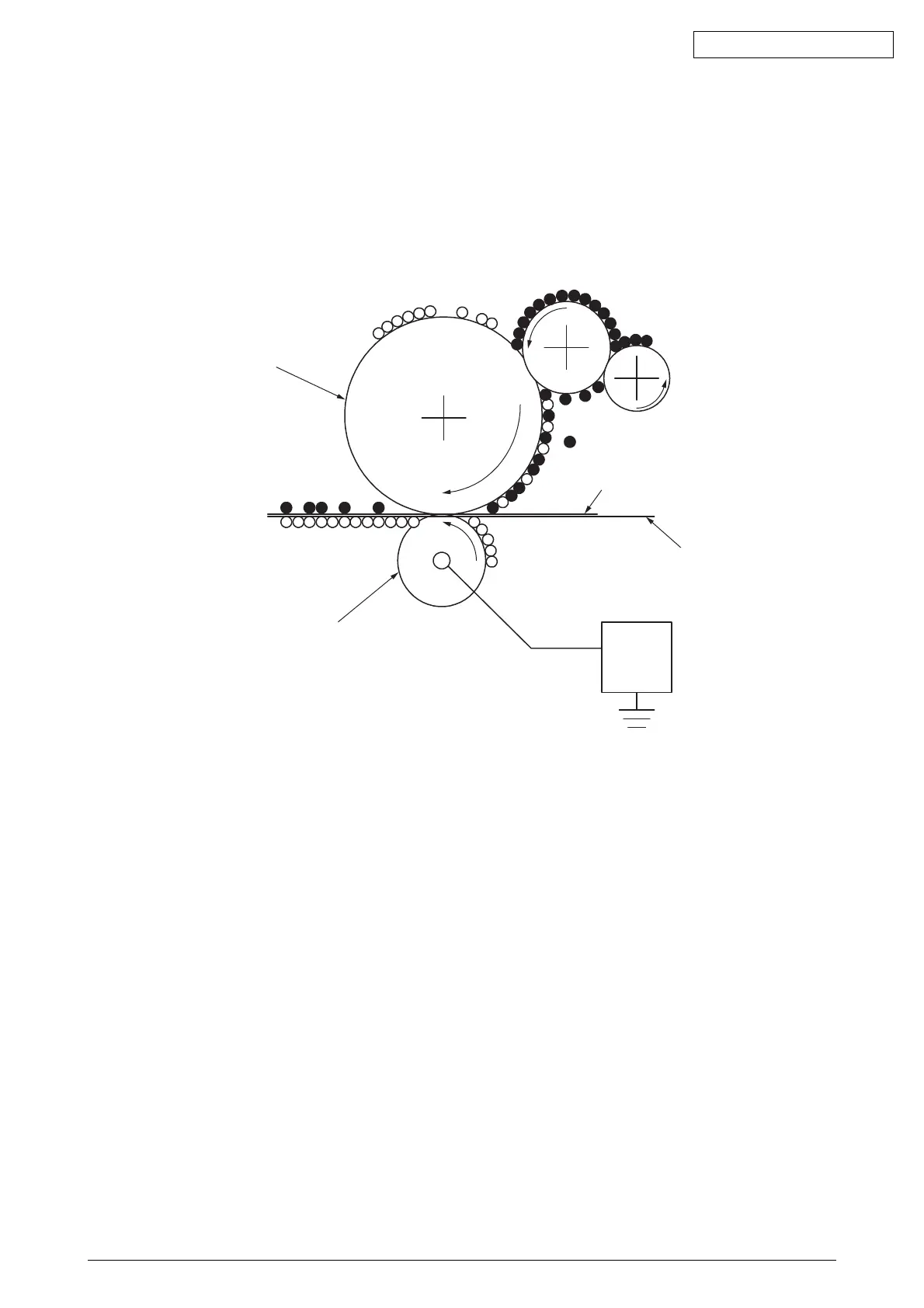

(5) Transfer
The paper made contact with the surface is applied with a charge by the roller from the back.
Applying high voltage provided by a power supply to the roller transfers the roller-induced
charge to the surface of the paper at the contact between the roller and the paper, attracting
the charged toner from the surface of the drum to the surface of the paper.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
Power
Supply
Unit
OPC Drum
Paper
Transfer Belt
Transfer Roller
