(6) Fusing

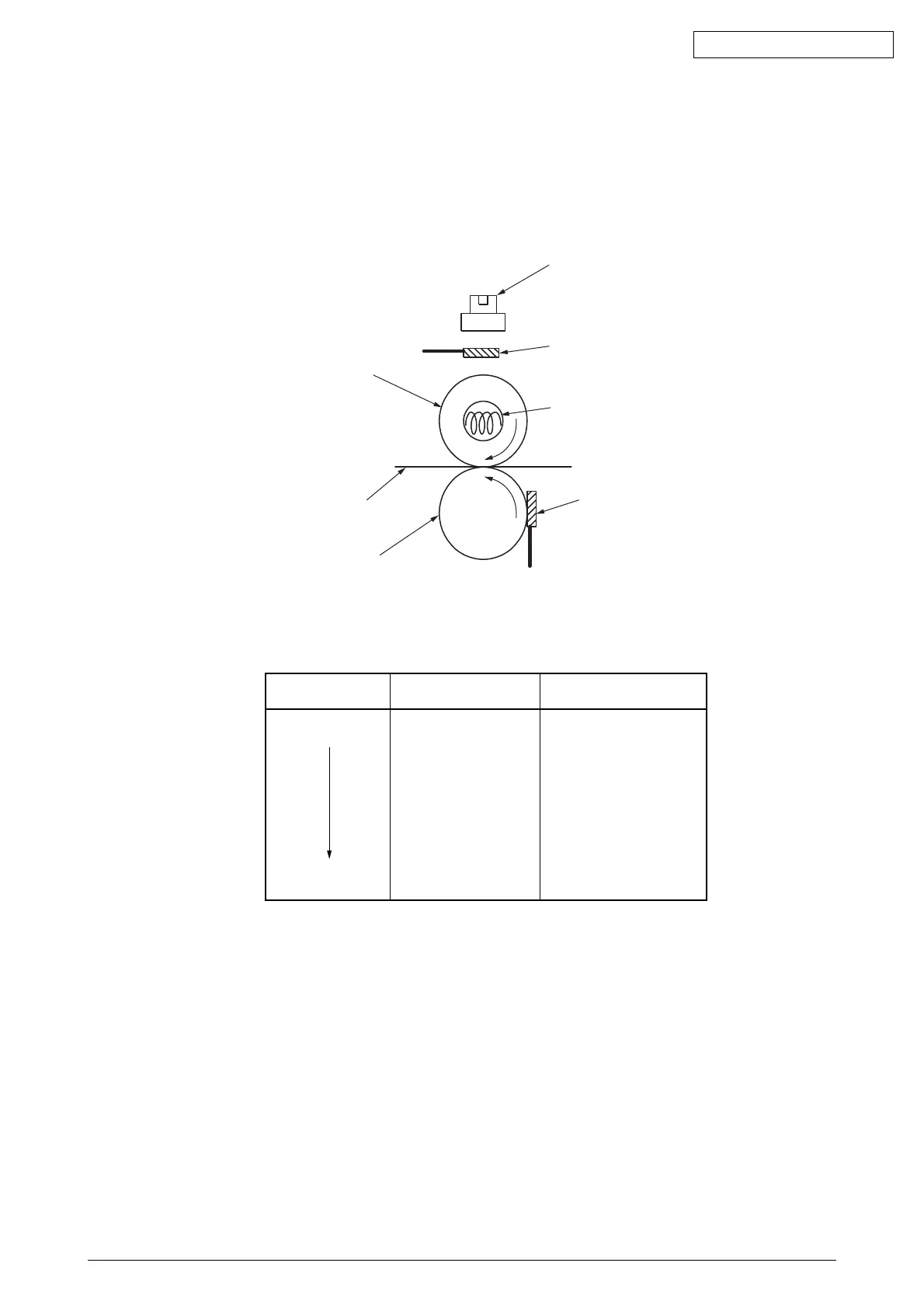

When passing between a heat roller and a backup roller, the toner image transferred to the
paper is fused into place with heat and pressure.
A safety thermostat is provided and, when the temperature of the heat roller rises to or exceeds
a predetermined temperature, it opens, cutting off voltage supply to the heater.
Thermostat
Thermistor
Thermistor
Halogen Lamp
Heat Roller
Paper
Backup Roller
Paper Type Settings
Light
Medium
Heavy
U.Heavy
OHP
Media Weight
Light
Heavy
Temperature Settings
Warm
High
Warm
Low
Low
Fusing Temperature Settings
To Next Page
