(3) Carrier Belt
1. The running of the carrier belt motor in the direction of the arrow drives the carrier belt. The
belt unit sits with one carrier roller immediately below each color’s drum, and the carrier belt
between them. By the application of a fixed voltage, the carrier belt and carrier roller feed
paper on the carrier belt into the fuser unit, transferring a toner image on each color’s drum.

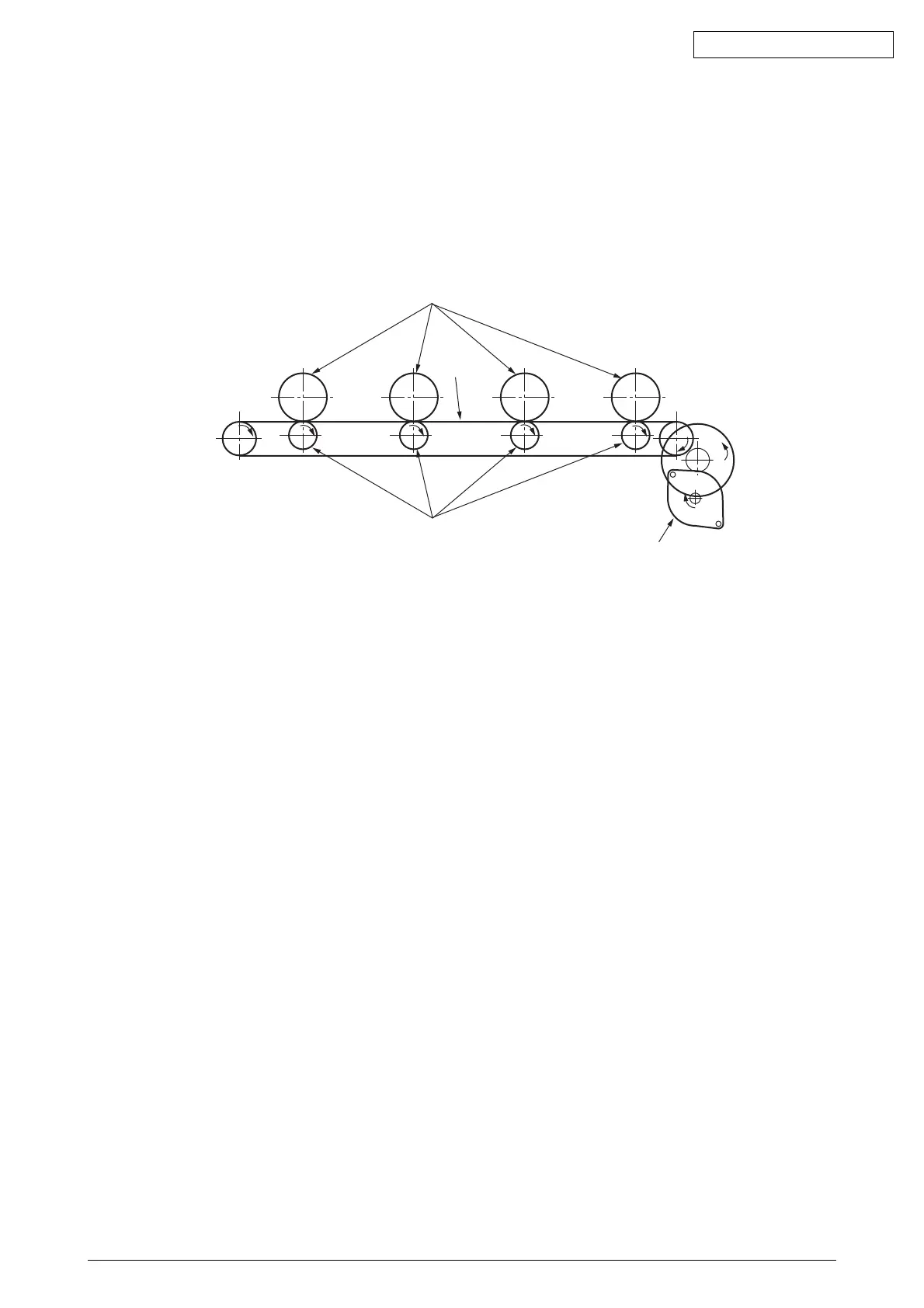

Figure 2-5
Carrier belt
Carrier (transfer) roller
Carrier (transfer) belt motor
Drum
KYMC
