4. Component replacement

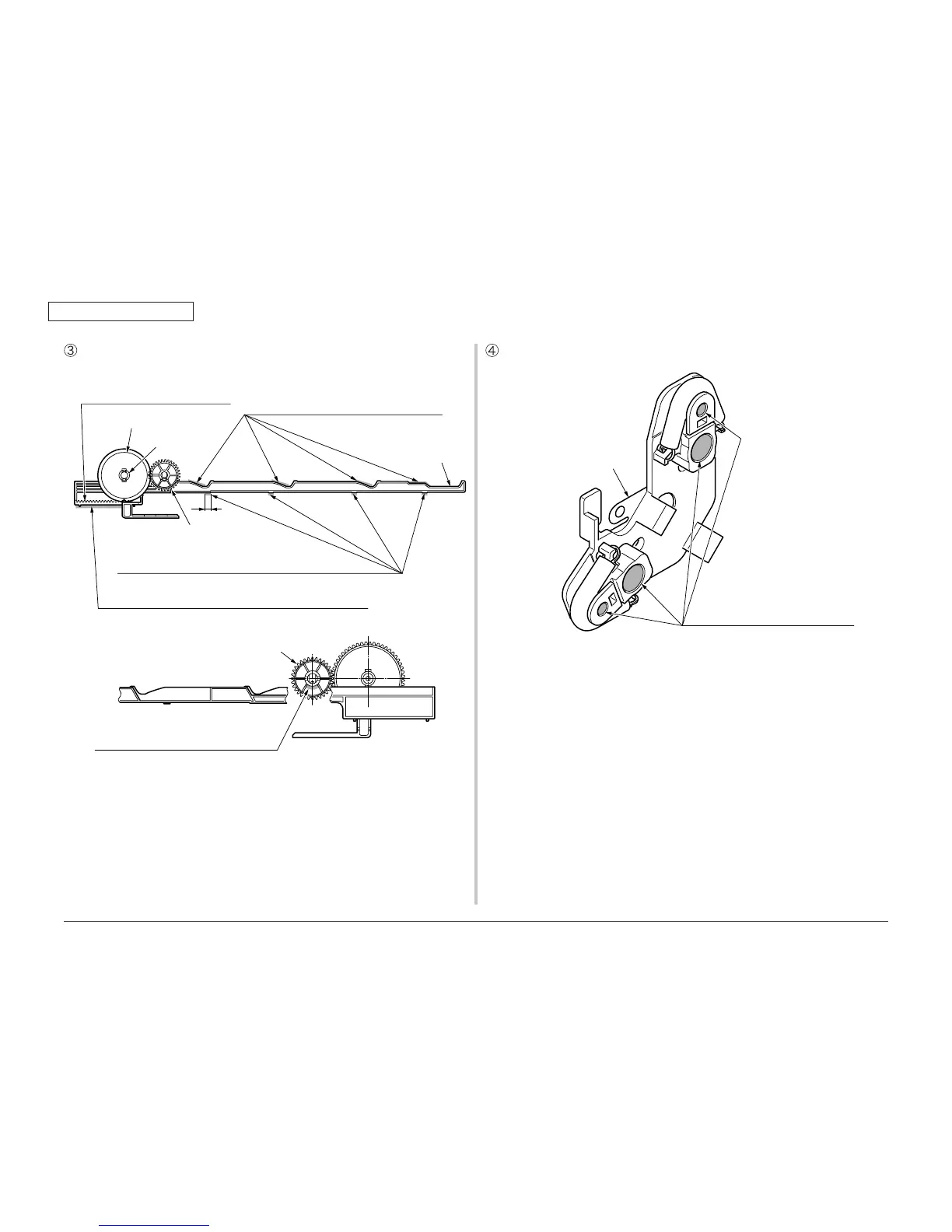

43074904PA Plate-Assy.-Side-L 42071401PA Holder Assy.-Regist-L
Gear-LiftUp-Z32
EM-30LP Class B
Apply a small amount of MOLYKOTE (EM-30LP)
to the hatched areas.
EM-30LP Class A
Apply a small amount of MOLYKOTE (EM-30LP) to the hatched areas.
EM-30LP Class A
Apply a small amount of MOLYKOTE (EM-30LP)
to the hatched areas.
EM-30LP Class C
Apply a normal amount of MOLYKOTE (EM-30LP) to the hatched areas.
EM-30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the gear tooth tops.
Gear-LiftUp-Z56
Link-LiftUp-L
Gear-LiftUp-Z32
Post-GearIdle-L
(5)
Holder-Regist-L
EM-30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatched areas
(bearing portion).
