45376001TH Rev.1
104 /
Oki Data CONFIDENTIAL
4. Component replacement

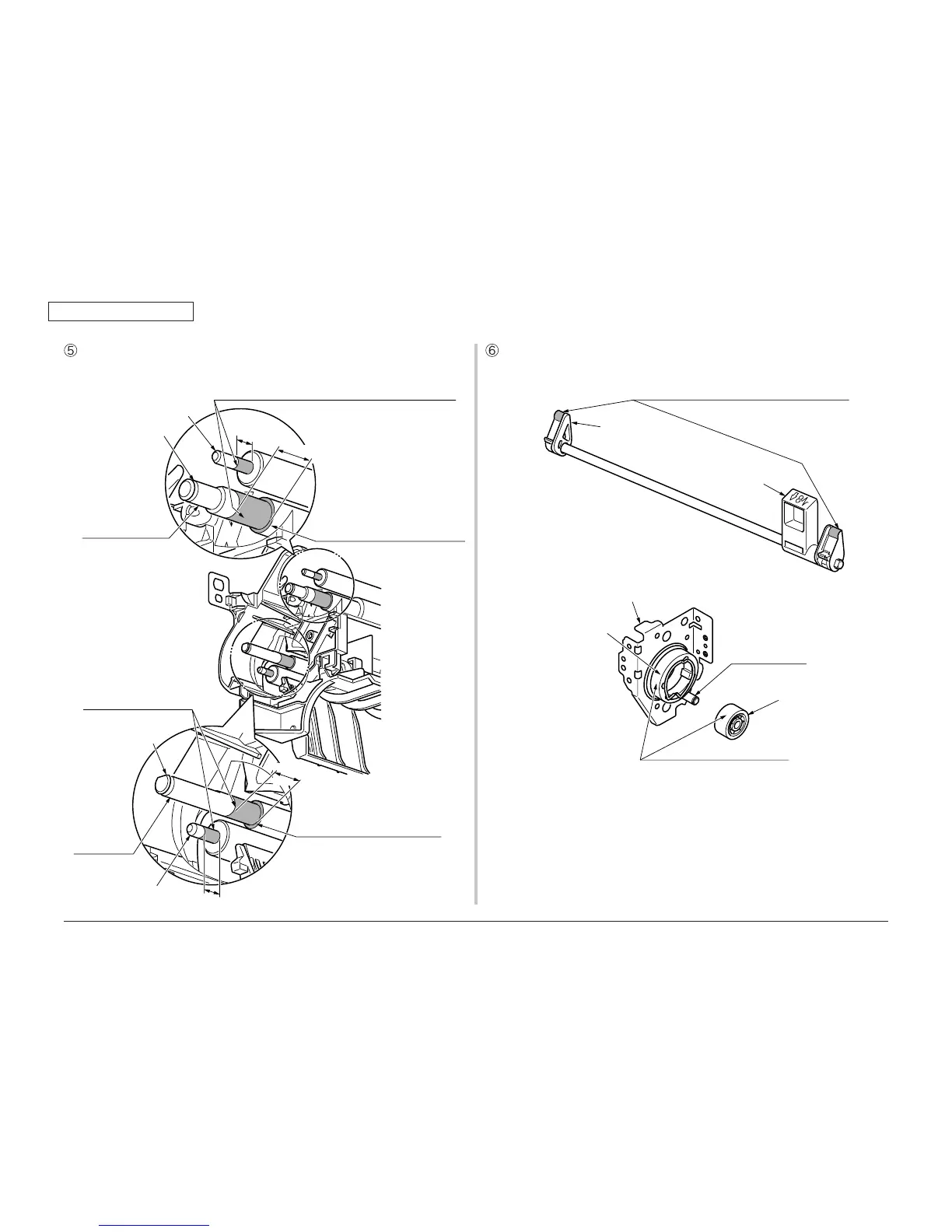

44261901PA Feeder Assy.-Regist
Roller-Pressure
5mm
5mm
13mm
10mm
Roller-Regist-U
EM30LP Class C
Apply a normal amount of MOLYKOTE (EM-30LP) to the hatching
areas (Shaft).
EM30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatching areas (Shaft).
EM30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatching areas
(thrust section).
EM30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatching areas (thrust
section).
Gearse prohibition at
the this position
Gearse
prohibition at
the this position
Roller-Regist-L
Roller-Pressure
44286901PA Fuser-Assy
Lever-Release
Cam-Release
Gear-Idle-(Z21)
Grease prohibition to the Gears.
Grease prohibition
at the post.
HP-300 Class C
Apply a normal amount of HP-300 to the hatching areas.
Plate-Side-R-Caulking (Fuser)
Gear-Fuser-(Z37)
