4. Component replacement

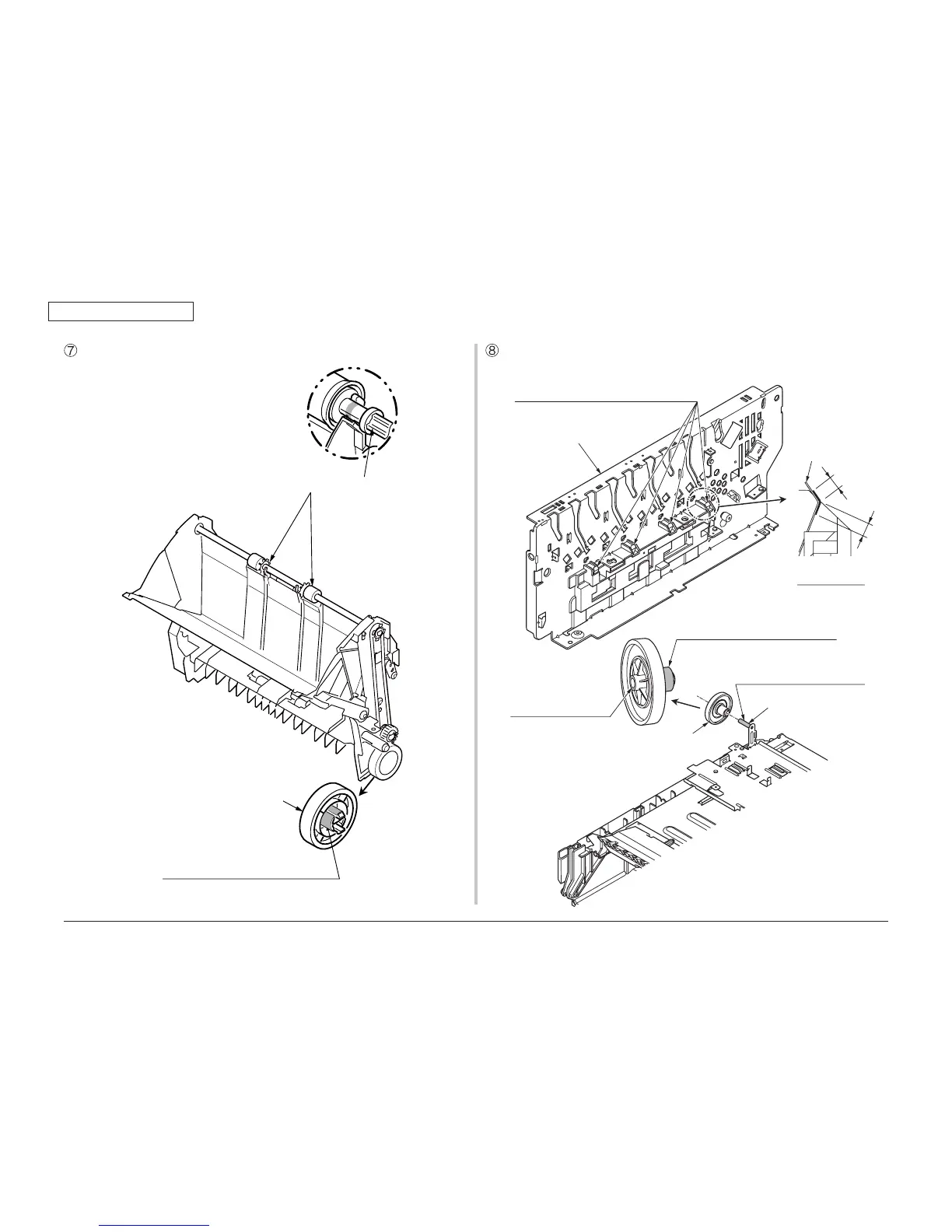

45269001PA Guide-Assy. -Eject-U
Gear-Idle-Exit-Z36
EM-30L Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to surface of
the post (bearing portion)
Shaft-Assy.-Eject(FD)
-1 44257901PA Printer Unit-FX757
Plate-Contact-TR
3
3
Plate-Driver-PU (Caulking)
Gear-Idle-Belt-Z20Z93
Plate-Assy.-Side-L
EM-30LP Class C
Apply a normal amount of MOLYKOTE (EM-30LP)
to the tips of terminal.
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to the post.
EM-30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the whole circle of gear teeth.
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to
the end surface.
Application range
of grease
