45376001TH Rev.1
106 /
Oki Data CONFIDENTIAL

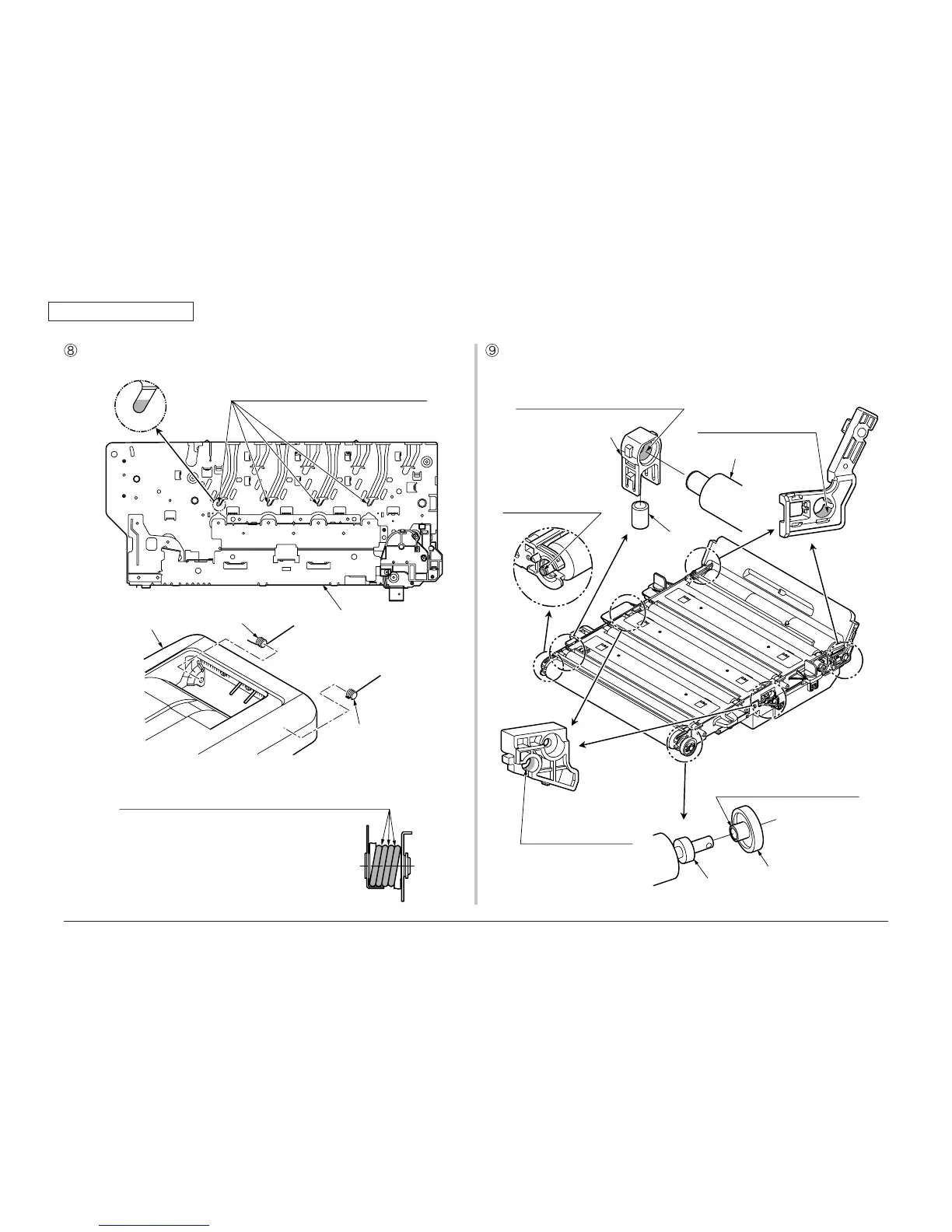

4. Component replacement
Cover-Assy.-Top
Plate-Assy.Side R
Spring-Torsion-L
Spring-Torsion-R
Panmotoroil Class C
Apply a normal amount of Panmotoroil to the portion of the slot of solid
coiling of this torsion-spring using a brush. (2 places) (At both sides)
Apply a normal amount of MOLYKOTE (EM-30LP) to
the hatched areas.
44342001PA Belt-Assy
EM-30LP Class A
Apply a small amount of MOLYKOTE
(EM-30LP) to the inside of Bearing-TR (Belt).
(Both sides, total 8 places)
Spring-TR
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to beaing
portion (Both side).
EM-30LP Class A
Apply a small amount of
MOLYKOTE (EM-30LP) to
bearing end.
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to
bearing portion (Both side).
EM-30LP Class A
Apply a small amount of MOLYKOTE
(EM-30LP) to sliding surface of
Gear-Drive-Z36 and Bearing-GSB.
Gear-Drive-Z36
Bearing-GSB
Roller -Transfer
Bearing -TR(Belt)
-2 44257901PA Printer Unit-FX757
To Next Page
