Olympus E-M1X - Parts of the Camera

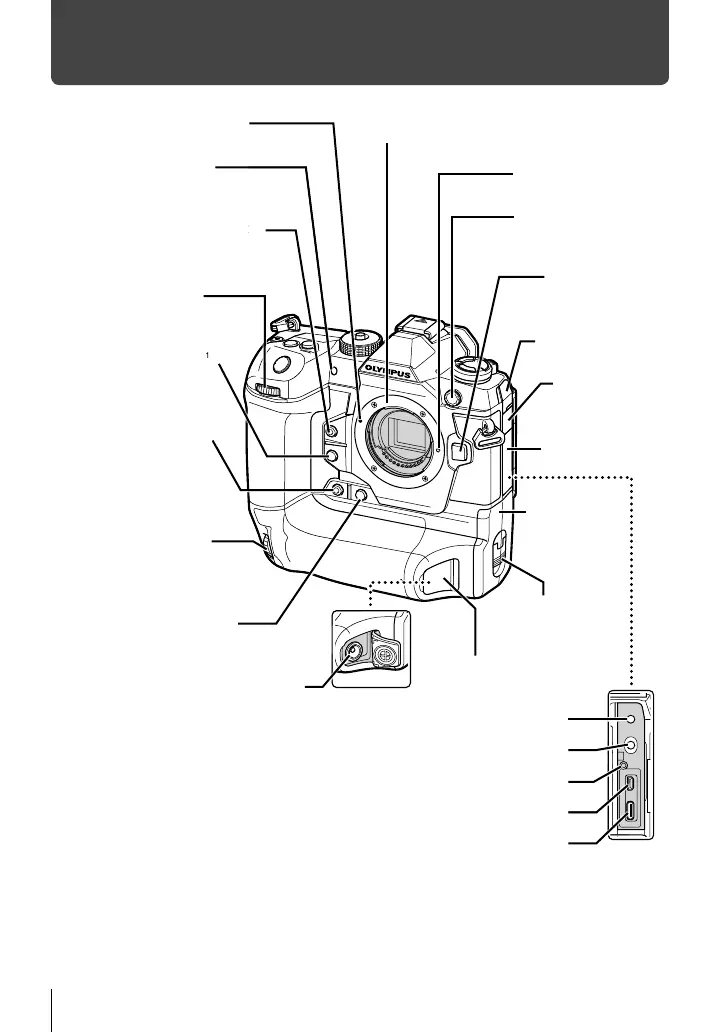

Parts of the Camera
Parts of the Camera
*1 Can be assigned other roles. g “Assigning Roles to Buttons (K Button Function)”
(P. 463), “Assigning Roles to Buttons (n Button Function)” (P. 417)
*2 Used when the camera is rotated 90° to shoot pictures in portrait (“tall”) orientation.
Performs the same function as the standard (landscape or “wide”) orientation equivalent.
Vertical-use front dial *
2
(P. 94–101, 334–338)
Self-timer lamp (P. 151)
AF illuminator (P. 490)
One-touch white balance button
(XY) *
1
(P. 207, 386)
Preview button (XZ) *
1
(P. 464, 524)
Lens attachment mark (P. 39)
Vertical-use one-touch
white balance button
(YY) *
1
*
2
(P. 207, 386)
Vertical-use preview button
(YZ) *
1
*
2
(P. 464, 524)
Front dial (P. 94–101,
334–338)
Microphone jack
cover
Lens release
button (P. 39)
Headphone jack
cover
External fl ash terminal
(P. 264)
Connector cover
Lens lock pin
Mount (remove body cap before attaching
lens)
Battery
compartment
cover (P. 32)
Battery compartment
lock (P. 32)
Microphone jack (R) (ø3.5 mm stereo mini-jack) (P. 413)
USB connector (Type C) (P. 415, 603, 622, 625)
Headphone jack (P) (ø3.5 mm stereo mini-jack)
HDMI connector (Type D) (P. 627)
Cable protector mount (P. 29)
DC connector (P. 35)
DC connector cover
(P. 35)
e
butt
o
o
n
M
c
C
*
1
