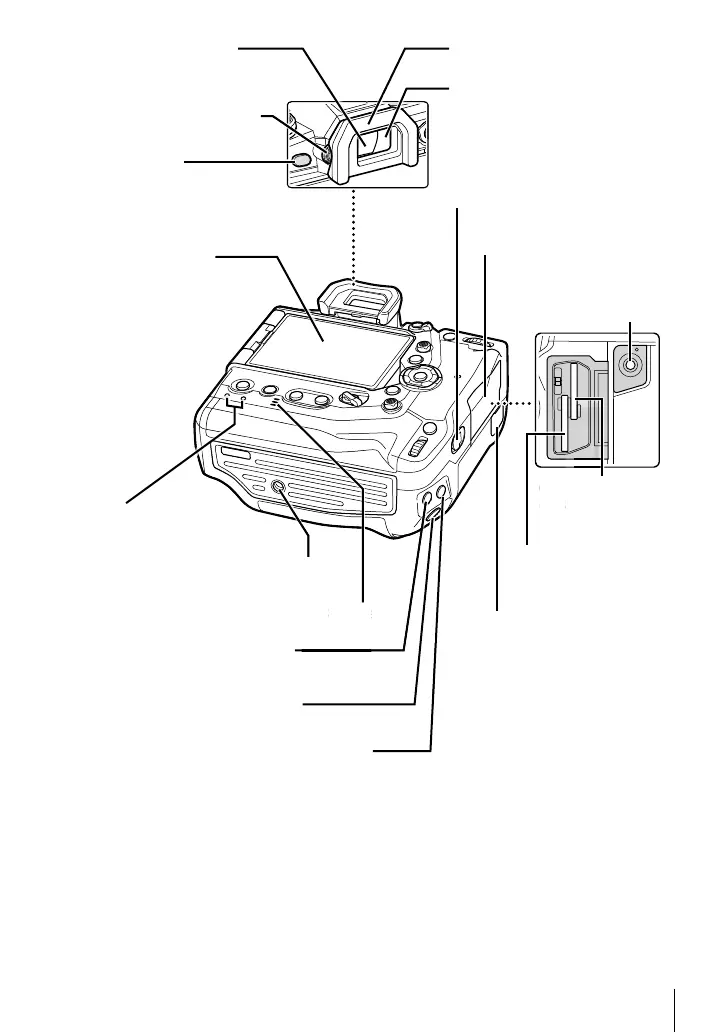

Parts of the Camera
*1 Can be assigned other roles. g “Assigning Roles to Buttons (K Button Function)”
(P. 463), “Assigning Roles to Buttons (n Button Function)” (P. 417)
*2 Used when the camera is rotated 90° to shoot pictures in portrait (“tall”) orientation.
Performs the same function as the standard (landscape or “wide”) orientation equivalent.
Diopter adjustment dial (P. 49)
u (LV) button *
1
(P. 62, 86, 328)
Eyecup (P. 30)Viewfi nder (P. 49, 83, 326)
Eye sensor
Monitor (touch screen)
(P. 43, 54, 58, 83,
295, 303, 326)
CHARGE (battery charge)
lamp (P. 34)
Tripod socket
Vertical-use ISO button (YK) *
1
*
2
(P. 181, 369)
Vertical-use shutter button *
1
*
2
(P. 53)
Vertical-use F (exposure compensation) button
(YF) *
1
*
2
(P. 180, 227, 367, 403)
Card compartment cover lock
(P. 36)
Speaker
Card compartment cover
(P. 36)
Remote cable terminal
(b) (P. 55, 297)
Card slot 1
(P. 36)
Card slot 2
(P. 36)
Remote cable terminal cover
(P. 55, 297)
4
9
)
p
o
d
d
S
peak
e
socke
t
e
r
C
ar
d
(P.
3
