FM MENU MPX INPUTS
16 FM Menu MPX Inputs
Omnia.9 provides two rear-panel MPX (composite) inputs which can be used for a variety of purposes, including using an
external RDS encoder as described in the previous section on RDS. If these MPX inputs are enabled (as described in the System
Config Menu section of chapter 18 on the System Menu), they can also be used to put some of Omnia.9’s built-in tools to good
use.
For example, you may wish to connect a modulation monitor or a tuner with an MPX output to one of the inputs and take a
closer look at other signals in your market on the oscilloscope or spectrum analyzer. You could feed the composite output of
your existing processor into the Omnia.9 to check its performance. Or, you could verify the performance of an external stereo
coder that you’re planning to use with the Omnia.9‘s L/R Output path and compare it to the performance of Omnia.9‘s built-in
stereo coder.
MPX Inputs 1 and 2 are available as patch points which can be viewed on any of Omnia.9’s instrumentations as well as
auditioned through the monitor outputs using the built-in phase linear reference quality stereo decoder.

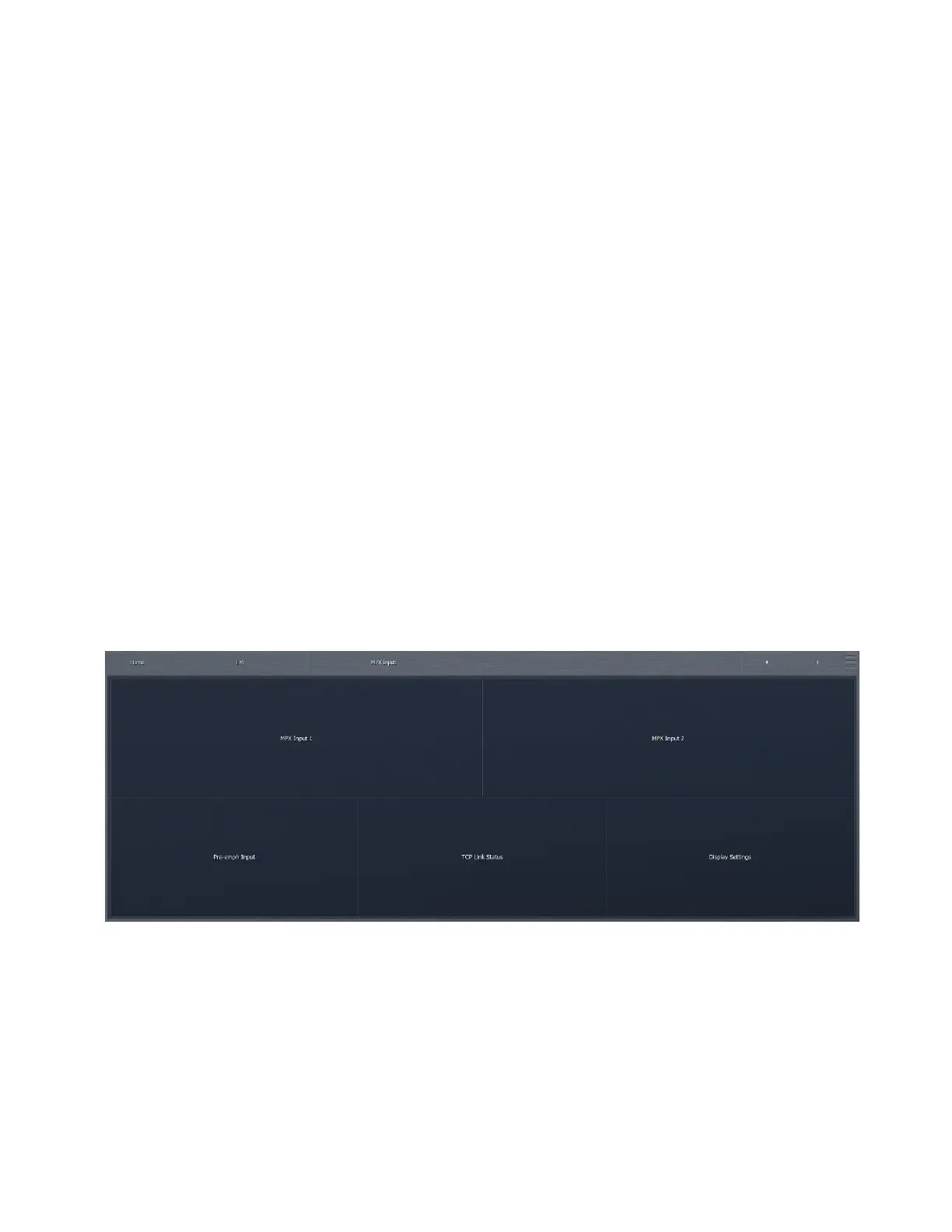

The MPX Input Menu contains additional menus for MPX Input 1, MPX Input 2, Pre-emph Input, and Display Settings.
