Omnia Omnia.9 User Manual

CHAPTER 28
| 229

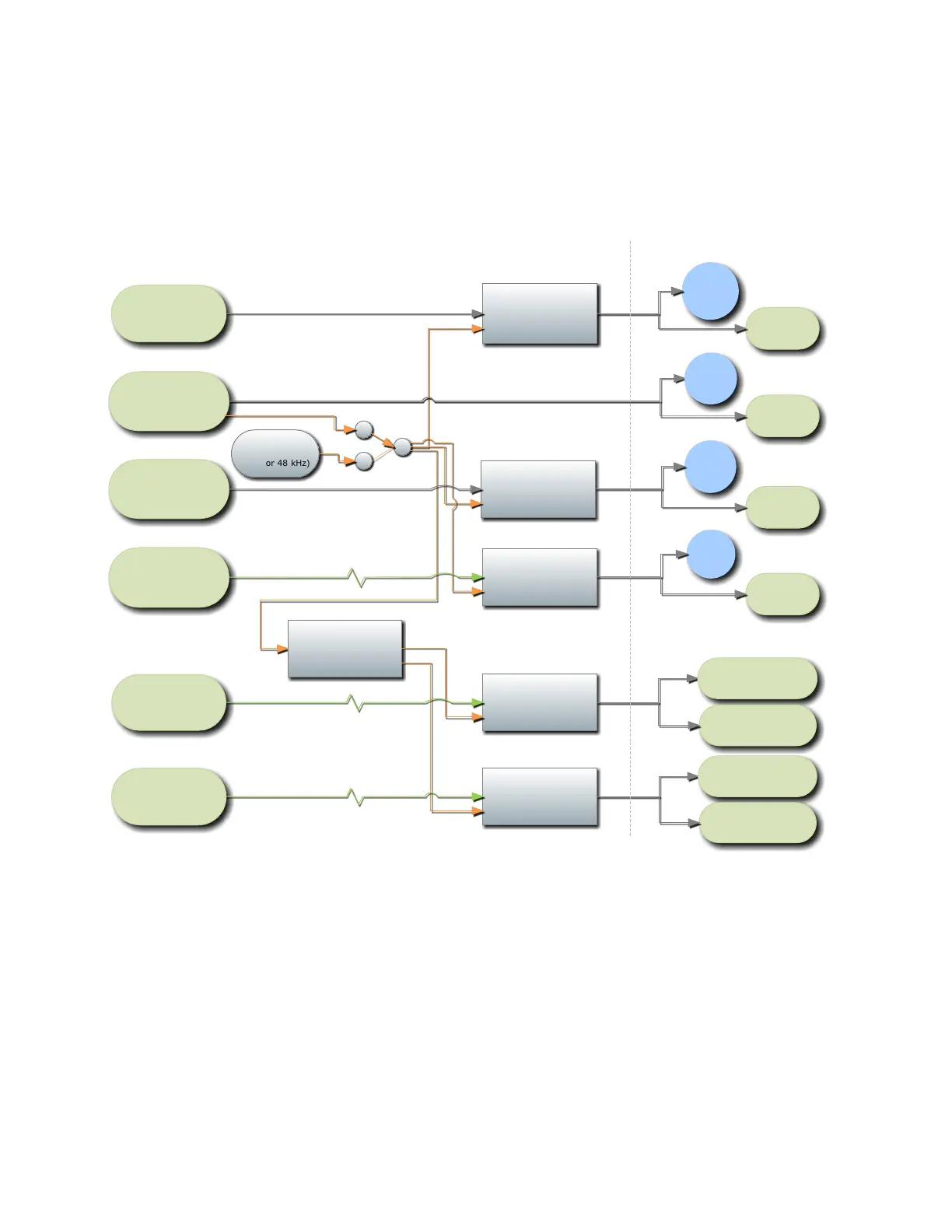

SIGNAL PATH DIAGRAMS
Physical Inputs
Main Digital Input
(32 - 96 kHz)
AES Reference
Input
(44.1 or 48 kHz)
Aux Digital
Input
(32 - 96 kHz)
Analog
Input
(20 kHz BW)
Sample Rate
Converter
Sample Rate
Converter
A/D Converter
MPX Input 1
(80 kHz BW)
MPX Input 2
(80 kHz BW)
A/D Converter
A/D Converter
Internal
Reference
(44.1 or 48 kHz)
Rate Quadrupler
Main Dig
Patch
Point
AES Ref
Patch
Point
Aux Dig
Patch
Point
Anlg In
Patch
Point
1
1
If any AES signal is present on the AES Reference input, that becomes the reference.
The rate of the signal
must match the system sample rate (selected on the front panel).
If it doesn't,
all I/O will mute
, including analog and MPX I/O, as the entire system is
driven from the same (incorrect) clock source.
To MPX Input
section
To RDS section
To MPX Input
section
To RDS section
To Input
section
To Input
section
To Input
section
To Input
section
Rear Panel
I/O Board
Software
