CHAPTER 13
| 102
FM MENU DISPLAY SETTINGS
Below is an example of how to use the RTA menu:
To see a visual representation of a parametric EQ (PEQ) setting:
♦ Display the MB DRC Solo menu and select PEQ Preview
♦ Set Resolution to 1/6 octave
♦ Set Averages to 100 to “freeze” the display

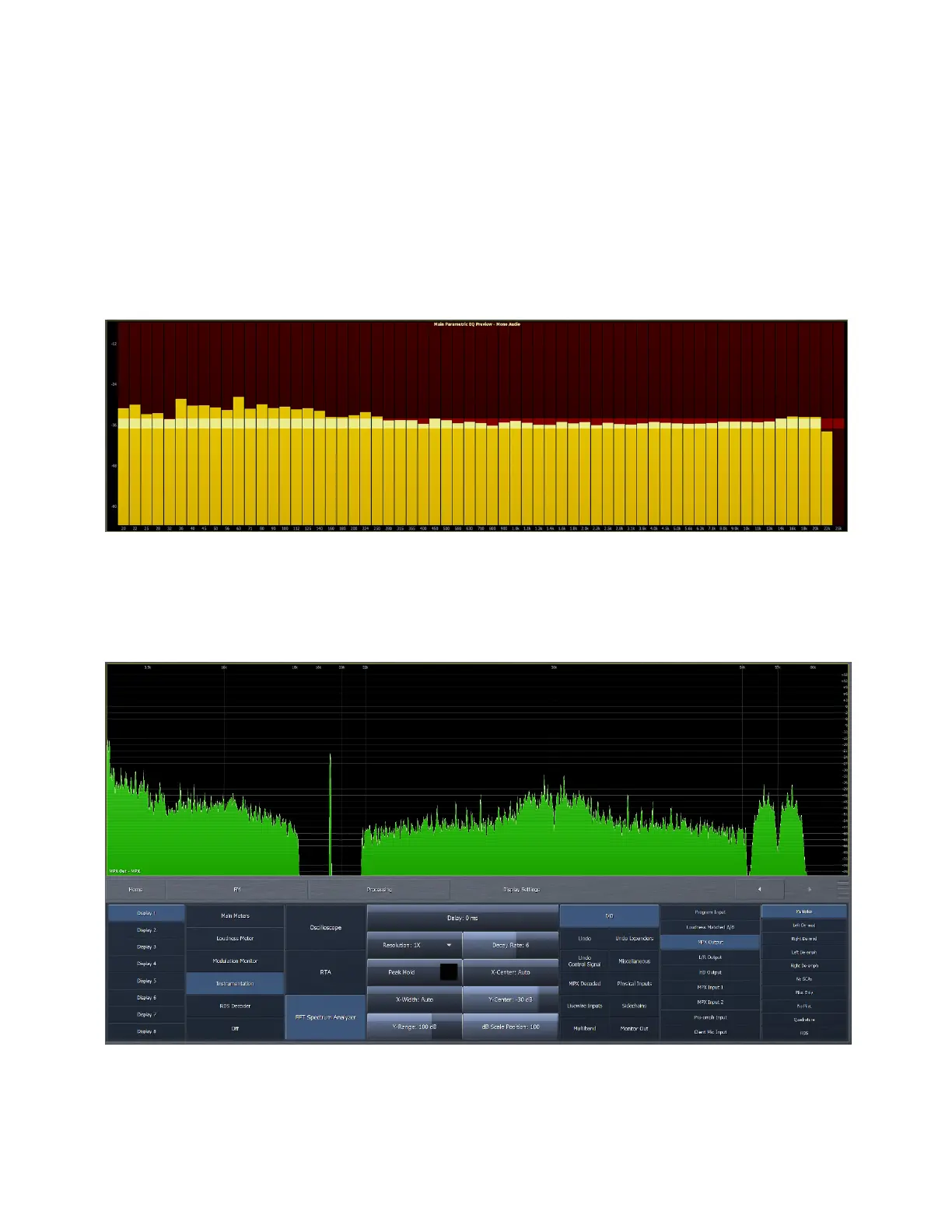

You will now be able to see the curve of the PEQ in the RTA display window. You can also view the curves of each band of
the multiband compressor by selecting one of the Solo band buttons. Since the Solo bands relate to a dynamic section of the
processing core, lowering the Averages slider will yield more of a “real time” view.
FFT Spectrum Analyzer Menu
The FFT menu allows you to monitor the same sources as those mentioned in the Oscilloscope menu section.
♦ The Delay control works the same here as it does previous and subsequent display sections.
♦ The Resolution control selects the number of frequency bands into which the audio is divided. 1x resolution gives you
a refresh rate of approximately 48 frames per second and a frequency resolution sufficient for viewing the entire audio
spectrum. 8x resolutions gives you a refresh rate of approximately 6 frames per second, but a much finer frequency
resolution.
