CHAPTER 8
|
35
INPUTS
1/
2/
3 SOURCE
A
UDIO MENU
Expander Ratios Menu
Each Undo expander band can operate in a range of ratios between 1:1 and 4:1. The
Minimum Ratio
and
Maximum R
atio
determine the absolute minimum and maximum ratios, respectively
, for each band.
A
B

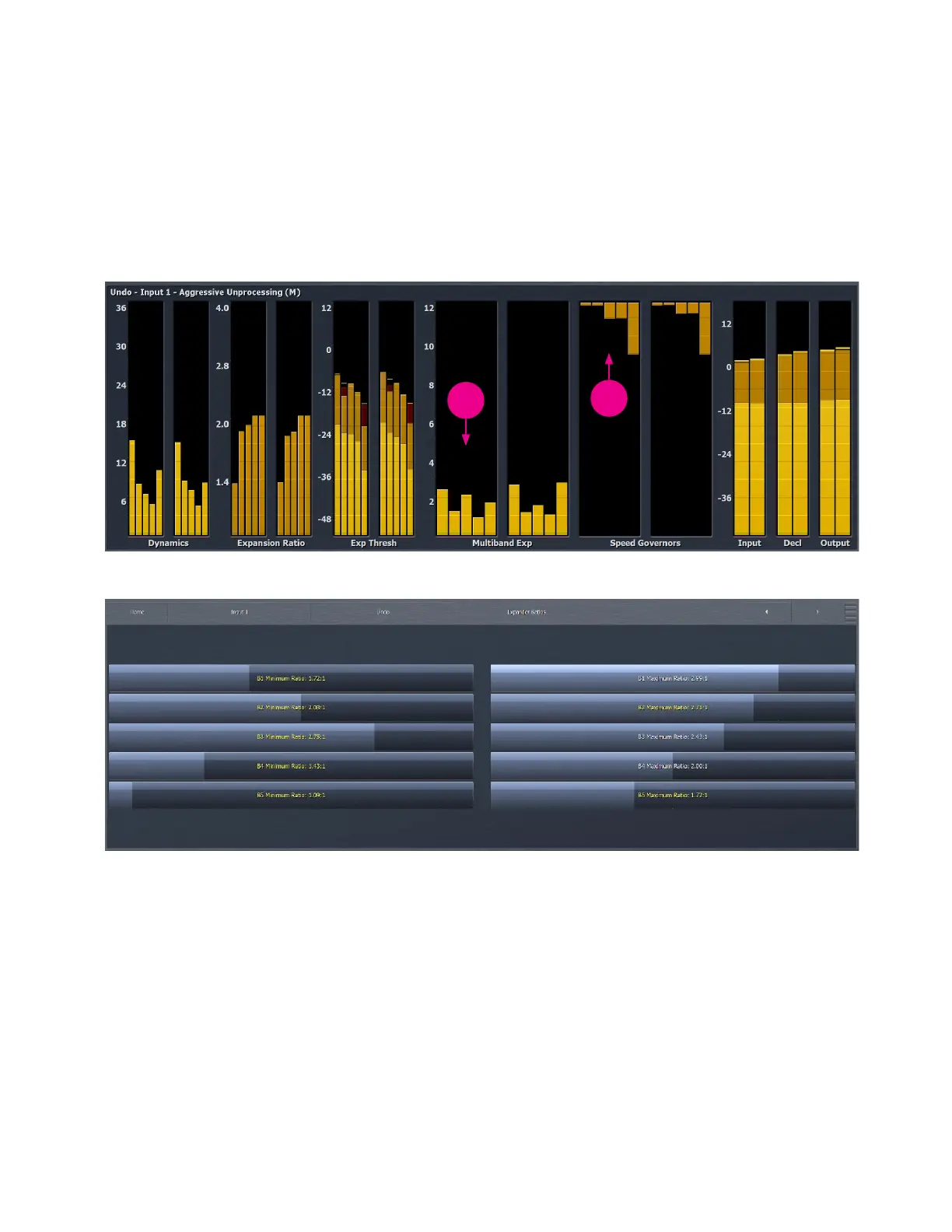

A:
Multiband Expander Meters,
B:
Speed Governor Meters
51
53
