CHAPTER 22
| 155
MONITOR OUTPUT MENU
♦ The Band Min slider sets the point at which any equalization established by the Frequency, Width, and Gain sliders are
begins to take place.
♦ The Band Max slider sets the point at which the maximum amount of equalization is reached.
If the Gain slider is set to 0dB and the Band Min and Band Max sliders are set to the same value, the equalizers in the Loudness 1
and Loudness 2 menus can be used as additional “static” EQ bands if, for whatever reason, more bands beyond those offered in
the Main 1 and Main 2 setting are needed.

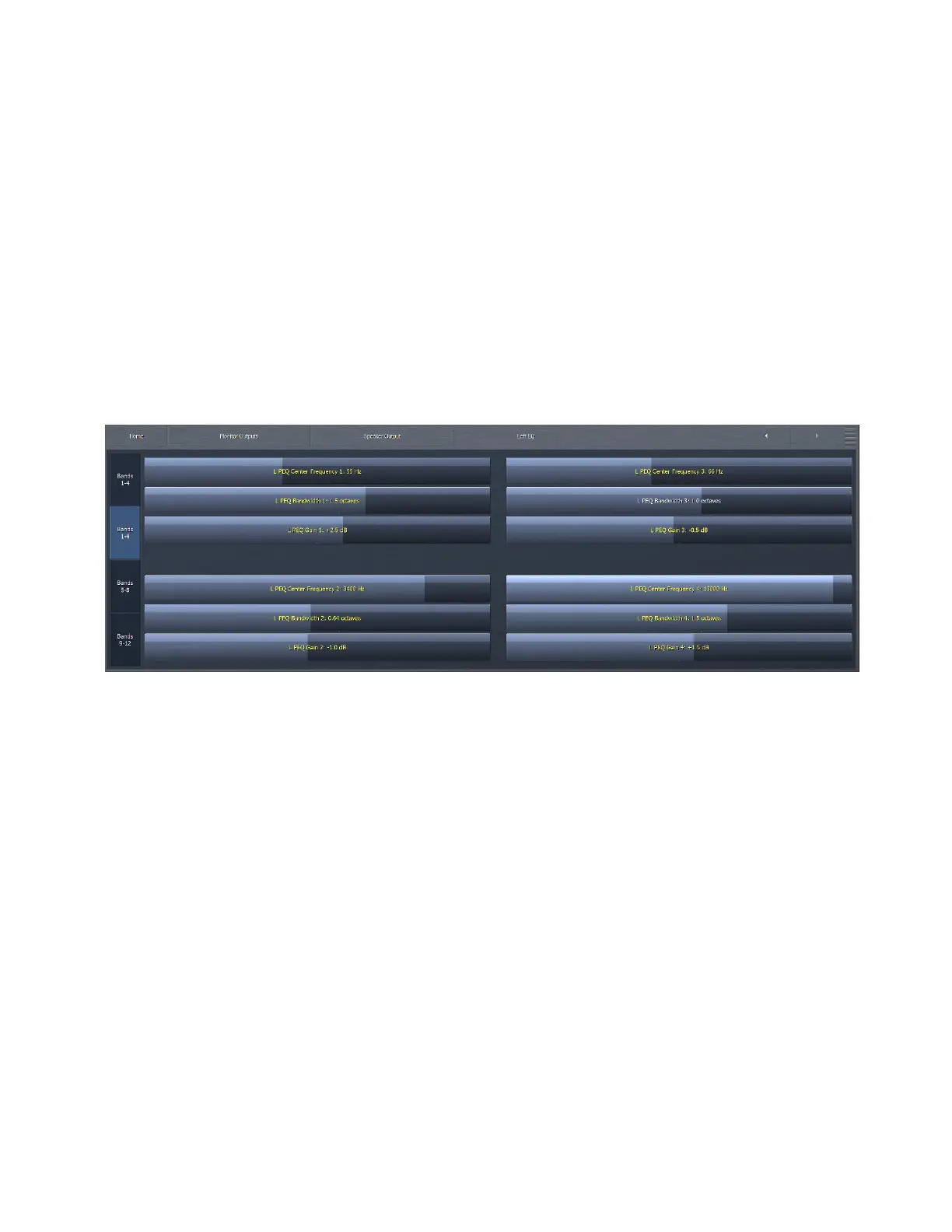

Left EQ1, Left EQ2, Right EQ1, and Right EQ2 Menus
The Left EQ1, Left EQ2, Right EQ1, and Right EQ2 menus each provide six bands of fully parametric equalization for each
Monitor Output.
♦ The Frequency, Width, and Gain sliders operate in the same manner as their counterparts in other sections of the
Omnia.9 in which a parametric equalizer is offered.
♦ The Copy control places the settings from either the Left EQ 1 or Right EQ 1 section onto a “clipboard” so that they can
be shared in the opposite channel EQ by using the Paste control. This is especially handy if your left and right speakers
require nearly - but not quite - identical equalization.
Specific instructions for how to use these controls to calibrate your speakers are offered later in this manual.
