CHAPTER 23
| 183
SYSTEM MENU
GPIO Menu

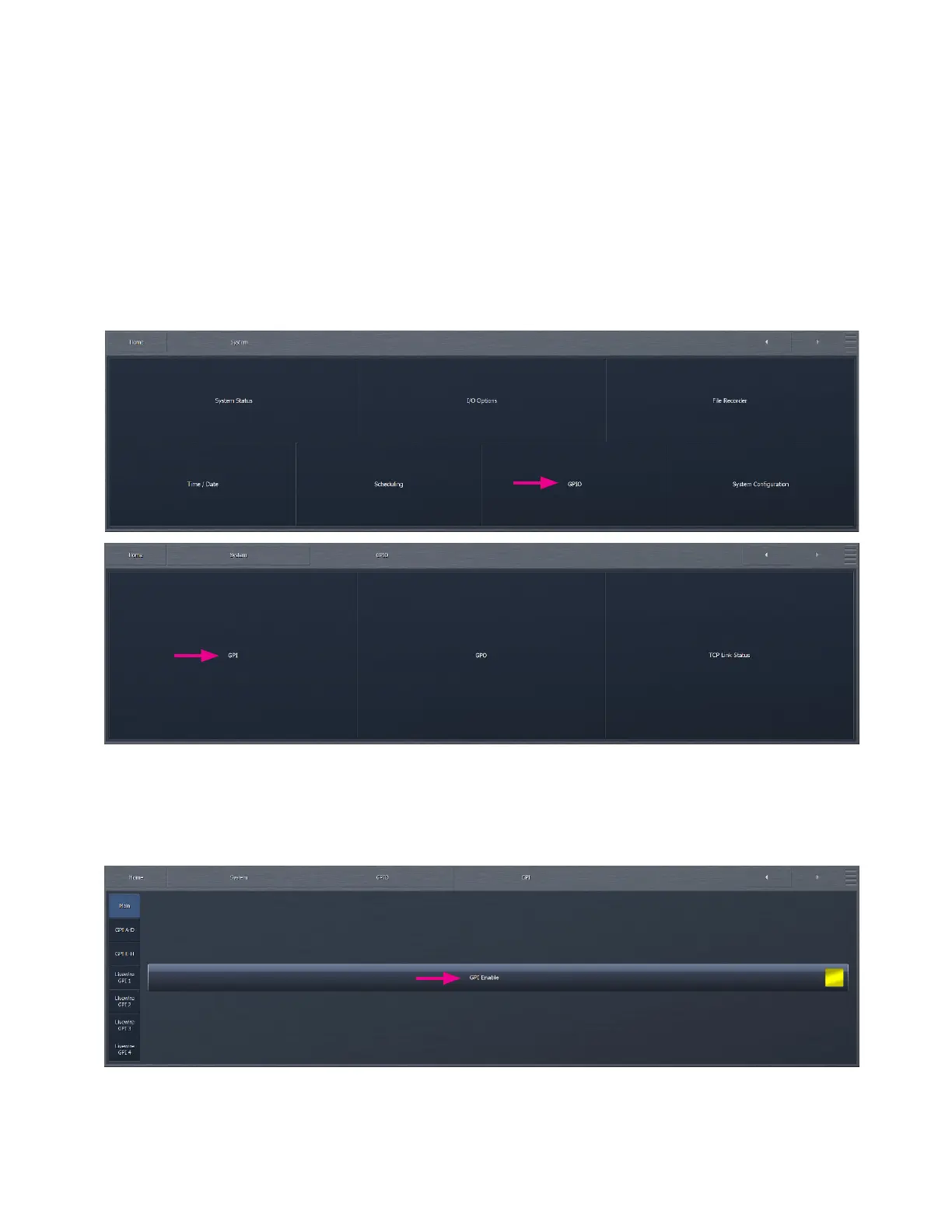

The GPIO menu contains controls to enable or disable GPIO functionality. Go to Home > System > GPIO, and select GPI..
When the GPI is enabled, by selecting GPI A-D or E-H, you can click on the top item in the menu stack to Disable, Task, Undo
Preset (per processing core), Processing Preset (per processing core) Dry Voice Detection (per processing core), AM Night
Mode and just about anything else you’d like to control externally. You can then select a LO or HI function enable, set up a latch
set invert on or off. You can select from analog or Livewire.
GPI Enable
The GPI Enable control is used to turn GPI on or off. Please note that GPI must be disabled in order to edit and configure the
individual GPI functions.
