CHAPTER 23
| 170
SYSTEM MENU

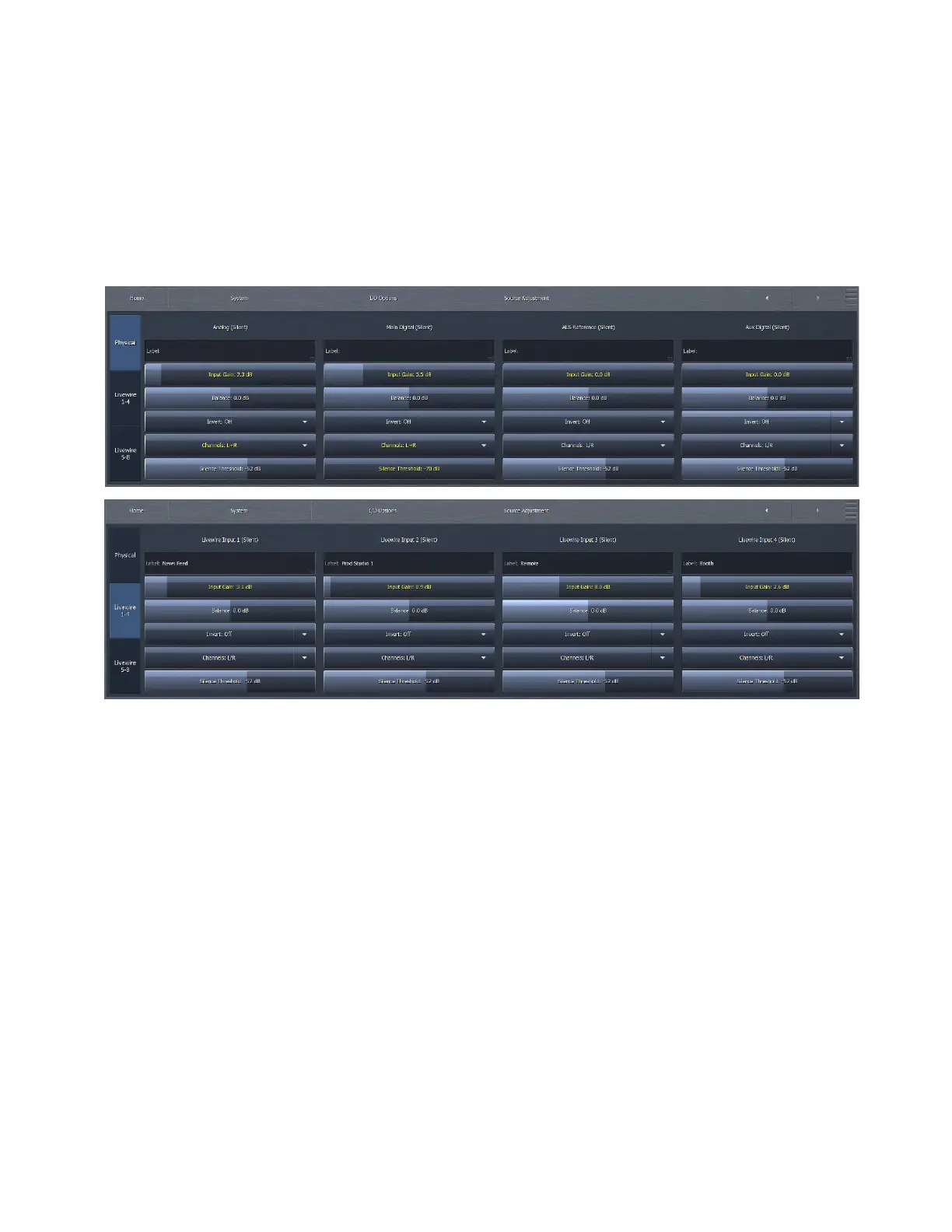

Source Adjustment Menus
The Source Adjustment menus contain the controls to set the input gain, invert the polarity of the input audio, and set the
input mode independently for the Analog, Main Digital, AES Reference, and Aux Digital physical inputs, as well as setting the
adjustments for the Livewire inputs (visible only on MKII platform) .
♦ The Input Gain control allows you to adjust a variable gain stage after the clip detector and can be used to boost levels to
meet Omnia.9’s reference input level as indicated by a green color on the input meters, with an adjustment range of 18dB.
♦ The Balance allows you to change the amount of left and right audio
♦ The Invert control allows you to swap the polarity of only the left channel input, only the right channel input, or both the
left and right channels simultaneously.
♦ The Channels control offers five combinations to determine how the input audio is fed into Omnia.9 in terms of left and
right channels.
♦ L/R sends left channel input audio to the left channel and right channel input audio to the right channel (default
setting).
♦ R/L sends left channel input audio to the right channel and right channel input audio to the left channel.
♦ L+R sends both right- and left-channel input audio to both the left and right channels.
♦ L sends only left-channel input audio to both the left and right channels.
♦ R sends only right-channel input audio to both the left and right channels.
♦ The Silence Threshold establishes the point at which low program audio, or lack of audio, is considered to be silence.
