CHAPTER 28
| 234

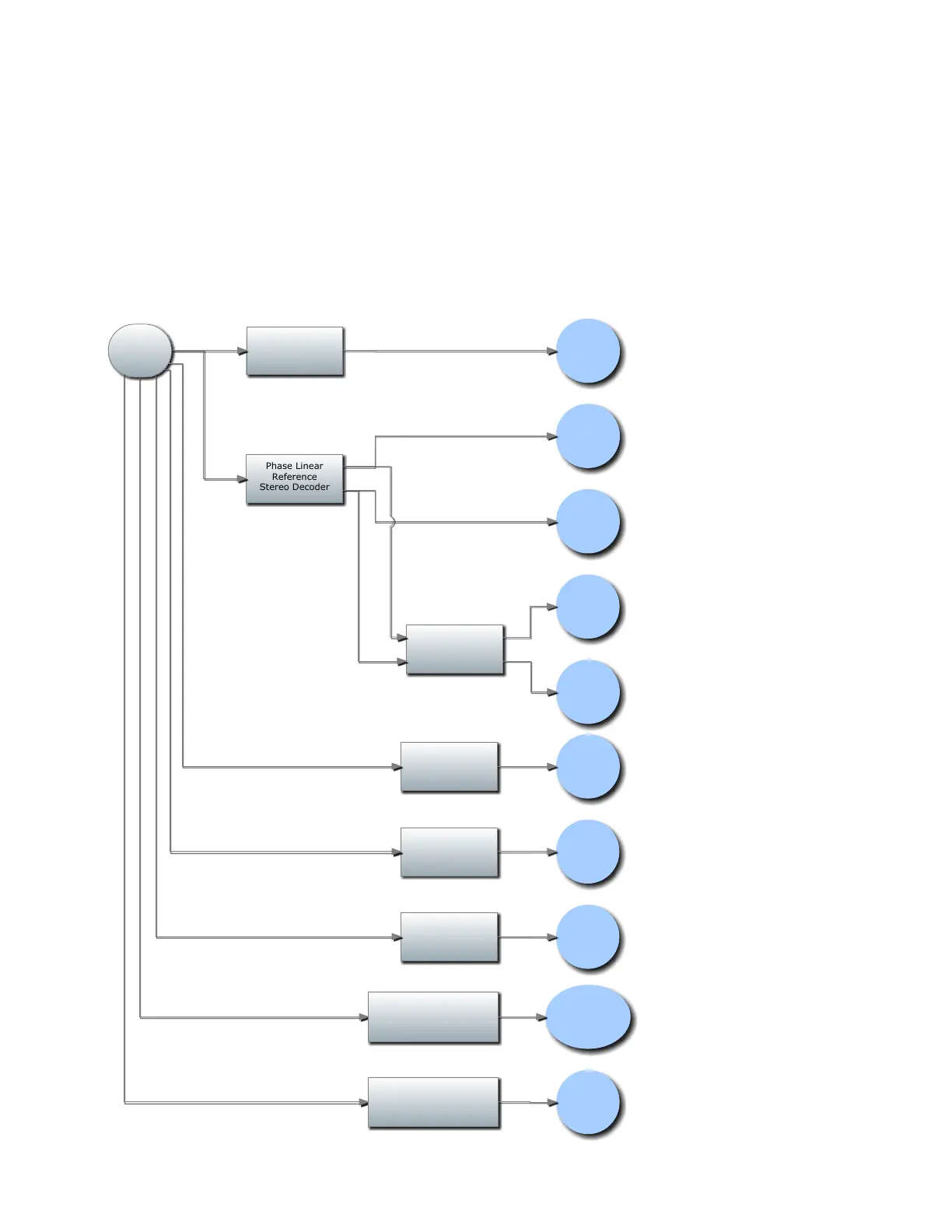

SIGNAL PATH DIAGRAMS
MPX Patch Point
MPX
Patch Point
Used for both
MPX
Inputs and the
MPX
Output.
FFT
Spectrum and Oscilloscope can view any channel.
RTA
and Monitor Out can use only
listenable
channels.
File Recorder records only source channels.
Source
MPX
MPX
Compensation
Delay
Phase Linear
Reference
Stereo Decoder
Left
De-mod
Right
De-mod
De-emphasis
Left
De-
emph
Right
De-
emph
Source
Listenable
Listenable
54 KHz
Phase Linear
Low Pass Filter
No
SCAs
18950-19050 Hz
Phase Linear
Band Stop Filter
No
Pilot
18950-19050 Hz
Phase Linear
Band Pass Filter
Pilot
Only
38k
subcarrier decoded to
baseband with Pilot 90
degrees out of phase
Quadrature
57k
PLL
+ Demodulator
RDS
