MONITOR OUTPUT MENU
AM Patch Points
You can feed each of the three Monitor Outputs audio from various points within the AM Processing core.
♦ The I/O menu lets you listen to Program Input, HD Output, AM Output or Test Input.
♦ The Undo menu lets you listen to the audio Pre-Declipper, and Post-Declipper, and after the audio has left Undo
♦ The Undo Expanders lets you listen to the audio of each individual Undo band before it enters the De-clipper and
multiband expander (Pre), and after it leaves the De-clipper and multiband expander (Post). The available number of
bands is determined by the current processing preset.
♦ The Miscellaneous menu lets you listen to the audio Pre-Final stage, at the Insert Return, and at the Insert Null.
♦ The Physical Inputs menu allows you to monitor any of the rear panel input points, including Main Digital, AES
Reference, Aux Digital, and Analog
♦ The Livewire Inputs menu allows you to monitor any of the 8 Livewire inputs (requires MKII platform update)
♦ The Sidechains menu allows you to monitor the audio passing through the Input AGC, Wideband AGC 1, Wideband
AGC 2, and Wideband AGC 3 sidechains, as well as the actual output audio from each of those stages.
♦ The Multiband menu allows you to individually monitor the audio in each band of the multiband AGC.
Studio Processing Patch Points

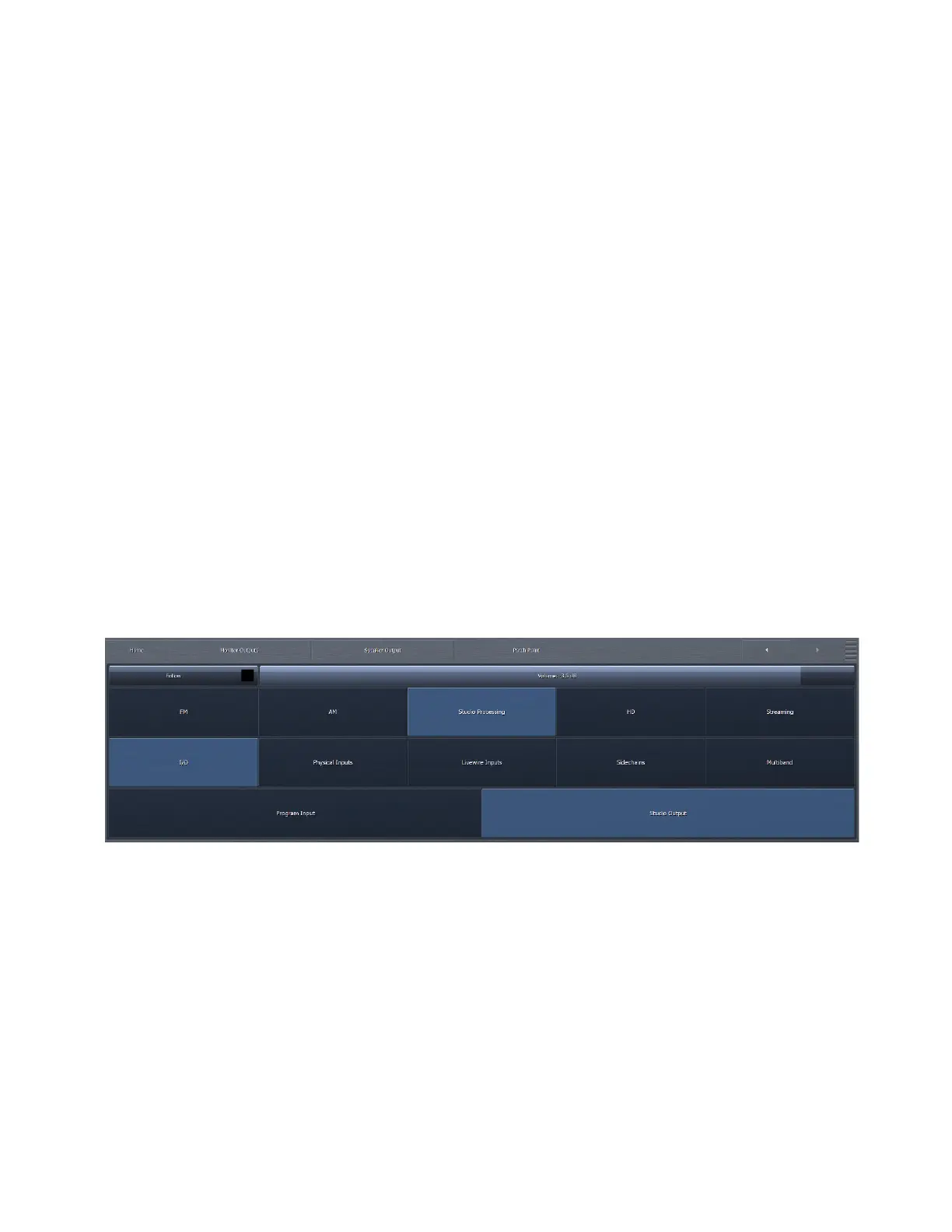

You can feed each of the three Monitor Outputs audio from various points within the Studio Processing core.
♦ The I/O menu allows you to listen to the Program Input or Studio Output.
♦ The Physical Inputs menu allows you to monitor any of the rear panel input points, including Main Digital, AES
Reference, Aux Digital, and Analog.
♦ The Livewire Inputs menu allows you to monitor any of the 8 Livewire inputs (requires MKII platform update)
♦ The Sidechains menu allows you to monitor the audio passing through the Input AGC, Wideband AGC 1, Wideband
AGC 2, and Wideband AGC 3 sidechains, as well as the actual output audio from each of those stages.
♦ The Multiband menu allows you to individually monitor the audio in each band of the multiband AGC.
