SYSTEM MENU

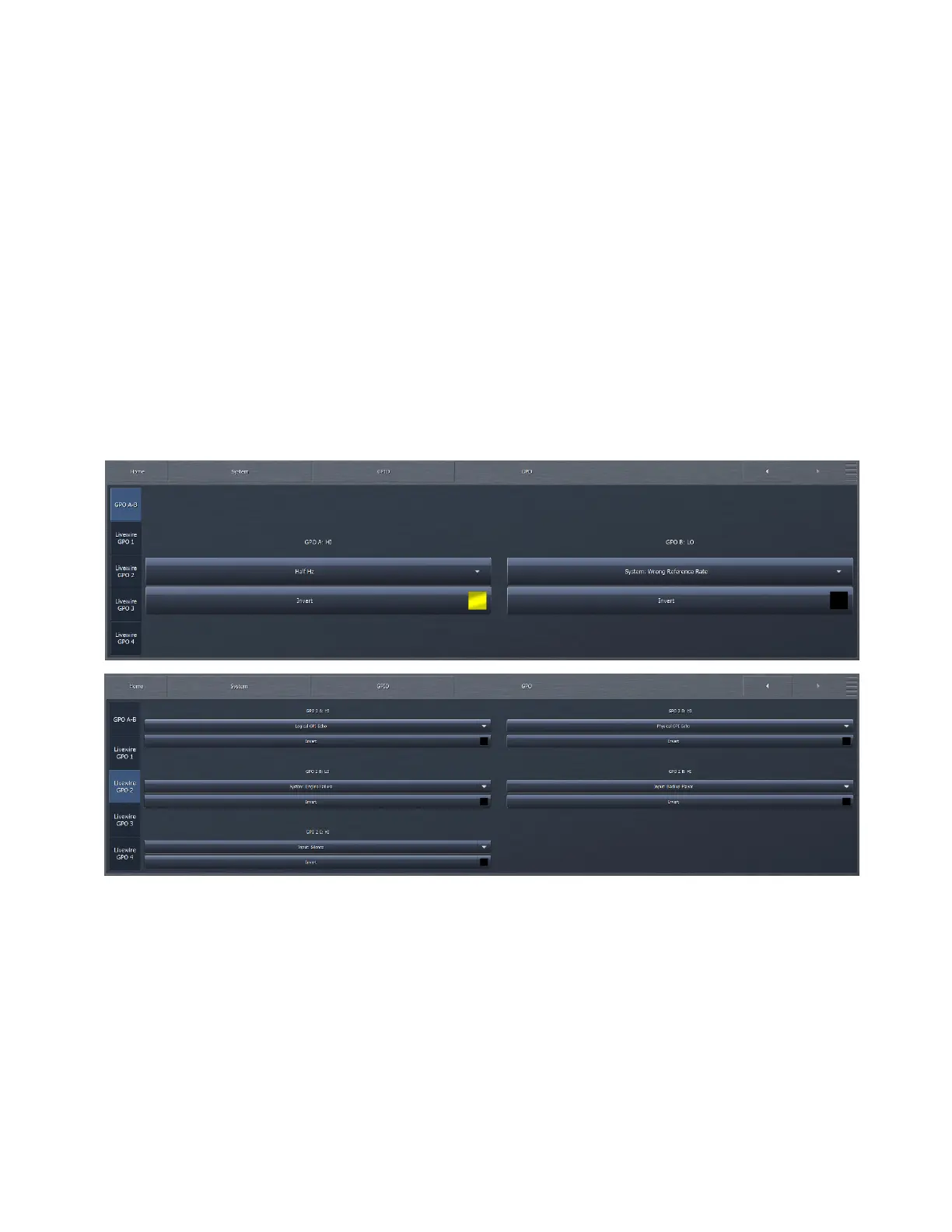

Livewire GPI Banks 1-4
Four banks of 5 Livewire GPI’P are available in the Omnia.9 MKII platform, providing a total of 20 IP based closure inputs.
Axia users will be well versed in using IP based contact closures which mimic those available on the units hardware GPIO pins.
The are GPIO pins pins the units hardware GPIO pinses s!d GPI port of an xNode or other Livewire device used for remote GPI
input. Once you enable one of the GPI’s (labeled A –E for each bank) the drop down lists for LO vs HI will be populated with
available values. GPI actions are momentary, but you can set them to Latch or Invert, by selecting the control of the same name.
GPO Function A-B / and Livewire GPO 1 – 4
Similar to setting the GPI functions, the GPO functions are set through the GPO and Livewire GPO menus. There 2 physical
GPO’s (A&B). Livewire capability expands this to 20 IP based GPO’s: four banks of 5 GPO closures.
Drop down menus allow you to select events or states to trigger outputs.
