Omron CJ2 User Manual

3 Nomenclature and Functions
3-26
CJ2 CPU Unit Hardware User’s Manual

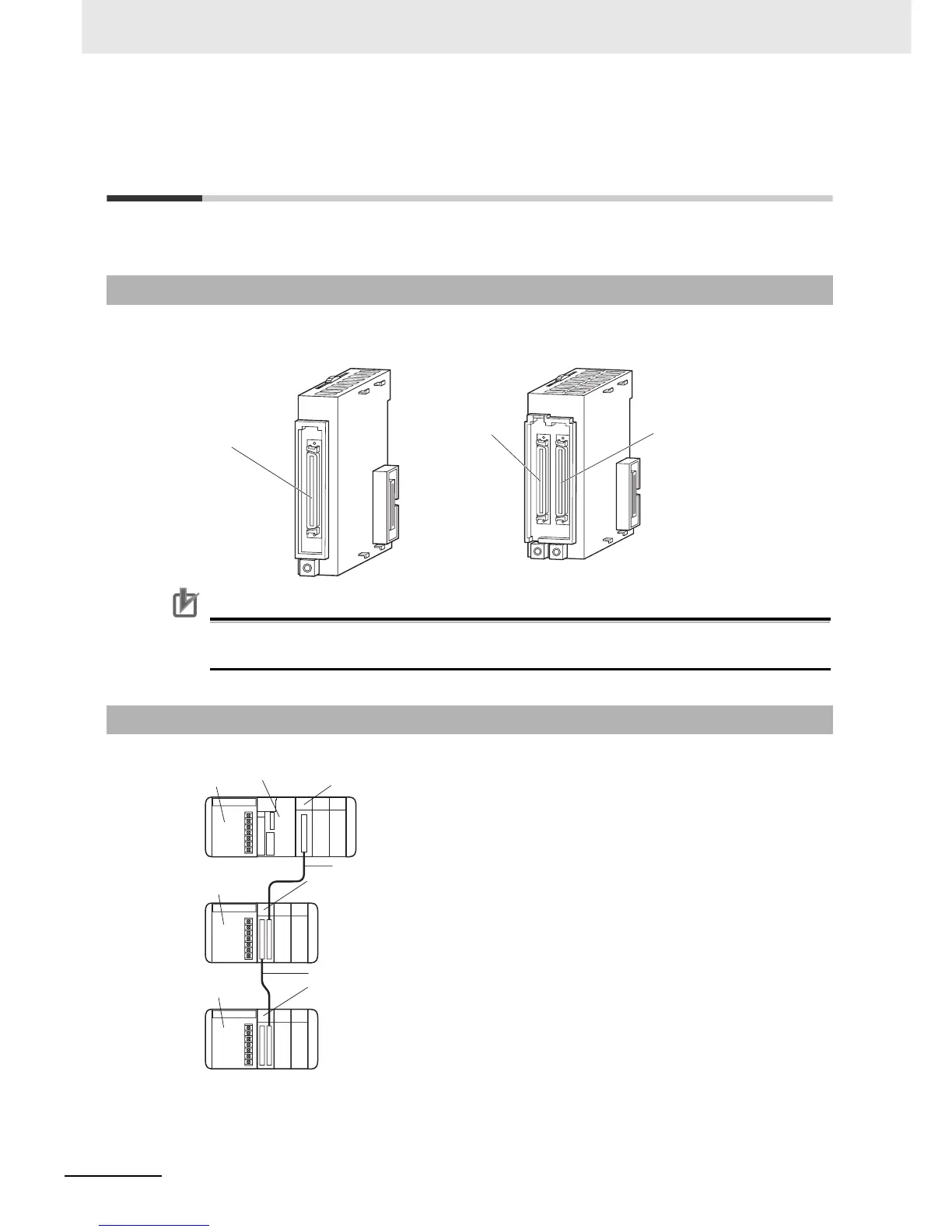

3-5 I/O Control Units and I/O Interface
Units
An I/O Control Unit and I/O Interface Units are used to connect Expansion Racks to expand the system.
Precautions for Correct UsePrecautions for Correct Use
Attached the enclosed cover to the I/O Connecting Cable connector on the I/O Interface Unit
when it is not being used to protect it from dust.
3-5-1 Component Names
3-5-2 System Configuration
The I/O Control Unit is connected directly to the
CJ2 CPU Unit. If it is not immediately to the
right of the CPU Unit, correct operation may not
be possible.
The I/O Interface Unit is connected directly to
the Power Supply Unit. If it is not immediately to
the right of the Power Supply Unit, correct oper-
ation may not be possible.
TUO
1
01
CI
TUO
IN
II101
CJ1W-II101
I/O Interface Unit
CJ1W-IC101
I/O Control Unit
Output connector for
I/O Connecting Cable
Output connector for
I/O Connecting Cable
Output connector for
I/O Connecting Cable
Power
Supply Unit
Power
Supply Unit
Power
Supply Unit
CPU Unit
CPU Rack
Expansion Rack
CJ1W-IC101
I/O Control Unit
CJ1W-II101
I/O Interface Unit
I/O Connecting Cable
I/O Connecting Cable
CJ1W-II101
I/O Interface Unit

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
