Omron CJ2 User Manual

A-107
Appendices
CJ2 CPU Unit Hardware User’s Manual
A-4 Connecting to the RS-232C Serial Port on the CPU Unit
App

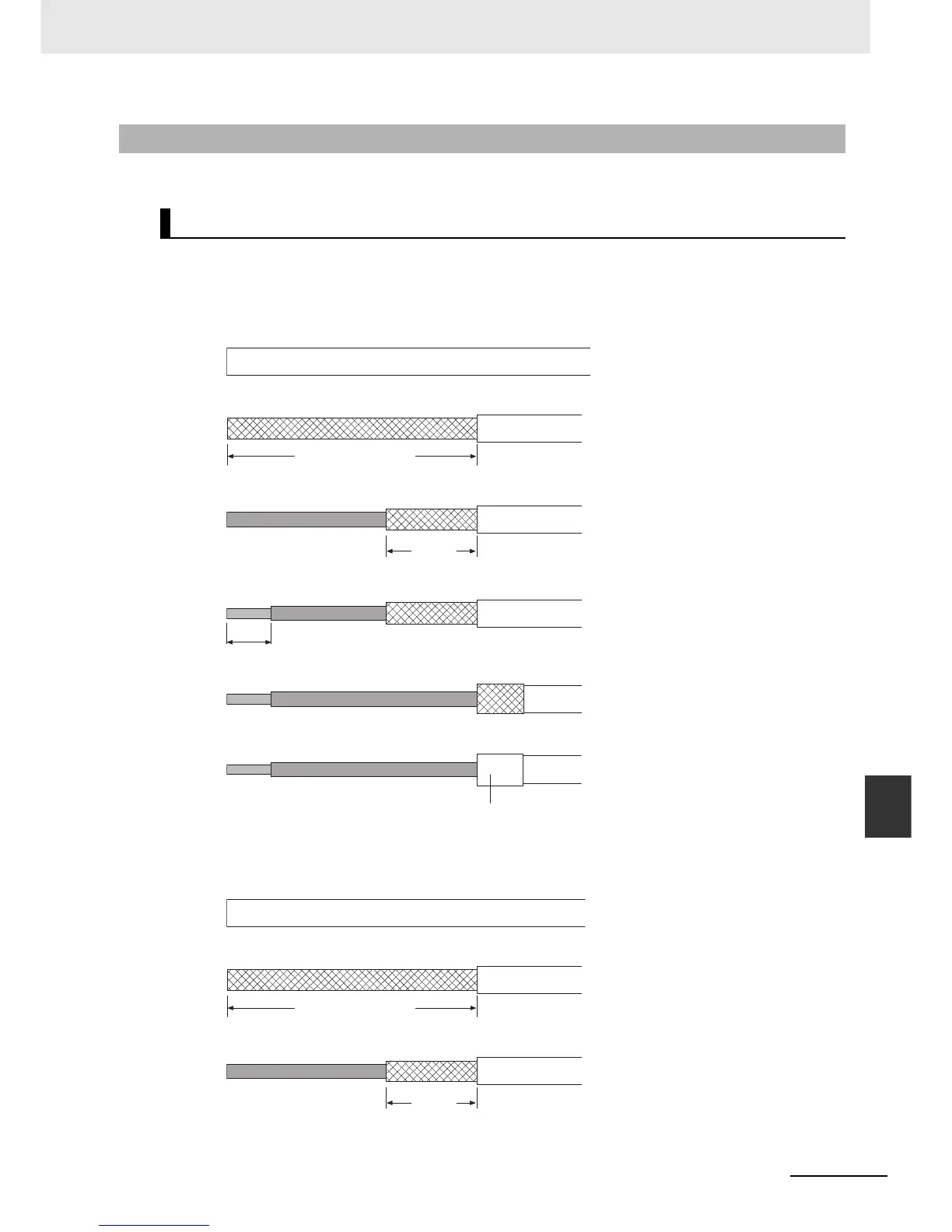

A-4-5 Wiring Connectors
Use the following procedures to wire connectors.
Lengths for steps in the procedure are provided in the diagrams.
z Connecting the Shield Line to the Hood (FG)
1. Cut the cable to the required length, leaving leeway for wiring and laying the cables.
2. Use a razor blade to cut away the sheath, being careful not to damage the braiding.
3. Use scissors to cut away all but 10 mm of the exposed braiding.
4. Use wire strippers to remove the insulation from the end of each wire.
5. Fold the braiding back over the end of the sheath.
6. Wrap aluminum foil tape over the top of the braiding for one and a half turns.
z Not Connecting the Shield to the Hood (FG)
1. Cut the cable to the required length, leaving leeway for wiring and laying the cables.
2. Use a razor blade to cut away the sheath, being careful not to damage the braiding.
3. Use scissors to cut away the exposed braiding.
A-4-5 Wiring Connectors
Preparing the Cable
40 mm (RS-232C)
10 mm
5 mm
Aluminum foil tape
40 mm (RS-232C)
10 mm

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
