Omron CJ2 User Manual

3-7
3 Nomenclature and Functions
CJ2 CPU Unit Hardware User’s Manual
3-1 CPU Units
3

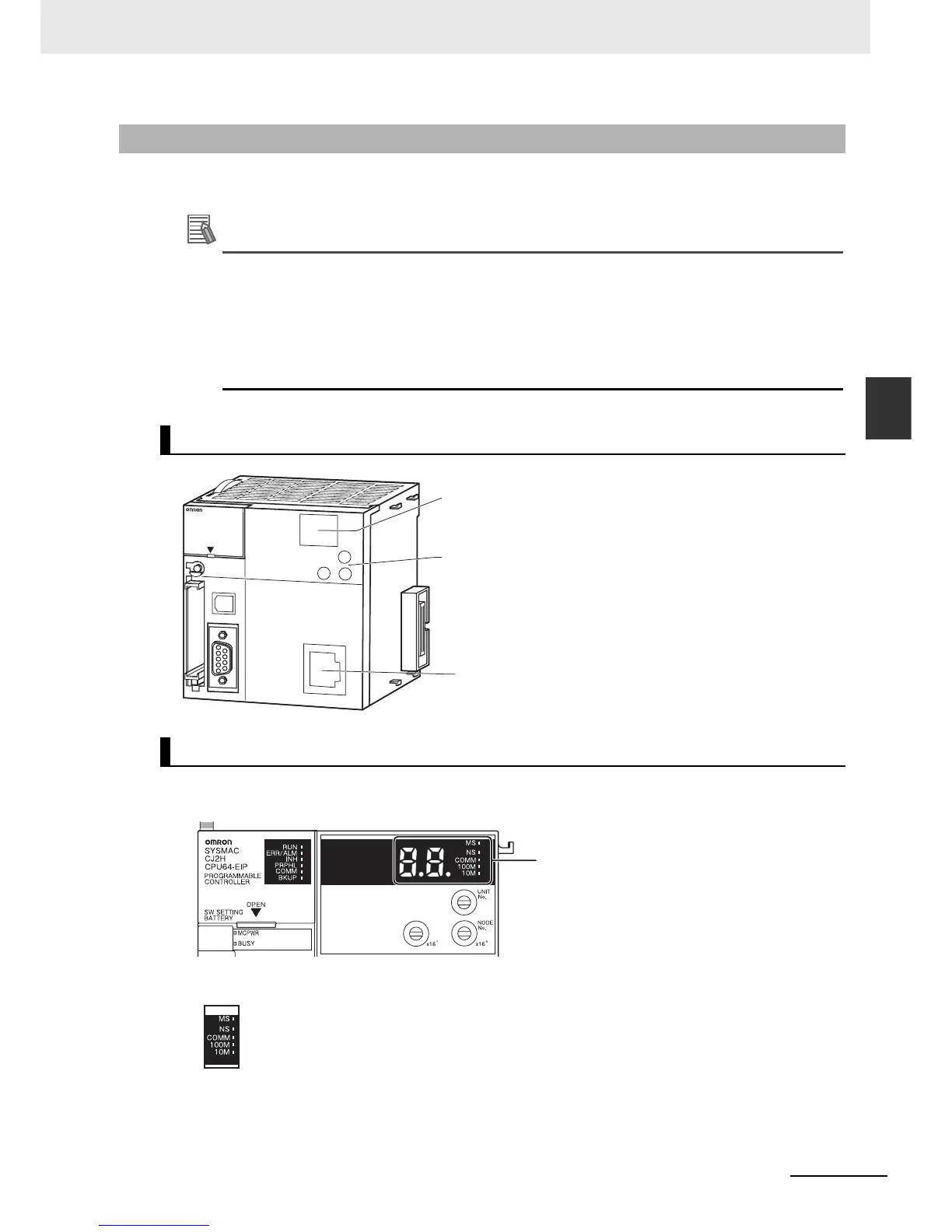

3-1-2 Built-in EtherNet/IP Section
This section describes the components related to the EtherNet/IP port section that is built into the
CJ2H-CPU@@-EIP.
Additional Information
The built-in EtherNet/IP port provides the same performance and functions as a CJ1W-EIP21
EtherNet/IP Unit. Set the unit number and node address with the rotary switches on the front
panel of the CPU Unit, and set the communications parameters with the Edit Parameters menu
command for the Special I/O Unit. For details on the Edit Parameters, refer to 8-2 Setting CPU
Bus Units and Special I/O Units in the CJ2 CPU Unit Software User’s Manual (Cat. No. W473).
For details on specifications and settings for the built-in EtherNet/IP port, refer to the CS/CJ
Series EtherNet/IP Units Operation Manual (Cat. No. W465).
With a CJ2 CPU Unit, Ethernet node status and Ethernet network status can be monitored by checking
the display and indicators at the upper right of the front of the CPU Unit.
z Status Indicators: MS, NS, COMM, 100M, and 10M
The MS (Module Status) indicator indicates the status of the built-in EtherNet/IP port itself and the
NS (Network Status) indicator indicates the status of the network.
The COMM, 100M, and 10M indicators indicate the status of Ethernet communications.
3-1-2 Built-in EtherNet/IP Section
Nomenclature and Functions
Display and Indicators for Built-in EtherNet/IP Port
Display and indicators
for built-in EtherNet/IP port
Rotary switches
Built-in EtherNet/IP port
(Refer to 5-3-5 Connecting I/O Devices.)
LA
RE
H
FI
R
E
P
N
S
M
S
COMM
10
M
1
0
0M
CO
NTROLLER
CPU64-EIP
CJ2H
SYSMAC
PRO
GRAM
M
ABLE
PORT
OPEN
BU
S
Y
MC
P
W
R
Seven-segment display and indicators
for built-in EtherNet/IP port

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
