Omron CJ2 User Manual

4 Support Software
4-6
CJ2 CPU Unit Hardware User’s Manual
4-2 Connection Methods
The CJ2 CPU Unit can be connected by USB cable, Ethernet twisted-pair cable, or RS-232C cable to a
personal computer with CX-One Support Software (e.g., CX-Programmer) installed.
Using commercially available USB cable, connect CX-One Support Software via a standard peripheral
(USB) port at the personal computer.
*1 Commercially available USB cable: 5 m max., for USB 1.1 or 2.0.
Use the following cable to connect the CJ2 CPU Unit to the computer running the Support Software.
In order to connect the PLC to a personal computer by USB, a USB driver must be installed in the per-
sonal computer. The USB driver for USB connections is automatically stored in the following directory in
the personal computer when CX-One is installed:
C:\Program Files\OMRON\CX-Server\USB\Win2000_XP\inf
When the personal computer is connected to the PLC by USB cable, the personal computer automati-
cally recognizes the device and the USB driver installation is started. For details on how to install the
USB driver, refer to A-5 Installing the USB Driver.
The method for connecting the PLC to the personal computer is set using the CX-Programmer. For
details on using the CX-Programmer to set the connection method, refer to the CJ2 CPU Unit Software
User’s Manual (Cat. No. W473).

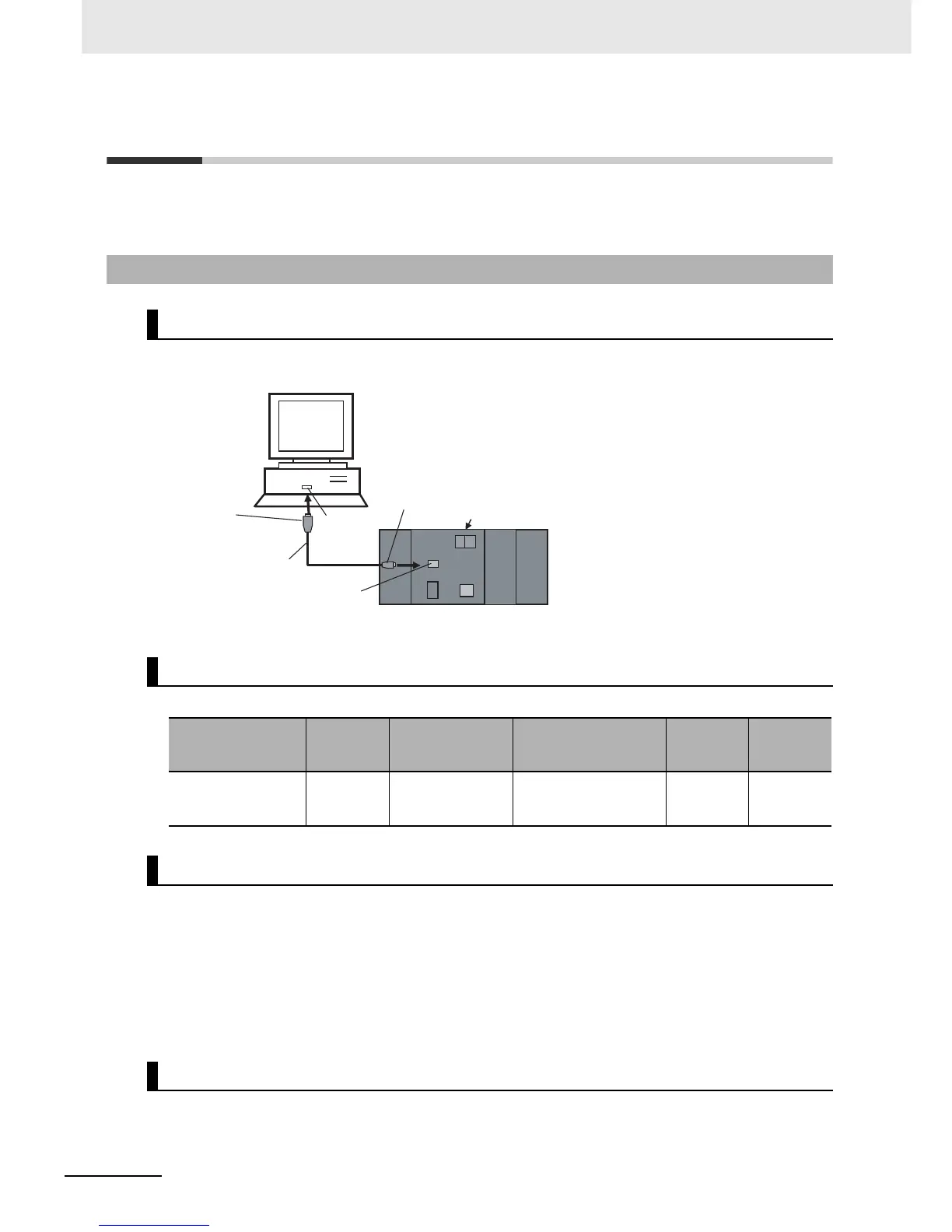

4-2-1 Connecting by USB
Connection Method
Connecting Cable
Port at Unit
Port at
computer
Network type
(communications
mode)
Model Length Remarks
Peripheral (USB) port
(Conforms to USB
2.0, B connector)
USB port 12 Mbps, USB 2.0 Commercially available
USB cable (A connector
- B connector)
5 m ---
Before Connecting
CX-Programmer Settings
CX-One (e.g., CX-Programmer)
Commercially available
USB cable
*1
Peripheral (USB) port
(conforming to USB 2.0, B connector)
A connector
USB port
B connector
CJ2 CPU Unit

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
