Omron CJ2 User Manual

5 Installation
5-6
CJ2 CPU Unit Hardware User’s Manual

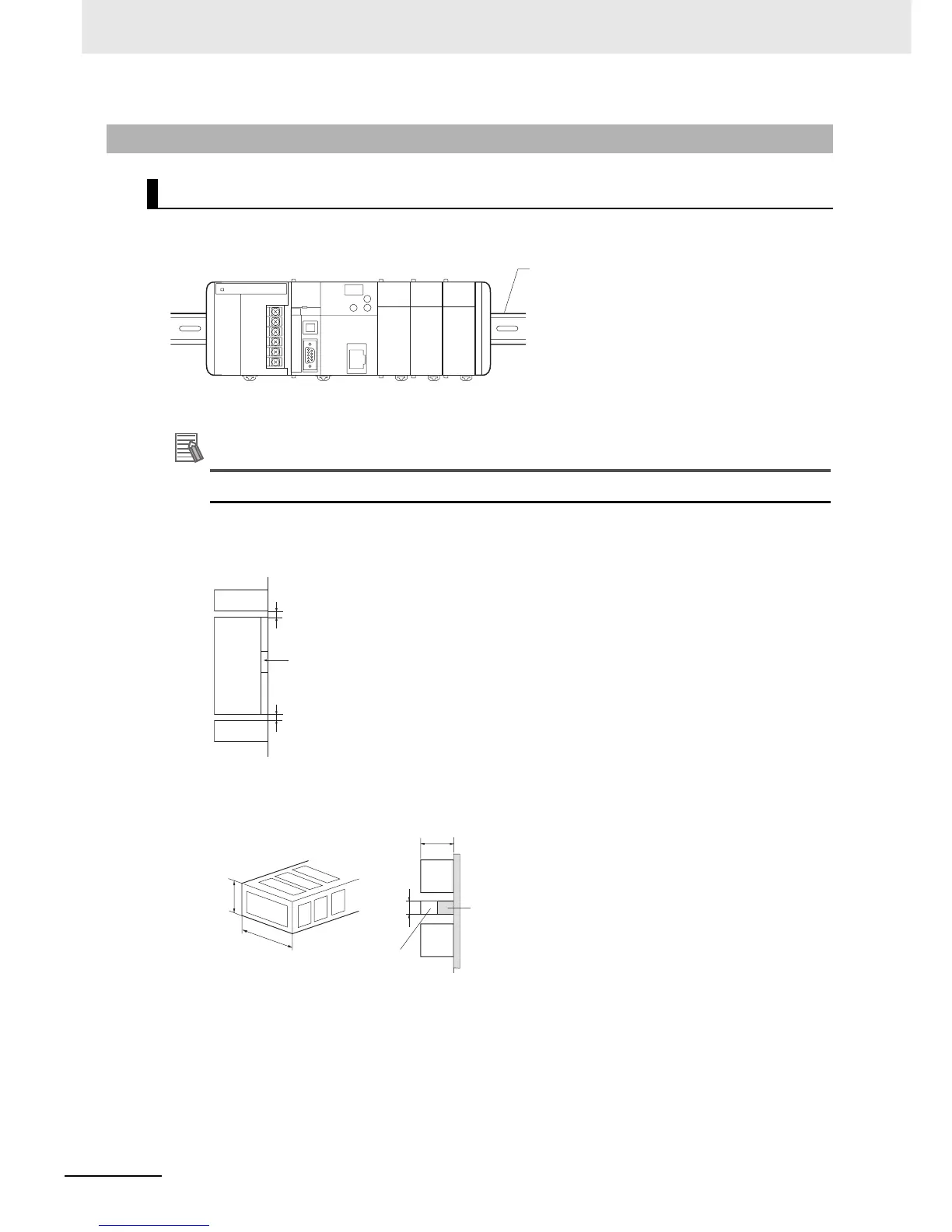

A CJ-series PLC must be mounted inside a control panel on DIN Track. Normally the CPU Rack is
installed on top and the Expansion Racks under it.
• Consider the width of wiring ducts, wiring, ventilation, and Unit replacement when determining the
space between Racks.
Additional Information
A CJ-series PLC must be mounted on DIN Track. It cannot be mounted with screws.
• Whenever possible, route I/O wiring through wiring ducts or raceways. Install the duct so that it is
easy to fish wire from the I/O Units through the duct. It is handy to have the duct at the same
height as the Racks.
z Wiring Ducts
5-2-2 Installation in a Control Panel
Control Panel Installation Dimensions
DIN Track
Duct
Duct
Unit
20 mm min.
20 mm min.
DIN Track
30 mm
40 mm
30 mm
CPU
Rack
Mounting
bracket
Duct
81.6 to 89 mm
Expan-
sion
Rack

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
