Omron CJ2 User Manual

7-5
7 Inspection and Maintenance
CJ2 CPU Unit Hardware User’s Manual

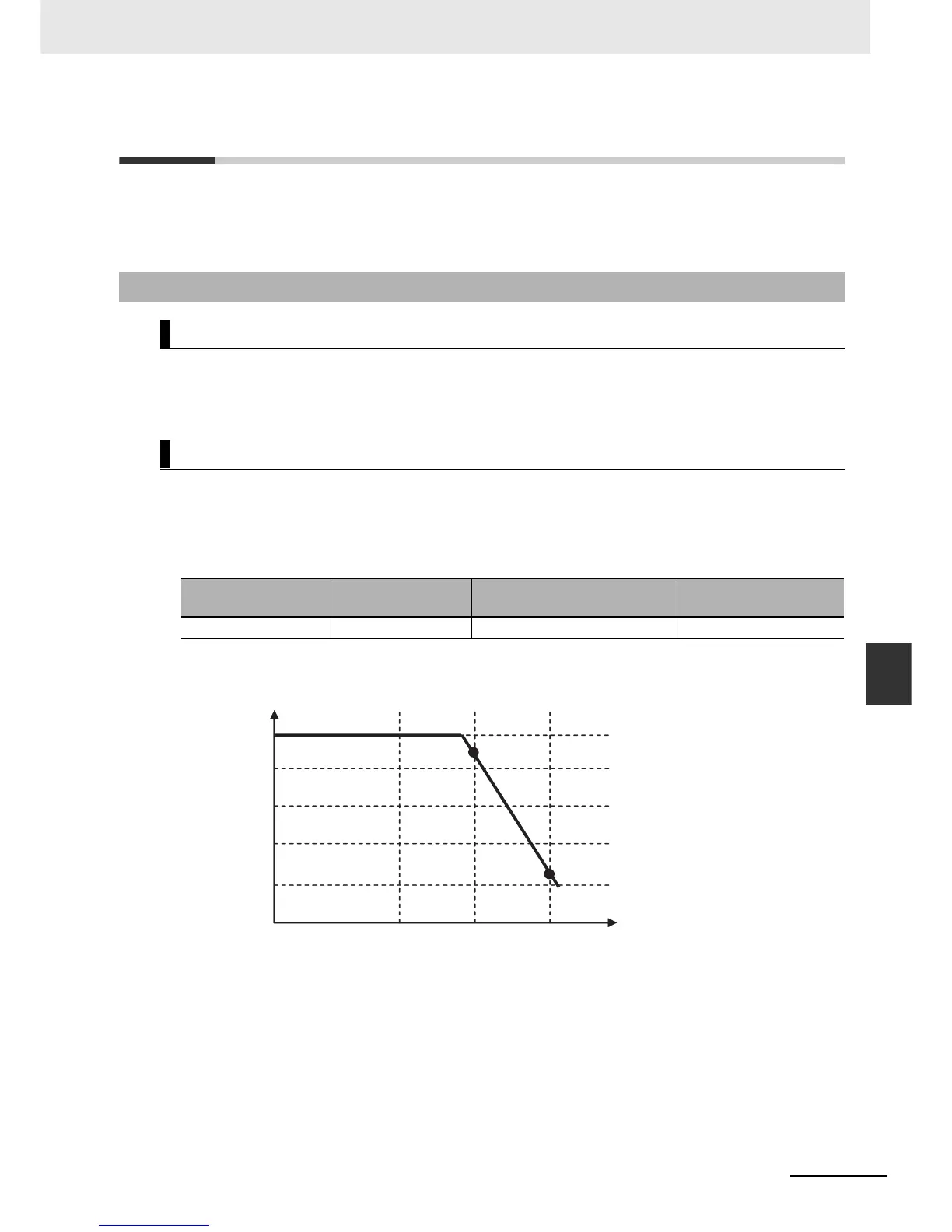

7-2 Replacing the Battery
7
7-2-1 Battery Replacement
7-2 Replacing the Battery
The Battery in the CJ-series CPU Unit must be replaced periodically as preventative maintenance. (The
Battery is a backup power supply for the CPU Unit's internal clock and RAM). This section describes
how to replace the Battery.
The Battery maintains the CPU Unit internal clock and the I/O memory data held in RAM while the main
power supply is OFF. If the Battery is not installed or Battery voltage drops too low, the internal clock will
stop and the I/O memory data that is held will be lost when the main power supply goes OFF.
At 25°C, the maximum service life for batteries is five years whether or not power is supplied to the CPU
Unit while the battery is installed. The battery's lifetime will be shorter when it is used at higher temper-
atures and when power is not supplied to the CPU Unit for long periods.
The following table shows the approximate minimum lifetimes and typical lifetimes for the backup bat-
tery (total time with power not supplied).
*1 The minimum lifetime is the memory backup time at an ambient temperature of 55°C. The typical lifetime is the
memory backup time at an ambient temperature of 25°C.
7-2-1 Battery Replacement
Purpose of the Battery
Battery Service Life and Replacement Period
Model
Approx. maximum
lifetime
Approx. minimum lifetime
*1
Typical lifetime
*1
CJ2H-CPU@@-EIP 5 years 10,000 hours (approx. 1.1 years) 43,000 hours (5 years)
Memory Backup Time
5 yr
4 yr
3 yr
2 yr
1 yr
Ambient temperature
This graphic is for reference only.
25
°
C
40
°
C
55
°
C
1.1 yr
4.4 yr

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
