Omron CJ2 User Manual

4 Support Software
4-8
CJ2 CPU Unit Hardware User’s Manual
Using commercially available RS-232C cable, connect the CX-One Support Software (e.g., CX-Pro-
grammer) via a standard serial port at the personal computer.
The network type must be set to the Toolbus. A Host Link connection cannot be used.
Additional Information
Connecting to the PLC by EtherNet/IP via USB or RS-232C
The Support Software can be directly connected by USB or RS-232C to one CJ2 CPU Unit and
access other CPU Units on the EtherNet/IP network via the built-in EtherNet/IP ports on the CJ2
CPU Units. For details, refer to the CJ2 CPU Unit Software User’s Manual (Cat. No. W473).
Use the following cable to connect the CJ2 CPU Unit to the computer running the Support Software.
*1 Connection is not possible from CX-One Support Software using the SYSMAC WAY (Host Link) protocol.

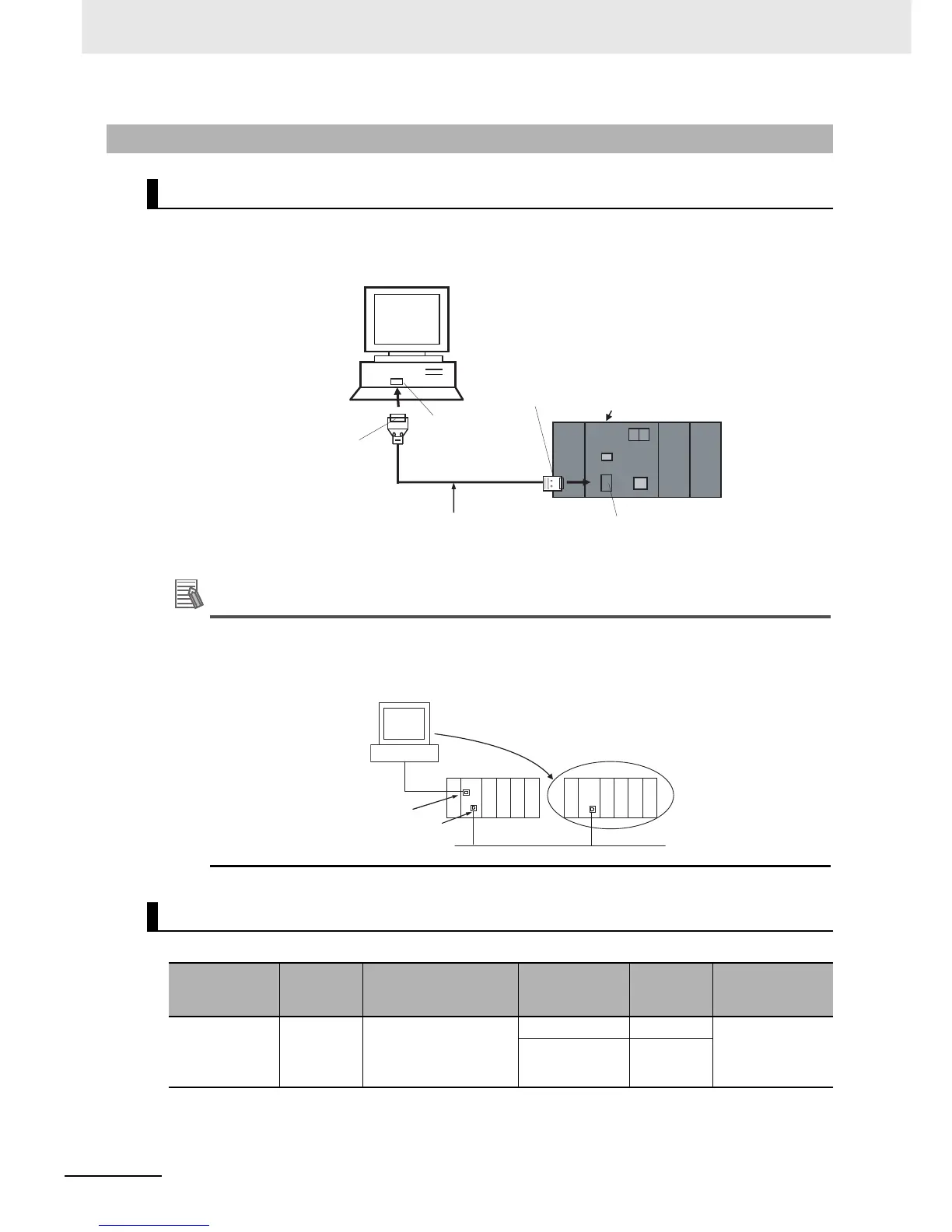

4-2-2 Connecting by RS-232C
Connection Method
Connecting Cable
Port at Unit
Port at
computer
Network type
(communications
mode)
Model Length Remarks
Serial port
(RS-232C)
(D-sub, 9-pin,
female)
D-sub,
9-pin, male
Serial communications
(Toolbus only
*1
)
XW2Z-200S-CV 2 m Use a static-resis-
tant connector.
XW2Z-500S-CV 5 m
D-sub connector
(9-pin female)
CX-One (e.g., CX-Programmer)
CJ2 CPU Unit
D-sub connector
(9-pin male)
Recommended cable:
XW2Z-200S-CV/500S-CV
D-sub connector
(9-pin male)
Serial port
(RS-232C),
D-sub connector
(9-pin female)
USB
USB
Personal computer
Built-in EtherNet/IP port
EtherNet/IP
CJ2
Access is possible.
CJ2

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
