1-1 Overview of CJ2 CPU Units
1
1-1-2 CJ2 CPU Unit Features
z High-speed Processing
High-speed processing times of 0.016 µs for basic instructions, 0.048 µs for special instructions, and
0.99 µs for immediate refreshing, are now possible.
z Large Program Capacity
The CJ2 CPU Units provide a large program capacity of up to 400 Ksteps.
z Large Data Memory Capacity
The CJ2 CPU Units provide a large EM Area capacity of up to 800 Kwords (25 banks).
z Up to 128 Cyclic Tasks
The user program can be divided into up to 128 tasks. Using smaller task programs makes it easier
to structure programs and contributes to shorter cycle times.
The CJ2 CPU Units provide as standard equipment a built-in EtherNet/IP port that supports the same
FINS Ethernet functions as an Ethernet Unit (including features such as a FINS server and time coordi-
nation) as well as the EtherNet/IP open network.
z High-speed, High-capacity Data Links with User-set Refresh Cycles
The CJ2 CPU Units provide high-speed, high-capacity data links, and refresh cycles can be set indi-
vidually for each data link area.
In addition, using the EtherNet/IP DataLink Tool makes it possible to set the data links using an inter-
face similar to that of the Controller Link automatic data link setup.

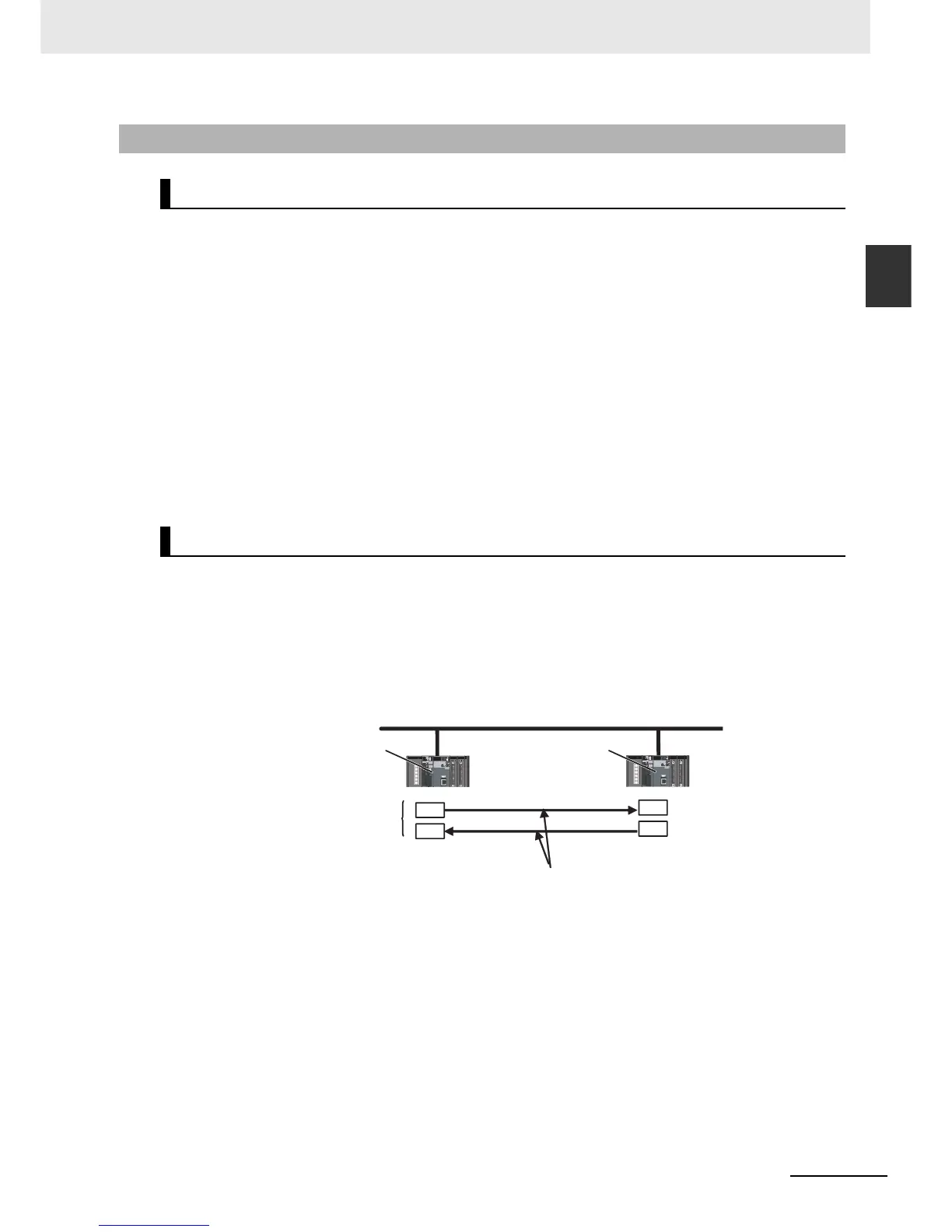

1-1-2 CJ2 CPU Unit Features
Fast, with Large Memory Capacity
Built-in EtherNet/IP Port
EtherNet/IP
High speed
The refresh cycle can be set individually for each area.
High capacity
CJ2 CPU Unit
CJ2 CPU Unit

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
